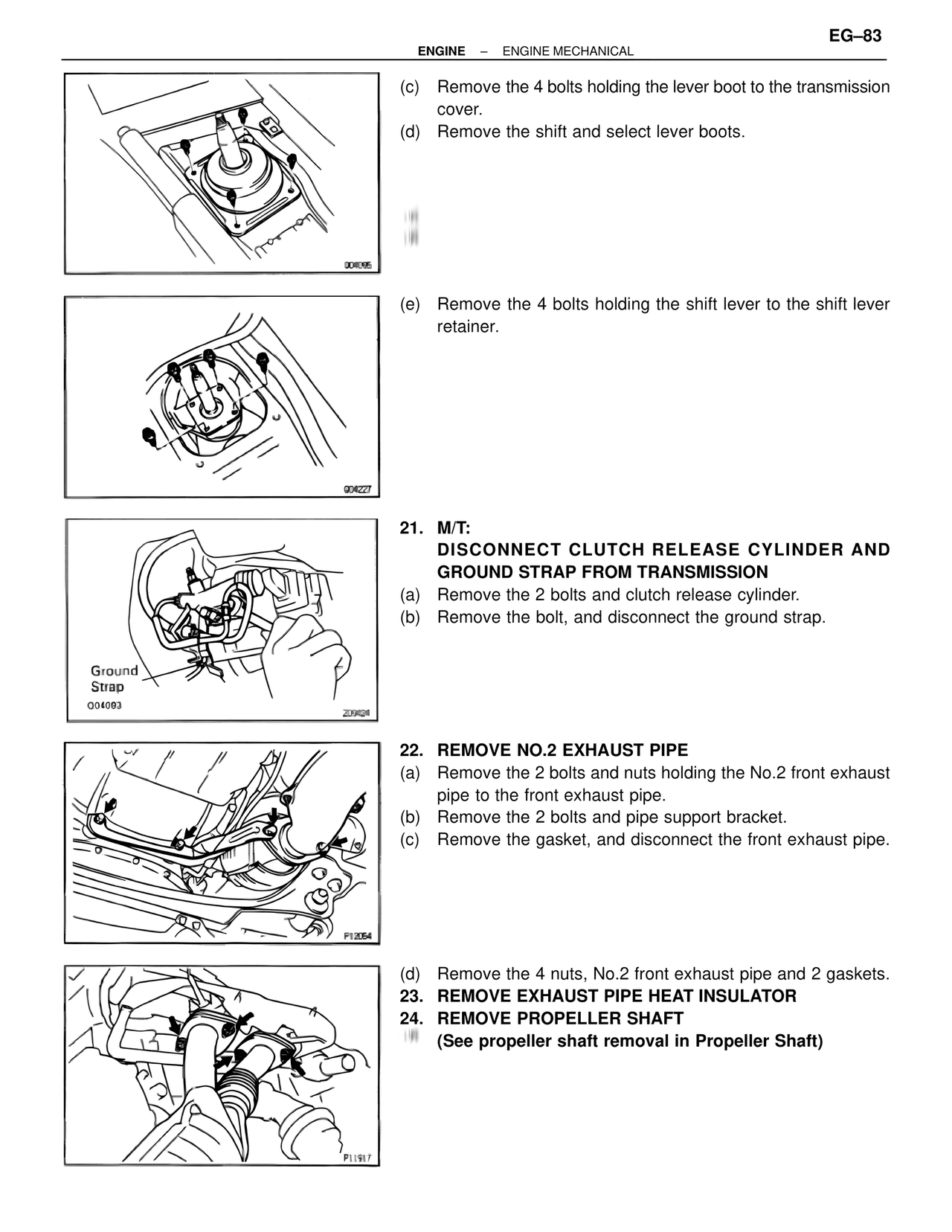

(c) Remove the 4 bolts holding the lever boot to the transmission cover. (d) Remove the shift and select lever boots. (e) Remove the 4 bolts holding the shift lever to the shift lever retainer. 21. M/T: DISCONNECT CLUTCH RELEASE CYLINDER AND GROUND STRAP FROM TRANSMISSION (a) Remove the 2 bolts and clutch release cylinder. (b) Remove the bolt, and disconnect the ground strap. Ground Strap Q04093 22. REMOVE NO.2 EXHAUST PIPE (a) Remove the 2 bolts and nuts holding the No.2 front exhaust pipe to the front exhaust pipe. (b) Remove the 2 bolts and pipe support bracket. (c) Remove the gasket, and disconnect the front exhaust pipe. (d) Remove the 4 nuts, No.2 front exhaust pipe and 2 gaskets. 23. REMOVE EXHAUST PIPE HEAT INSULATOR 24. REMOVE PROPELLER SHAFT (See propeller shaft removal in Propeller Shaft)
