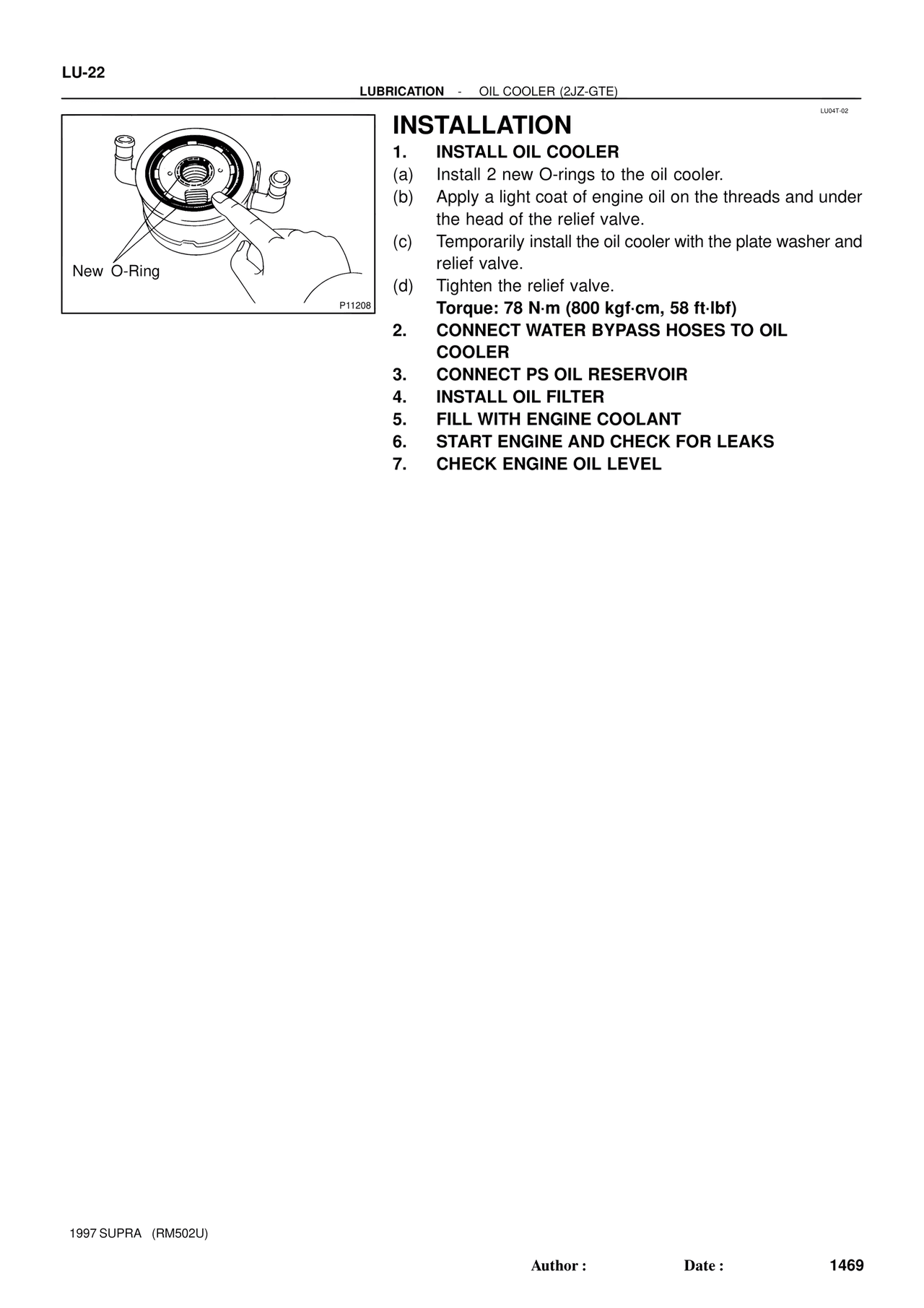

LU-22
LUBRICATION - OIL COOLER (2JZ-GTE)
LU04T-02
INSTALLATION
1. INSTALL OIL COOLER
(a) Install 2 new O-rings to the oil cooler.
(b) Apply a light coat of engine oil on the threads and under the head of the relief valve.
(c) Temporarily install the oil cooler with the plate washer and relief valve.
(d) Tighten the relief valve.
Torque: 78 N·m (800 kgf·cm, 58 ft·lbf)
2. CONNECT WATER BYPASS HOSES TO OIL COOLER
3. CONNECT PS OIL RESERVOIR
4. INSTALL OIL FILTER
5. FILL WITH ENGINE COOLANT
6. START ENGINE AND CHECK FOR LEAKS
7. CHECK ENGINE OIL LEVEL
New O-Ring
P11208
1997 SUPRA (RM502U)
Author : Date : 1469
