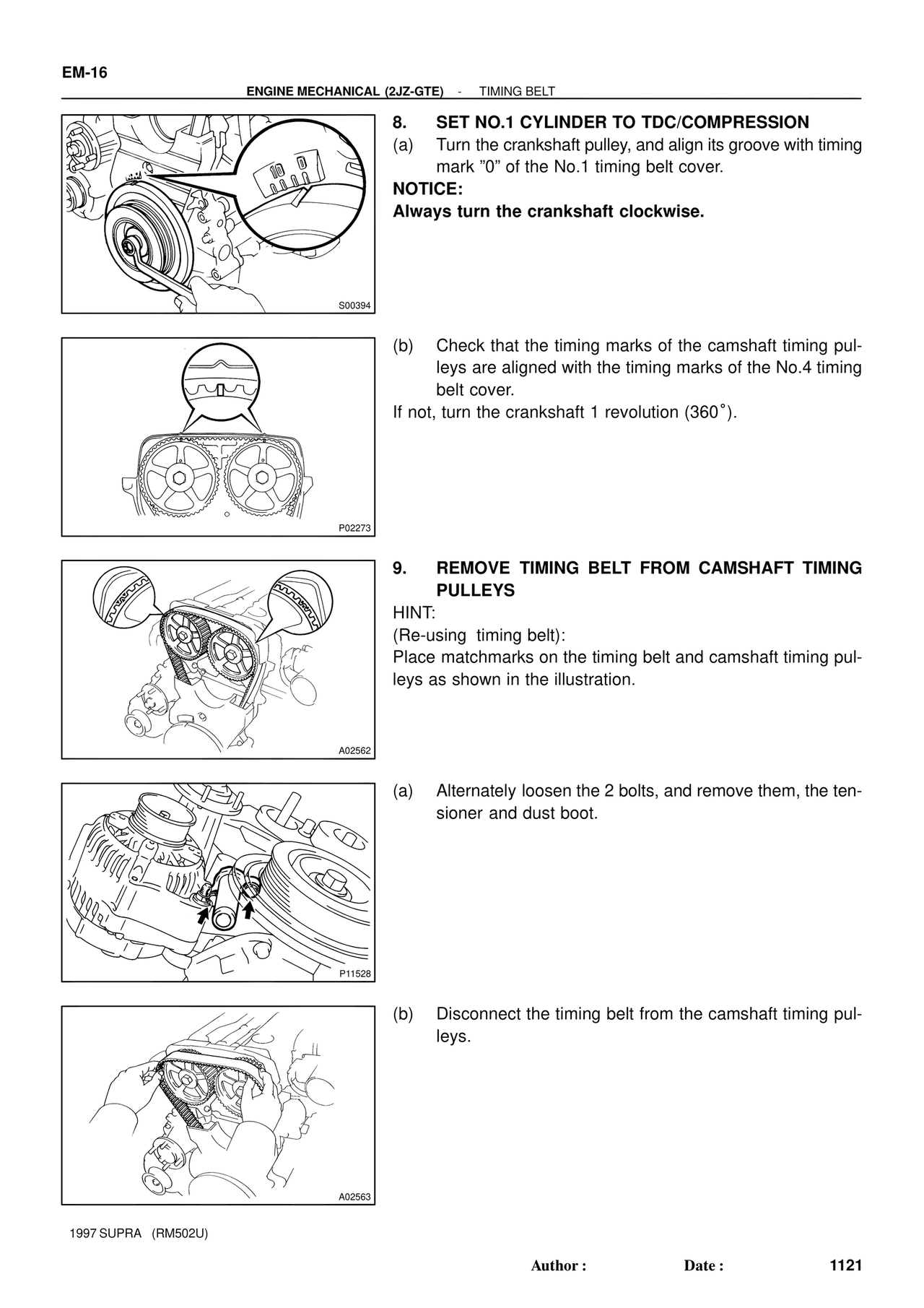

EM-16
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
S00394
8. SET NO.1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align its groove with timing
mark "0" of the No.1 timing belt cover.
NOTICE:
Always turn the crankshaft clockwise.
P02273
(b) Check that the timing marks of the camshaft timing pul-
leys are aligned with the timing marks of the No.4 timing
belt cover.
If not, turn the crankshaft 1 revolution (360˚).
A02562
9. REMOVE TIMING BELT FROM CAMSHAFT TIMING
PULLEYS
HINT:
(Re-using timing belt):
Place matchmarks on the timing belt and camshaft timing pul-
leys as shown in the illustration.
P11528
(a) Alternately loosen the 2 bolts, and remove them, the ten-
sioner and dust boot.
A02563
(b) Disconnect the timing belt from the camshaft timing pul-
leys.
1997 SUPRA (RM502U)
Author : Date : 1121
