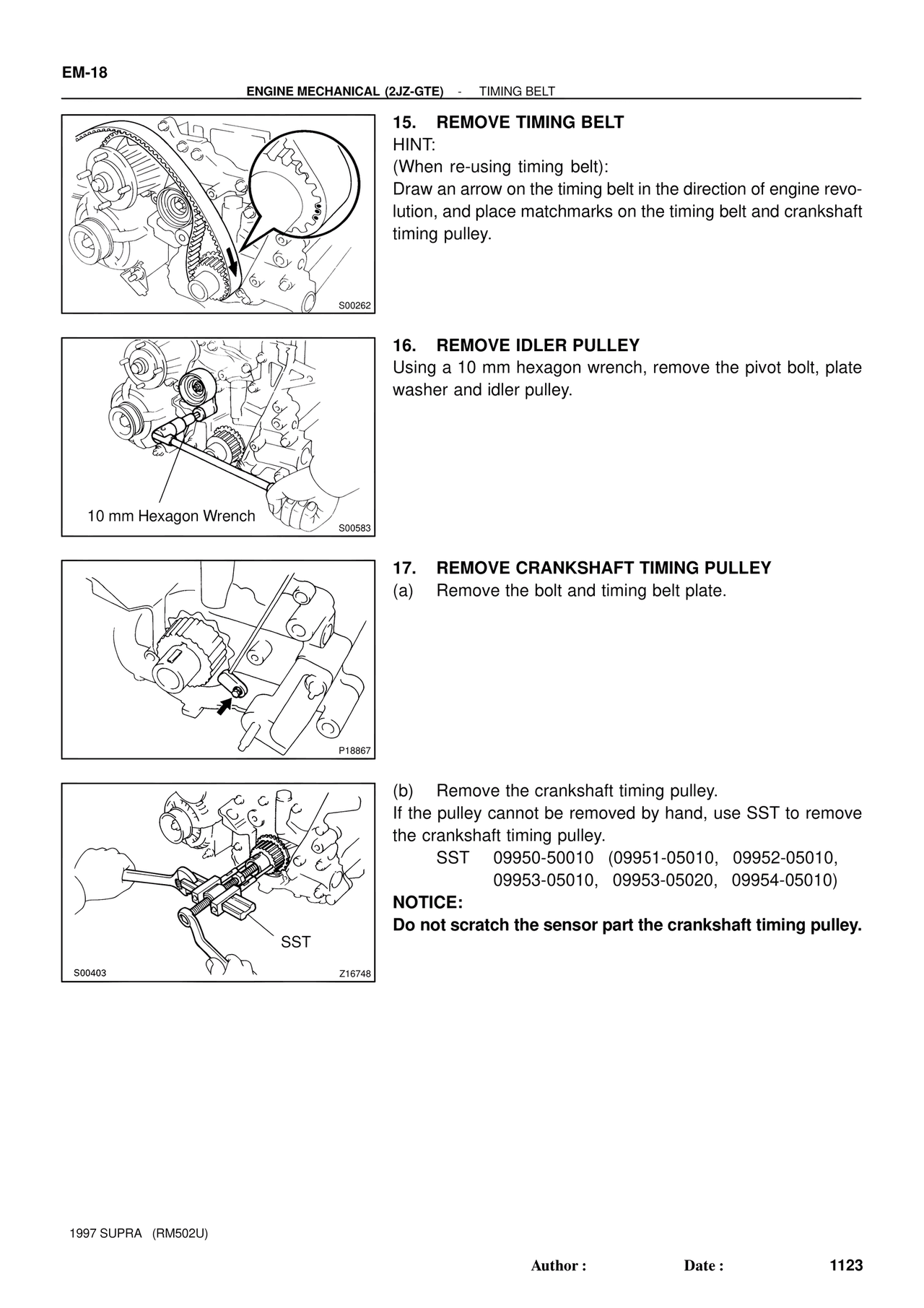

EMS/Engine Mechanical 1997 Supplement — Remove Timing Belt, page 117

EM-18
ENGINE MECHANICAL (2JZ-GTE)  -  TIMING BELT

15.  REMOVE TIMING BELT
HINT:
(When re-using timing belt):
Draw an arrow on the timing belt in the direction of engine revolution, and place matchmarks on the timing belt and crankshaft timing pulley.

S00262

16.  REMOVE IDLER PULLEY
Using a 10 mm hexagon wrench, remove the pivot bolt, plate washer and idler pulley.

10 mm Hexagon Wrench
S00583

17.  REMOVE CRANKSHAFT TIMING PULLEY
(a)  Remove the bolt and timing belt plate.

P18867

(b)  Remove the crankshaft timing pulley.
If the pulley cannot be removed by hand, use SST to remove the crankshaft timing pulley.
     SST  09950-50010  (09951-05010,  09952-05010,
               09953-05010,  09953-05020,  09954-05010)
NOTICE:
Do not scratch the sensor part the crankshaft timing pulley.

SST
S00403                                                          Z16748

1997 SUPRA  (RM502U)
