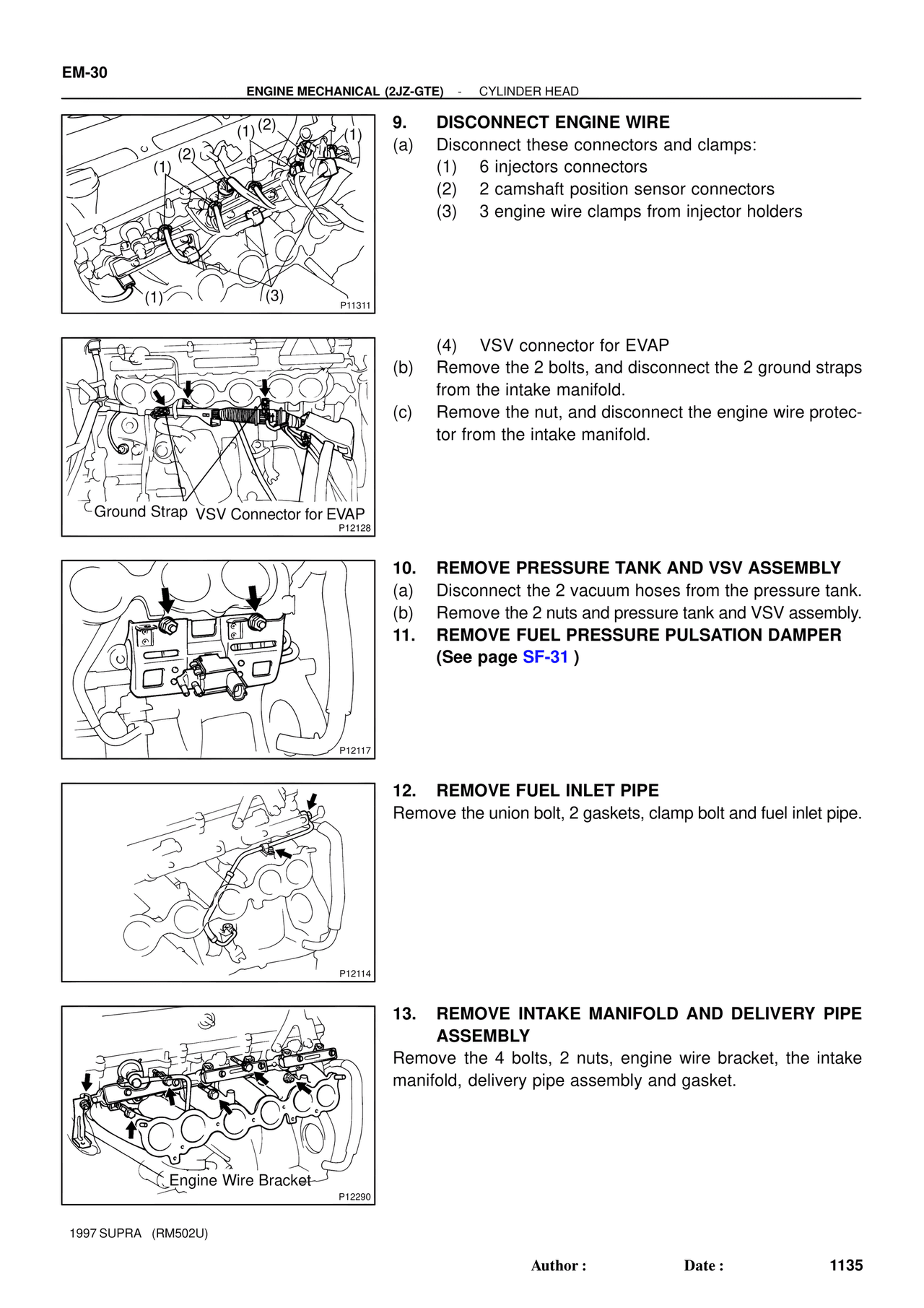

EM-30
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
P11311
(1) (2)
(2)
(1)
(1)
(3)
9. DISCONNECT ENGINE WIRE
(a) Disconnect these connectors and clamps:
(1) 6 injectors connectors
(2) 2 camshaft position sensor connectors
(3) 3 engine wire clamps from injector holders
(4) VSV connector for EVAP
(b) Remove the 2 bolts, and disconnect the 2 ground straps
from the intake manifold.
(c) Remove the nut, and disconnect the engine wire protec-
tor from the intake manifold.
Ground Strap VSV Connector for EVAP
P12128
P12117
10. REMOVE PRESSURE TANK AND VSV ASSEMBLY
(a) Disconnect the 2 vacuum hoses from the pressure tank.
(b) Remove the 2 nuts and pressure tank and VSV assembly.
11. REMOVE FUEL PRESSURE PULSATION DAMPER
(See page SF-31 )
P12114
12. REMOVE FUEL INLET PIPE
Remove the union bolt, 2 gaskets, clamp bolt and fuel inlet pipe.
Engine Wire Bracket
P12290
13. REMOVE INTAKE MANIFOLD AND DELIVERY PIPE
ASSEMBLY
Remove the 4 bolts, 2 nuts, engine wire bracket, the intake
manifold, delivery pipe assembly and gasket.
1997 SUPRA (RM502U)
Author : Date : 1135
