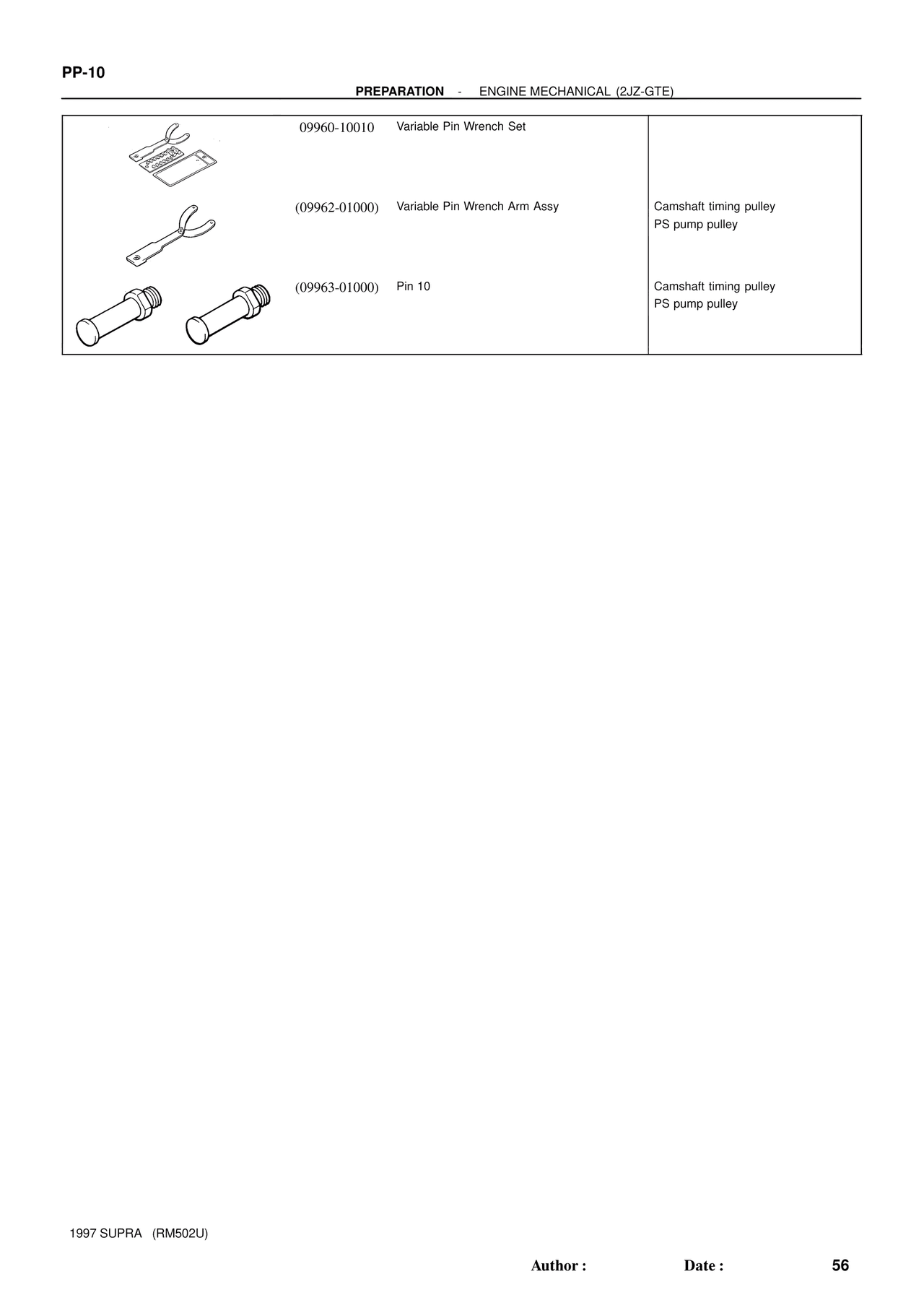

Engine Mechanical 1997 Supplement — MK4 Supra Engine Mechanical 1997 Supplement, page 126
100%
Page text (OCR transcript)
PP-10

PREPARATION  -  ENGINE MECHANICAL (2JZ-GTE)

09960-10010    Variable Pin Wrench Set

(09962-01000)    Variable Pin Wrench Arm Assy    Camshaft timing pulley
                                                  PS pump pulley

(09963-01000)    Pin 10                          Camshaft timing pulley
                                                  PS pump pulley

1997 SUPRA  (RM502U)

Author :          Date :          56
