EMS/Engine Mechanical 1997 Supplement, page 16

EM-44
ENGINE MECHANICAL (2JZ-GTE)  -  CYLINDER HEAD

Sharp
6 mm
Reamer

P02191  P02071                                Z02415

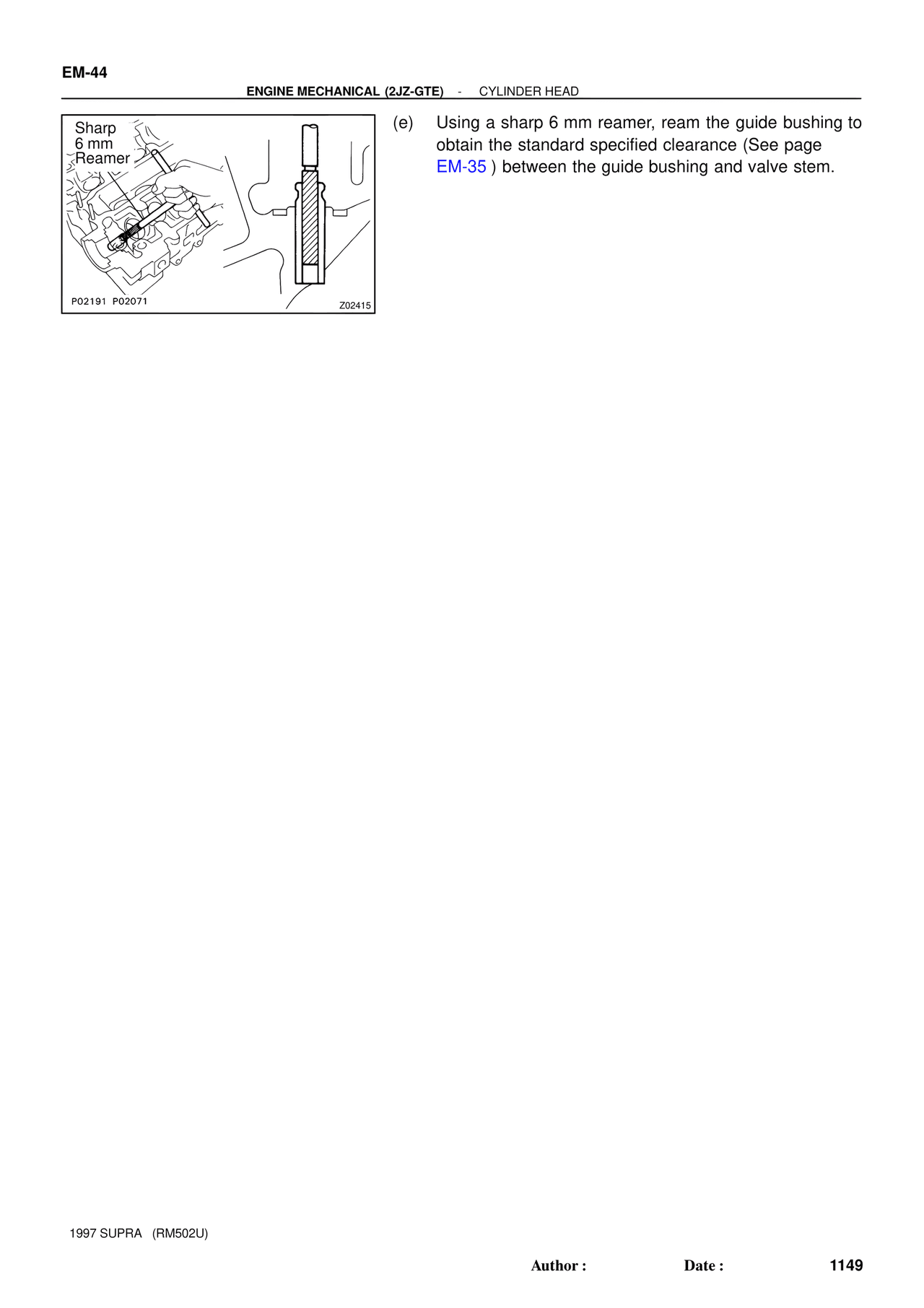

(e)    Using a sharp 6 mm reamer, ream the guide bushing to
       obtain the standard specified clearance (See page
       EM-35 ) between the guide bushing and valve stem.

1997 SUPRA  (RM502U)

Author :          Date :          1149
