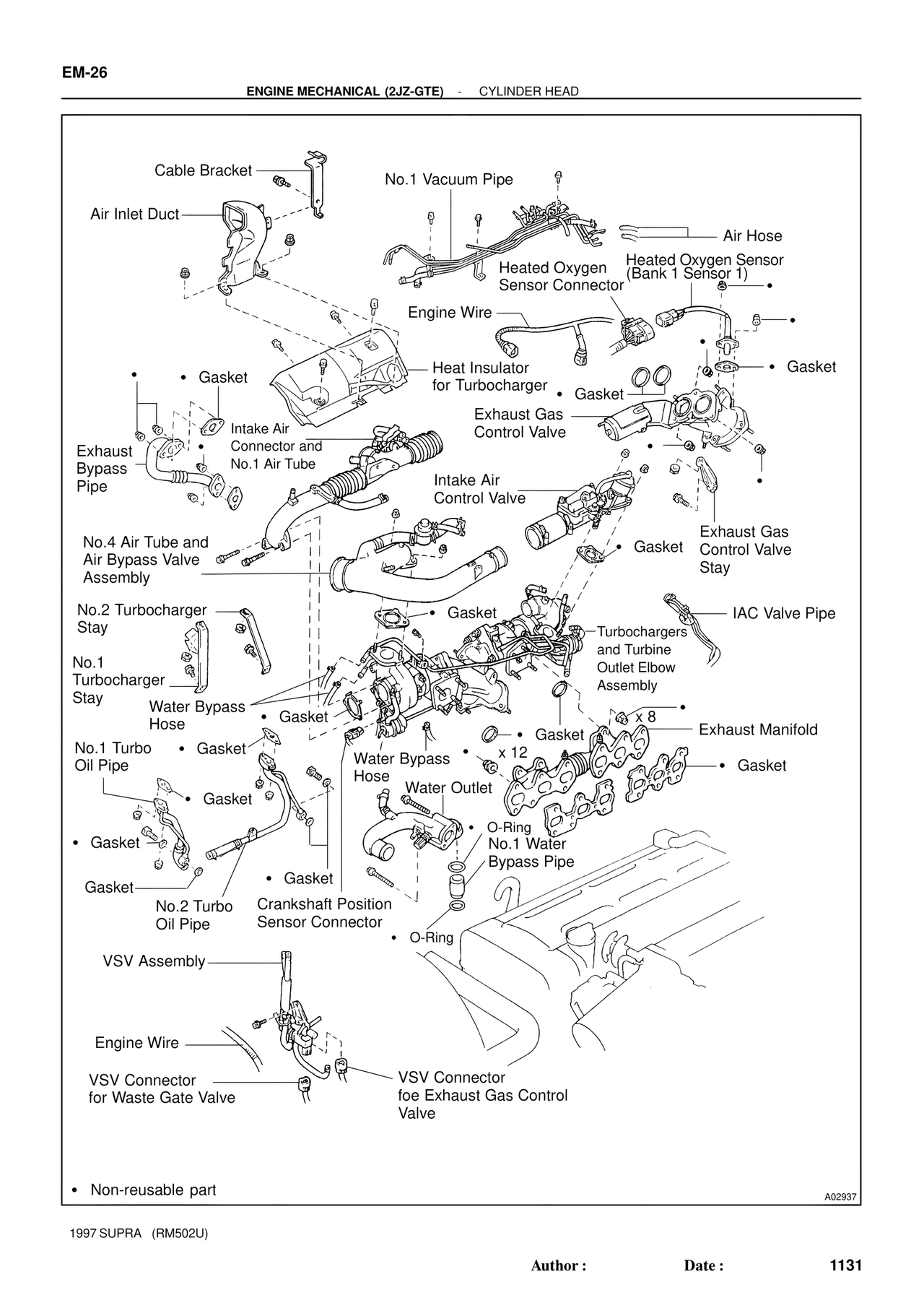

ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
Cable Bracket
Air Inlet Duct
No.1 Vacuum Pipe
Air Hose
Heated Oxygen Sensor Connector
Heated Oxygen Sensor (Bank 1 Sensor 1)
• Gasket
Engine Wire
Heat Insulator for Turbocharger
• Gasket
• Gasket
Exhaust Gas Control Valve
Exhaust Bypass Pipe
Intake Air Connector and No.1 Air Tube
Intake Air Control Valve
• Gasket
Exhaust Gas Control Valve Stay
No.4 Air Tube and Air Bypass Valve Assembly
IAC Valve Pipe
No.2 Turbocharger Stay
Turbochargers and Turbine Outlet Elbow Assembly
No.1 Turbocharger Stay
Water Bypass Hose
• Gasket
• Gasket
• x 8
Exhaust Manifold
No.1 Turbo Oil Pipe
• Gasket
Water Bypass Hose
• Gasket
• x 12
• Gasket
• Gasket
Water Outlet
O-Ring
No.1 Water Bypass Pipe
Gasket
No.2 Turbo Oil Pipe
Crankshaft Position Sensor Connector
O-Ring
VSV Assembly
Engine Wire
VSV Connector for Waste Gate Valve
VSV Connector foe Exhaust Gas Control Valve
• Non-reusable part
