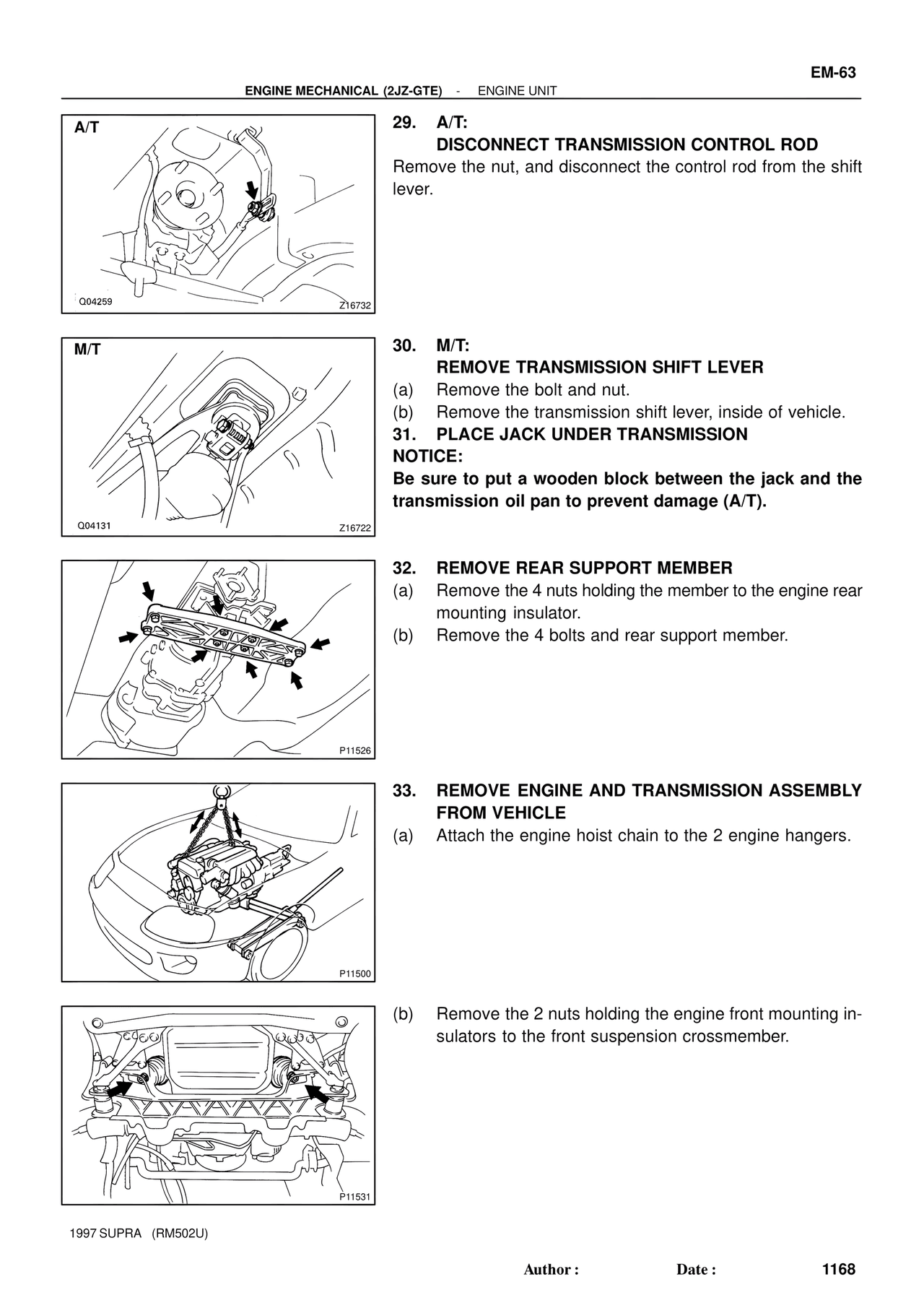

EM-63
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
A/T
Q04259 Z16732
29. A/T:
DISCONNECT TRANSMISSION CONTROL ROD
Remove the nut, and disconnect the control rod from the shift lever.
M/T
Q04131 Z16722
30. M/T:
REMOVE TRANSMISSION SHIFT LEVER
(a) Remove the bolt and nut.
(b) Remove the transmission shift lever, inside of vehicle.
31. PLACE JACK UNDER TRANSMISSION
NOTICE:
Be sure to put a wooden block between the jack and the transmission oil pan to prevent damage (A/T).
P11526
32. REMOVE REAR SUPPORT MEMBER
(a) Remove the 4 nuts holding the member to the engine rear mounting insulator.
(b) Remove the 4 bolts and rear support member.
P11500
33. REMOVE ENGINE AND TRANSMISSION ASSEMBLY FROM VEHICLE
(a) Attach the engine hoist chain to the 2 engine hangers.
P11531
(b) Remove the 2 nuts holding the engine front mounting insulators to the front suspension crossmember.
1997 SUPRA (RM502U)
Author : Date : 1168
