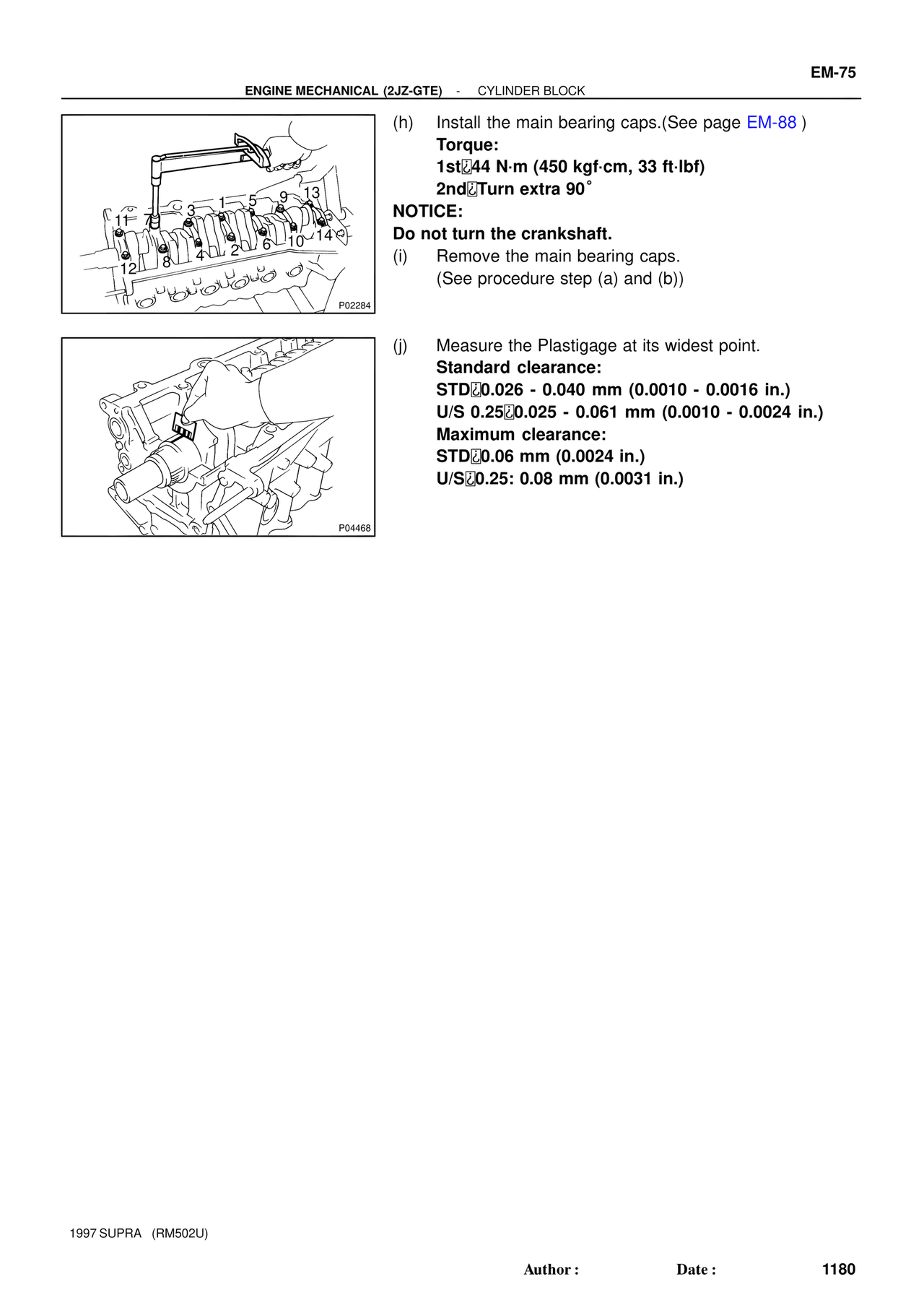

EM-75
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
P02284
(h) Install the main bearing caps.(See page EM-88 )
Torque:
1st：44 N·m (450 kgf·cm, 33 ft·lbf)
2nd：Turn extra 90˚
NOTICE:
Do not turn the crankshaft.
(i) Remove the main bearing caps.
(See procedure step (a) and (b))
P04468
(j) Measure the Plastigage at its widest point.
Standard clearance:
STD：0.026 - 0.040 mm (0.0010 - 0.0016 in.)
U/S 0.25：0.025 - 0.061 mm (0.0010 - 0.0024 in.)
Maximum clearance:
STD：0.06 mm (0.0024 in.)
U/S 0.25: 0.08 mm (0.0031 in.)
1997 SUPRA (RM502U)
