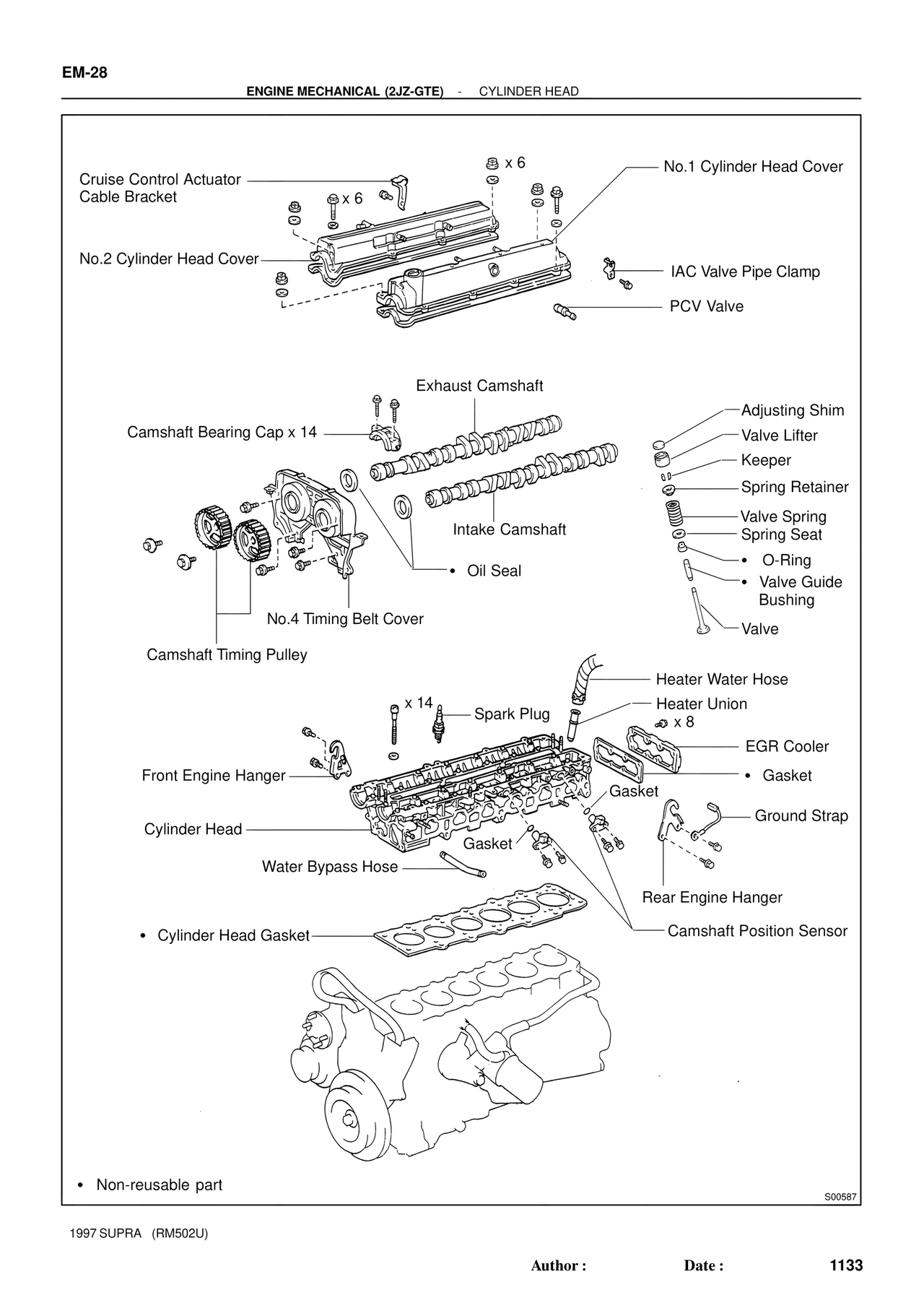

EM-28
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
Cruise Control Actuator
Cable Bracket
No.2 Cylinder Head Cover
x 6
x 6
No.1 Cylinder Head Cover
IAC Valve Pipe Clamp
PCV Valve
Exhaust Camshaft
Camshaft Bearing Cap x 14
Intake Camshaft
• Oil Seal
No.4 Timing Belt Cover
Camshaft Timing Pulley
Adjusting Shim
Valve Lifter
Keeper
Spring Retainer
Valve Spring
Spring Seat
• O-Ring
• Valve Guide
Bushing
Valve
x 14
Spark Plug
Front Engine Hanger
Cylinder Head
Water Bypass Hose
Heater Water Hose
Heater Union
x 8
EGR Cooler
• Gasket
Gasket
Gasket
Ground Strap
Rear Engine Hanger
Camshaft Position Sensor
• Cylinder Head Gasket
• Non-reusable part
S00587
1997 SUPRA (RM502U)
Author : Date : 1133
