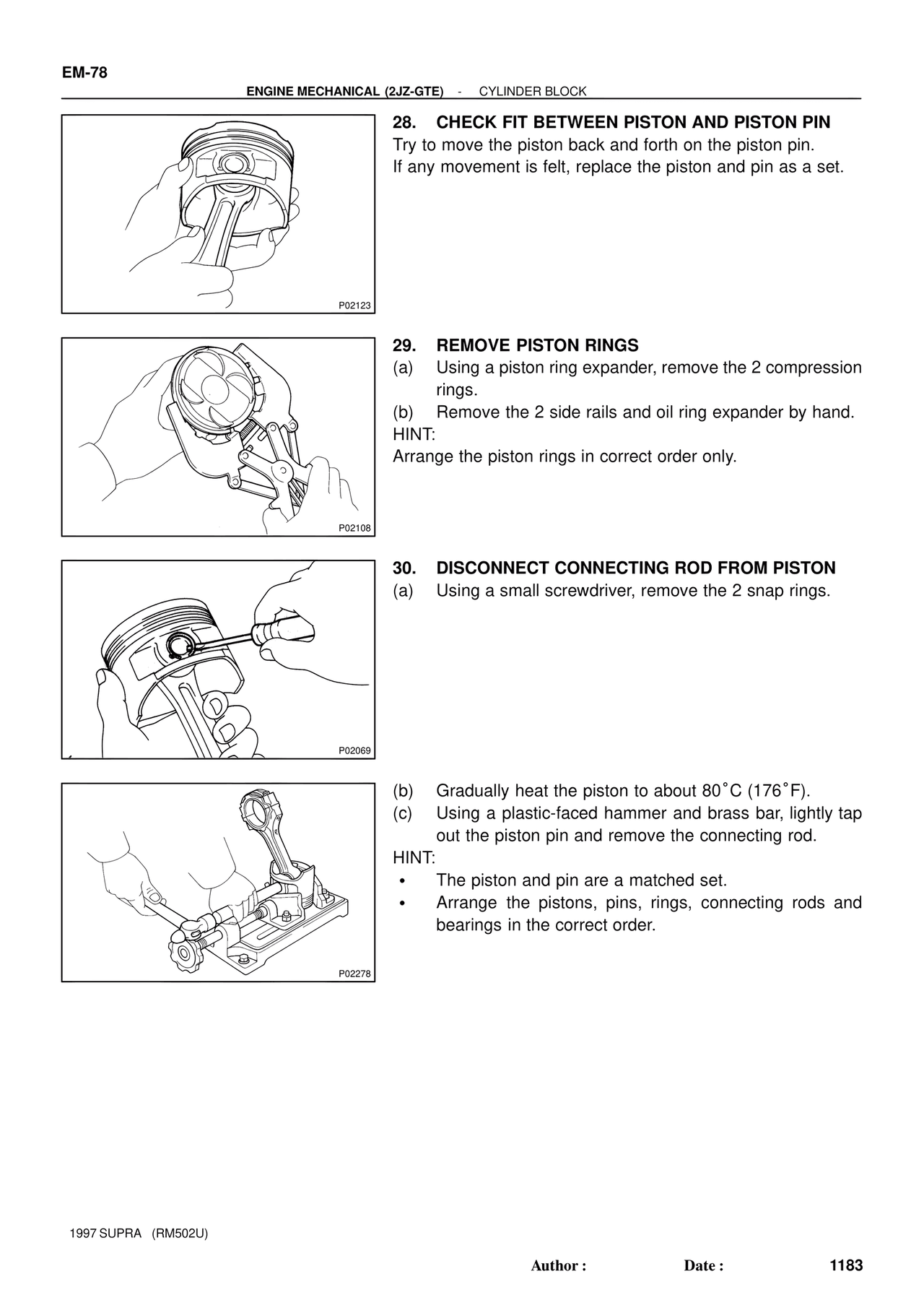

EM-78
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER BLOCK
P02123
28. CHECK FIT BETWEEN PISTON AND PISTON PIN
Try to move the piston back and forth on the piston pin.
If any movement is felt, replace the piston and pin as a set.
P02108
29. REMOVE PISTON RINGS
(a) Using a piston ring expander, remove the 2 compression rings.
(b) Remove the 2 side rails and oil ring expander by hand.
HINT:
Arrange the piston rings in correct order only.
P02069
30. DISCONNECT CONNECTING ROD FROM PISTON
(a) Using a small screwdriver, remove the 2 snap rings.
P02278
(b) Gradually heat the piston to about 80°C (176°F).
(c) Using a plastic-faced hammer and brass bar, lightly tap out the piston pin and remove the connecting rod.
HINT:
• The piston and pin are a matched set.
• Arrange the pistons, pins, rings, connecting rods and bearings in the correct order.
1997 SUPRA (RM502U)
