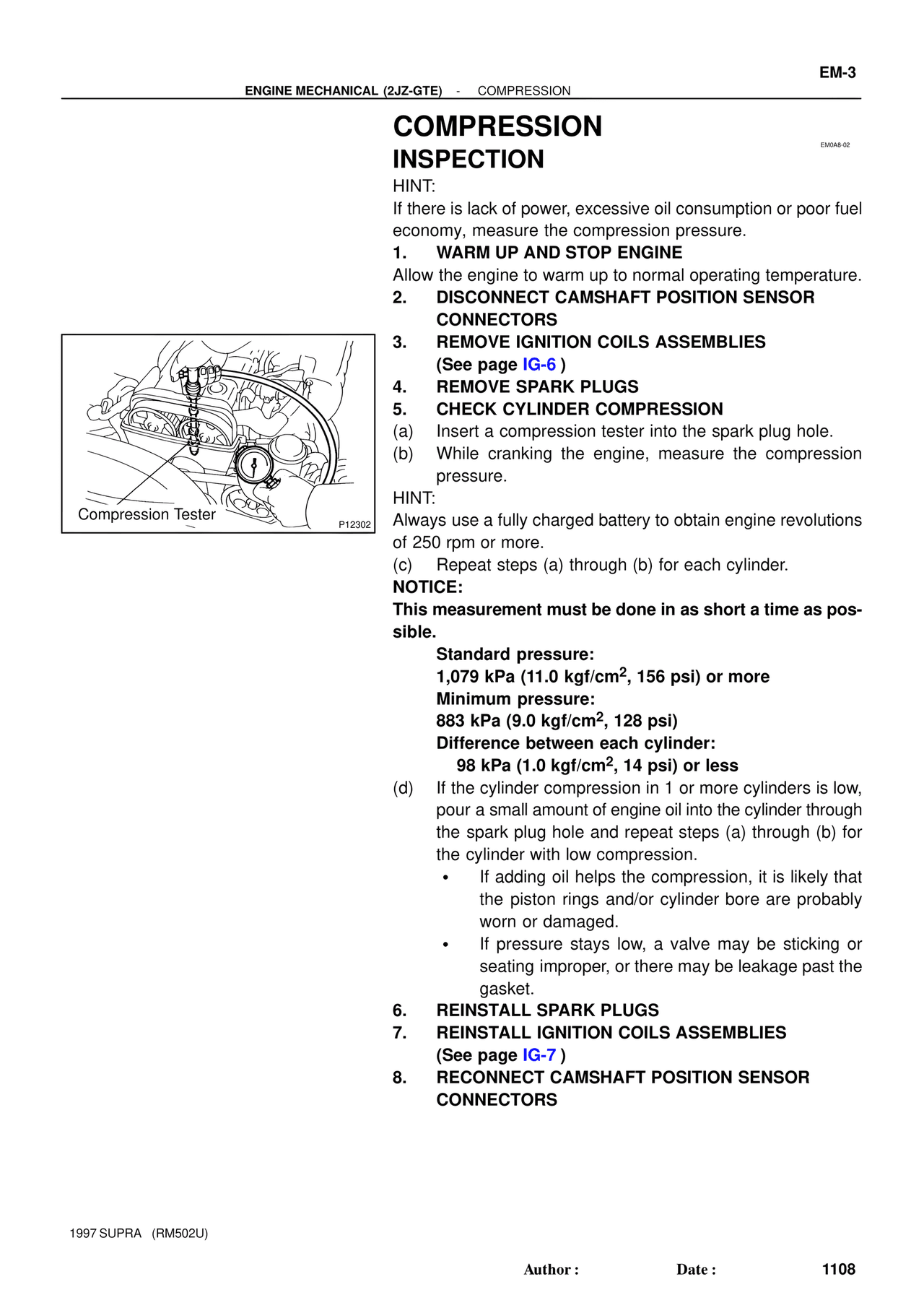

EM-3 ENGINE MECHANICAL (2JZ-GTE) - COMPRESSION COMPRESSION INSPECTION EM0A8-02 HINT: If there is lack of power, excessive oil consumption or poor fuel economy, measure the compression pressure. 1. WARM UP AND STOP ENGINE Allow the engine to warm up to normal operating temperature. 2. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTORS 3. REMOVE IGNITION COILS ASSEMBLIES (See page IG-6 ) 4. REMOVE SPARK PLUGS 5. CHECK CYLINDER COMPRESSION (a) Insert a compression tester into the spark plug hole. (b) While cranking the engine, measure the compression pressure. HINT: Always use a fully charged battery to obtain engine revolutions of 250 rpm or more. (c) Repeat steps (a) through (b) for each cylinder. NOTICE: This measurement must be done in as short a time as possible. Standard pressure: 1,079 kPa (11.0 kgf/cm2, 156 psi) or more Minimum pressure: 883 kPa (9.0 kgf/cm2, 128 psi) Difference between each cylinder: 98 kPa (1.0 kgf/cm2, 14 psi) or less (d) If the cylinder compression in 1 or more cylinders is low, pour a small amount of engine oil into the cylinder through the spark plug hole and repeat steps (a) through (b) for the cylinder with low compression. • If adding oil helps the compression, it is likely that the piston rings and/or cylinder bore are probably worn or damaged. • If pressure stays low, a valve may be sticking or seating improper, or there may be leakage past the gasket. 6. REINSTALL SPARK PLUGS 7. REINSTALL IGNITION COILS ASSEMBLIES (See page IG-7 ) 8. RECONNECT CAMSHAFT POSITION SENSOR CONNECTORS Compression Tester P12302 1997 SUPRA (RM502U) Author : Date : 1108
