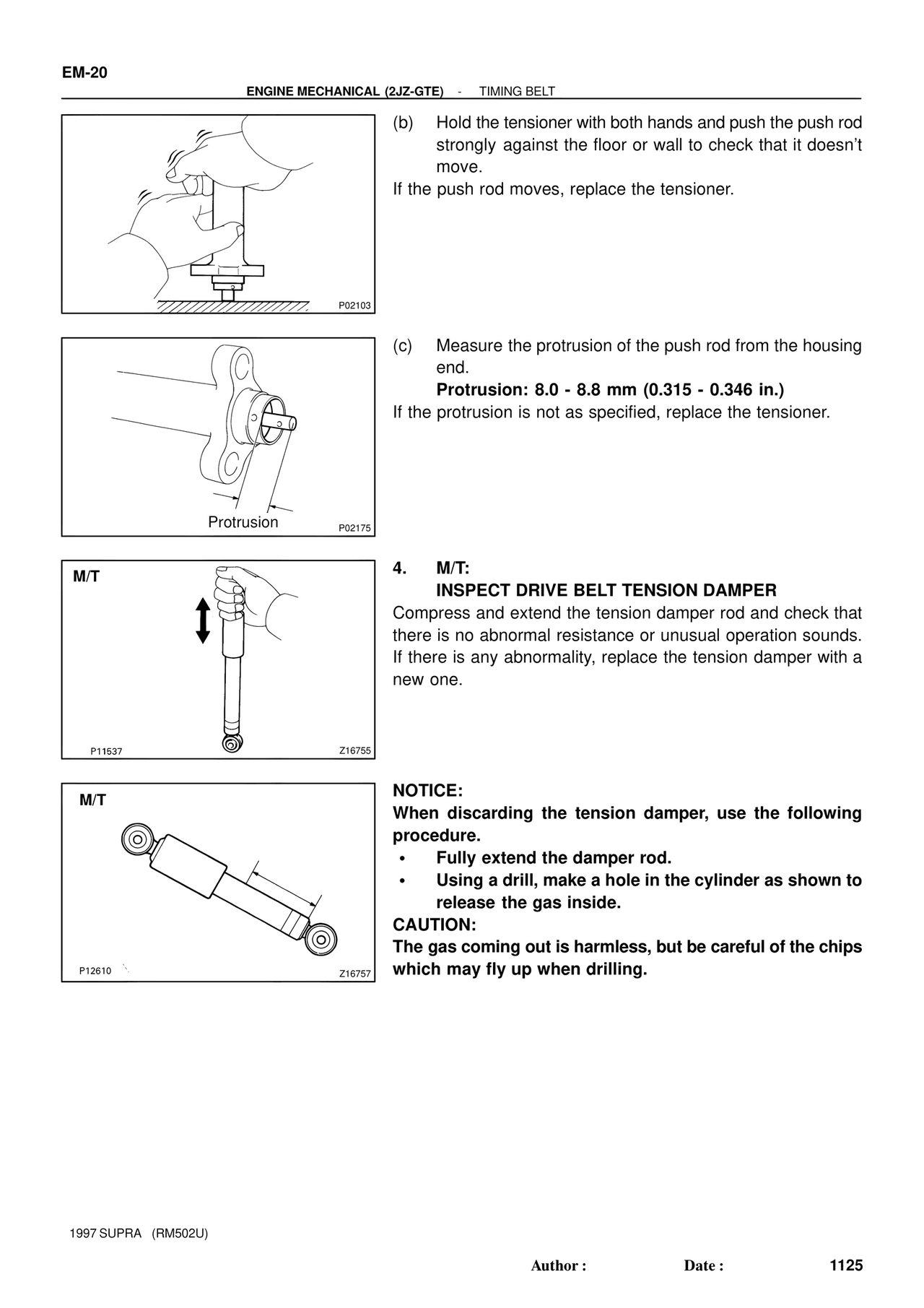

EM-20
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
P02103
(b) Hold the tensioner with both hands and push the push rod
strongly against the floor or wall to check that it doesn't
move.
If the push rod moves, replace the tensioner.
Protrusion P02175
(c) Measure the protrusion of the push rod from the housing
end.
Protrusion: 8.0 - 8.8 mm (0.315 - 0.346 in.)
If the protrusion is not as specified, replace the tensioner.
M/T
P11537 Z16755
4. M/T:
INSPECT DRIVE BELT TENSION DAMPER
Compress and extend the tension damper rod and check that
there is no abnormal resistance or unusual operation sounds.
If there is any abnormality, replace the tension damper with a
new one.
M/T
P12610 Z16757
NOTICE:
When discarding the tension damper, use the following
procedure.
• Fully extend the damper rod.
• Using a drill, make a hole in the cylinder as shown to
release the gas inside.
CAUTION:
The gas coming out is harmless, but be careful of the chips
which may fly up when drilling.
1997 SUPRA (RM502U)
