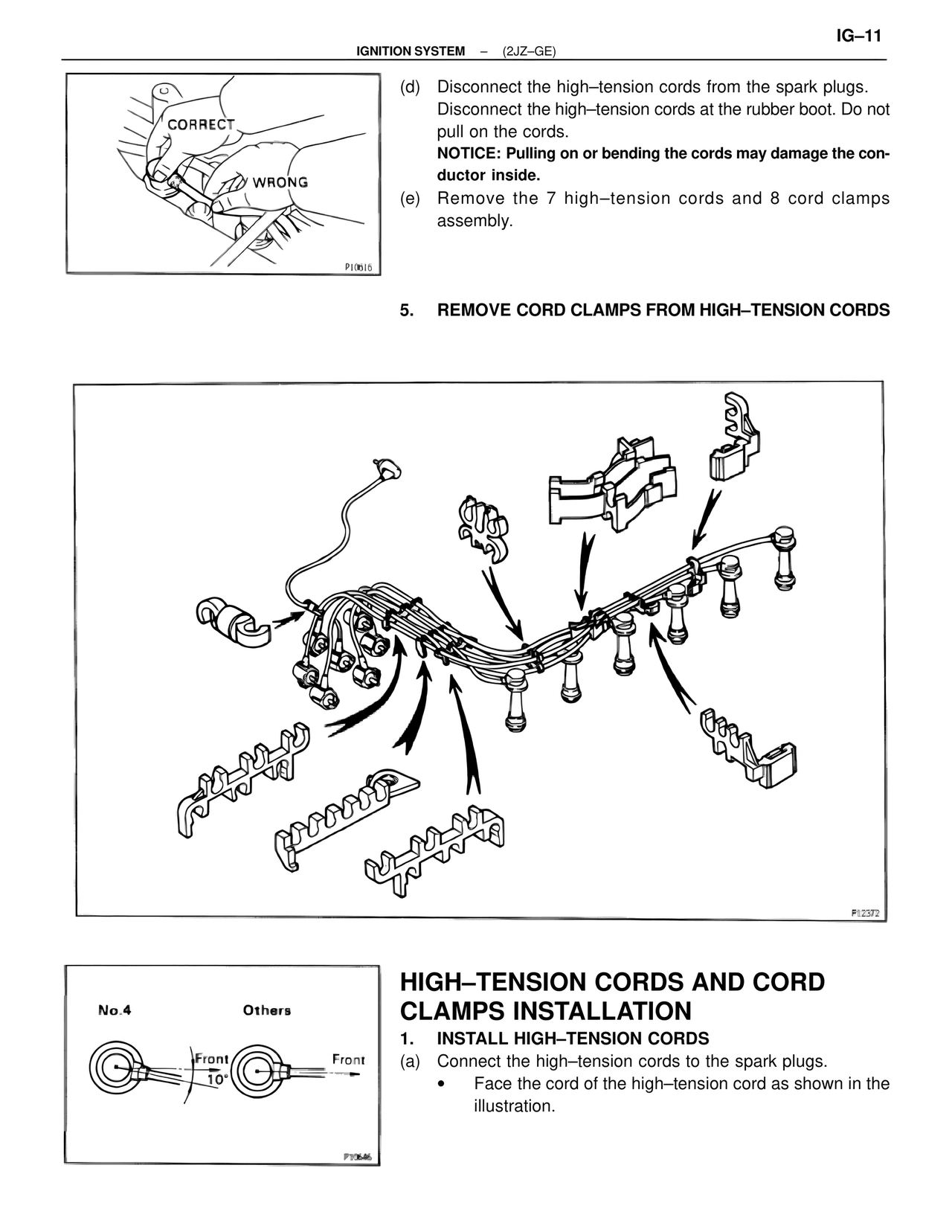

IGE/Ignition System 2JZ-GE — High-Tension Cords and Cord Clamps Installation, page 11

IG–11
IGNITION SYSTEM – (2JZ–GE)

CORRECT
WRONG
P10616

(d) Disconnect the high–tension cords from the spark plugs.
Disconnect the high–tension cords at the rubber boot. Do not
pull on the cords.
NOTICE: Pulling on or bending the cords may damage the con-
ductor inside.
(e) Remove the 7 high–tension cords and 8 cord clamps
assembly.

5. REMOVE CORD CLAMPS FROM HIGH–TENSION CORDS

P12372

No.4        Others

Front        Front
10°
P10646

HIGH–TENSION CORDS AND CORD
CLAMPS INSTALLATION
1. INSTALL HIGH–TENSION CORDS
(a) Connect the high–tension cords to the spark plugs.
• Face the cord of the high–tension cord as shown in the
illustration.
