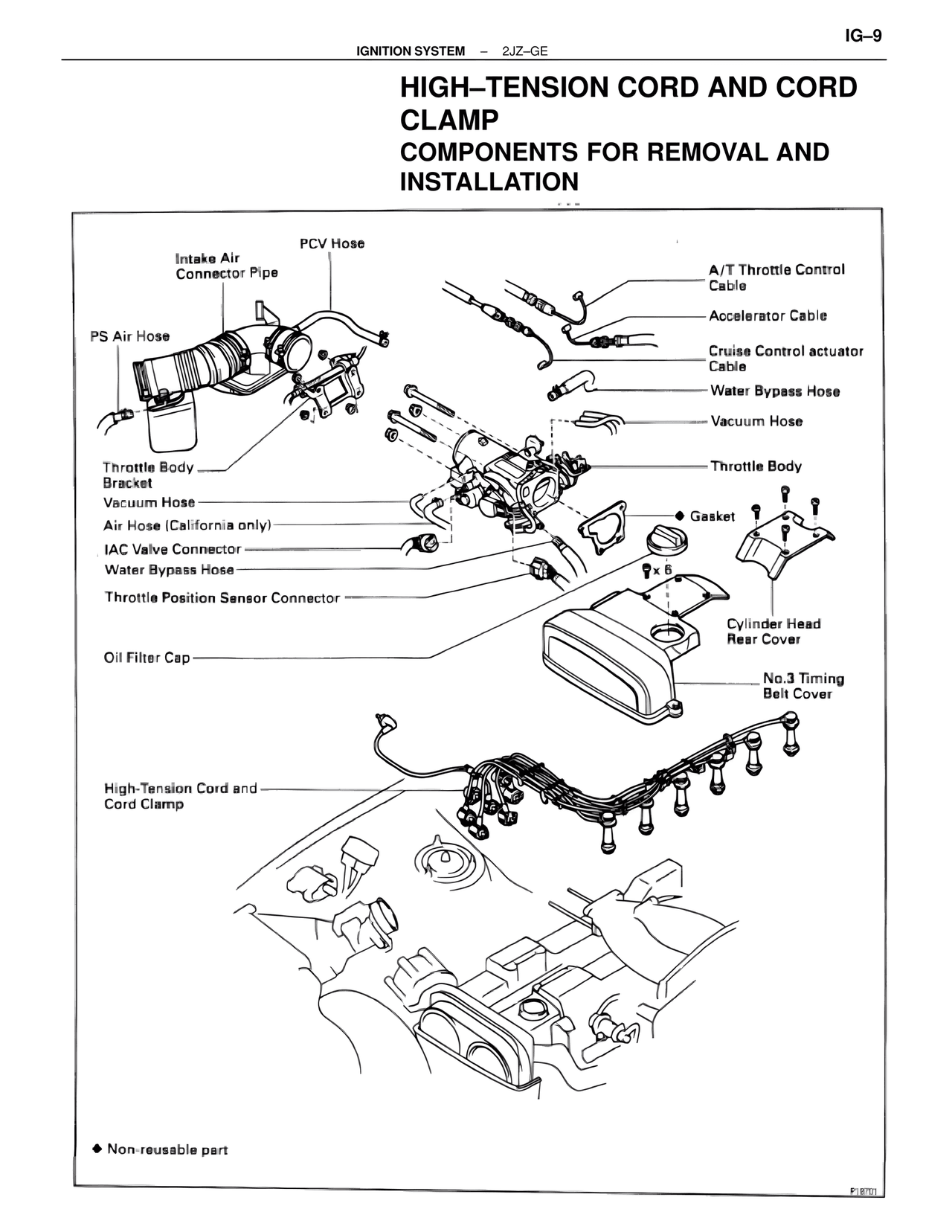

IGE/Ignition System 2JZ-GE — High-Tension Cord and Cord Clamp Components for Removal and Installation, page 9

IG-9
IGNITION SYSTEM — 2JZ-GE

HIGH-TENSION CORD AND CORD CLAMP
COMPONENTS FOR REMOVAL AND INSTALLATION

PCV Hose
Intake Air Connector Pipe
PS Air Hose
Throttle Body Bracket
Vacuum Hose
Air Hose (California only)
IAC Valve Connector
Water Bypass Hose
Throttle Position Sensor Connector
Oil Filter Cap
High-Tension Cord and Cord Clamp

A/T Throttle Control Cable
Accelerator Cable
Cruise Control actuator Cable
Water Bypass Hose
Vacuum Hose
Throttle Body
♦ Gasket
♦ x 6
Cylinder Head Rear Cover
No.3 Timing Belt Cover

♦ Non-reusable part

P18701
