IG-12

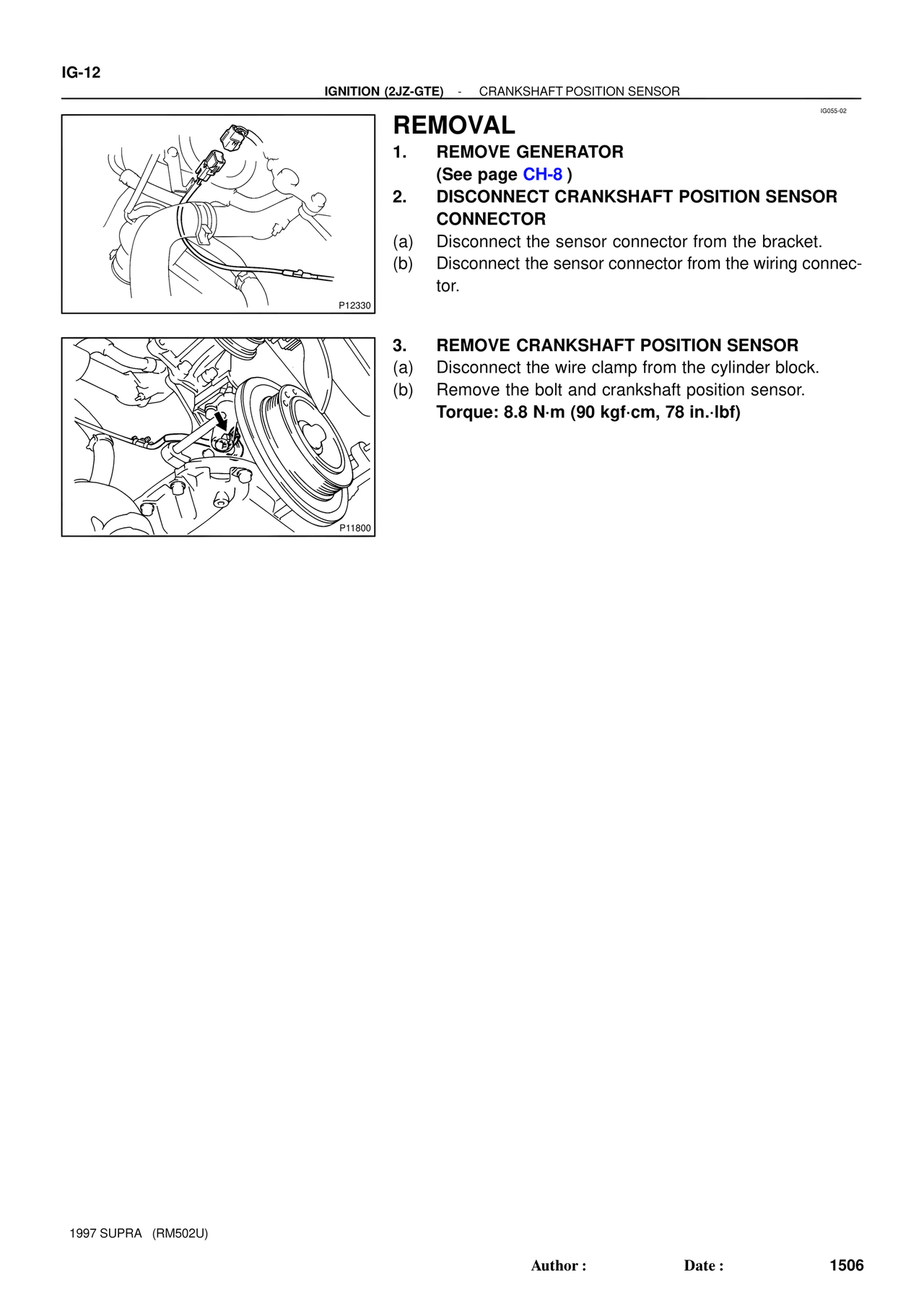

IGNITION (2JZ-GTE) - CRANKSHAFT POSITION SENSOR
IG005-02
REMOVAL
1. REMOVE GENERATOR
(See page CH-8 )
2. DISCONNECT CRANKSHAFT POSITION SENSOR
CONNECTOR
(a) Disconnect the sensor connector from the bracket.
(b) Disconnect the sensor connector from the wiring connector.
P12330
3. REMOVE CRANKSHAFT POSITION SENSOR
(a) Disconnect the wire clamp from the cylinder block.
(b) Remove the bolt and crankshaft position sensor.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
P11800
1997 SUPRA (RM502U)
Author : Date : 1506
