ST-3
STARTING - STARTER

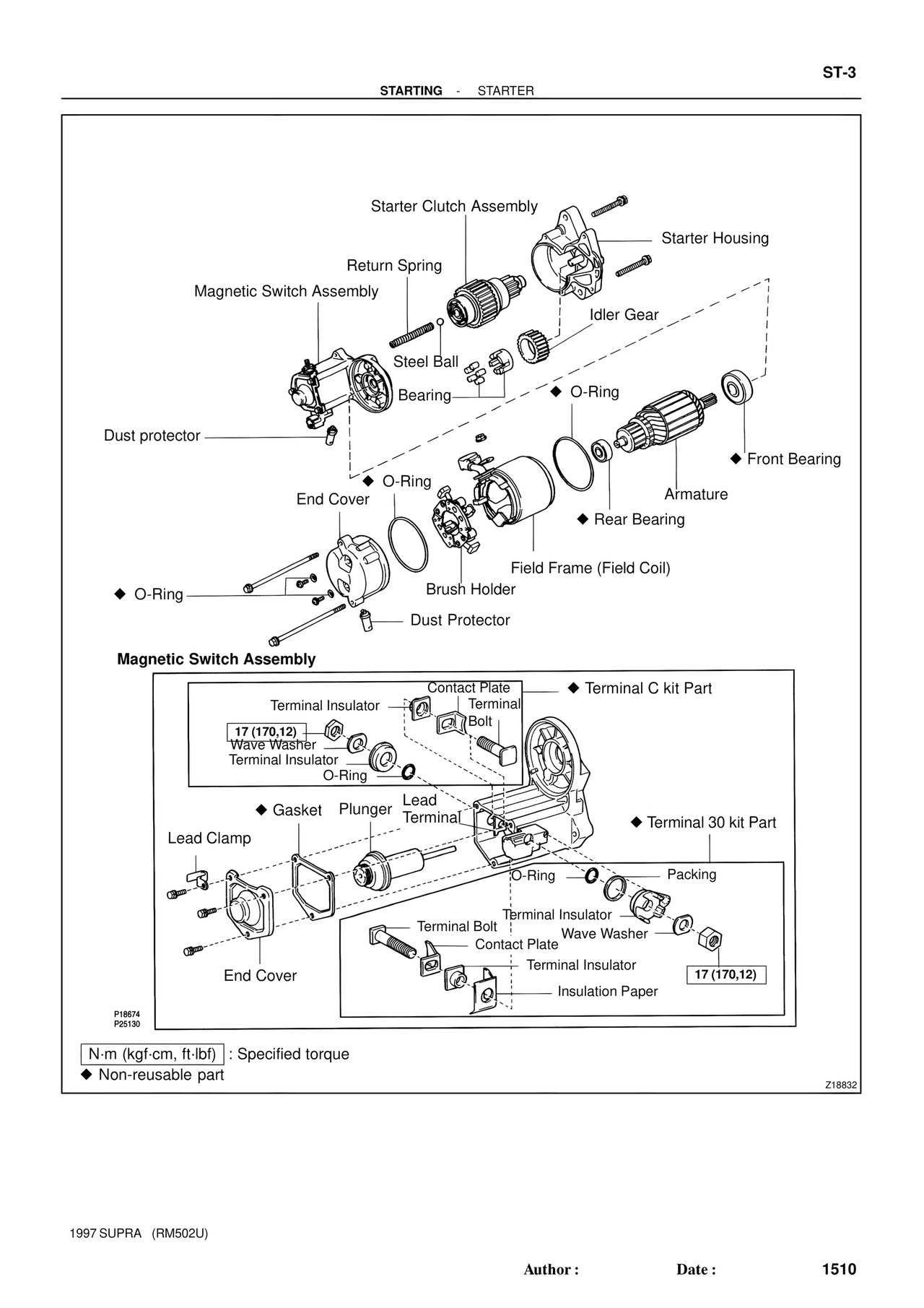

Starter Clutch Assembly
Return Spring
Magnetic Switch Assembly
Steel Ball
Bearing
Dust protector
O-Ring
End Cover
O-Ring
Brush Holder
Dust Protector
Field Frame (Field Coil)
Armature
◆ Rear Bearing
◆ Front Bearing
O-Ring
Idler Gear
Starter Housing
Magnetic Switch Assembly
Contact Plate
Terminal Bolt
◆ Terminal C kit Part
Terminal Insulator
17 (170,12)
Wave Washer
Terminal Insulator
O-Ring
◆ Gasket Plunger Lead Terminal
Lead Clamp
O-Ring
Packing
Terminal Insulator
Wave Washer
Terminal Bolt
Contact Plate
Terminal Insulator
17 (170,12)
Insulation Paper
◆ Terminal 30 kit Part
End Cover
P18674
P25130
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
Z18832
