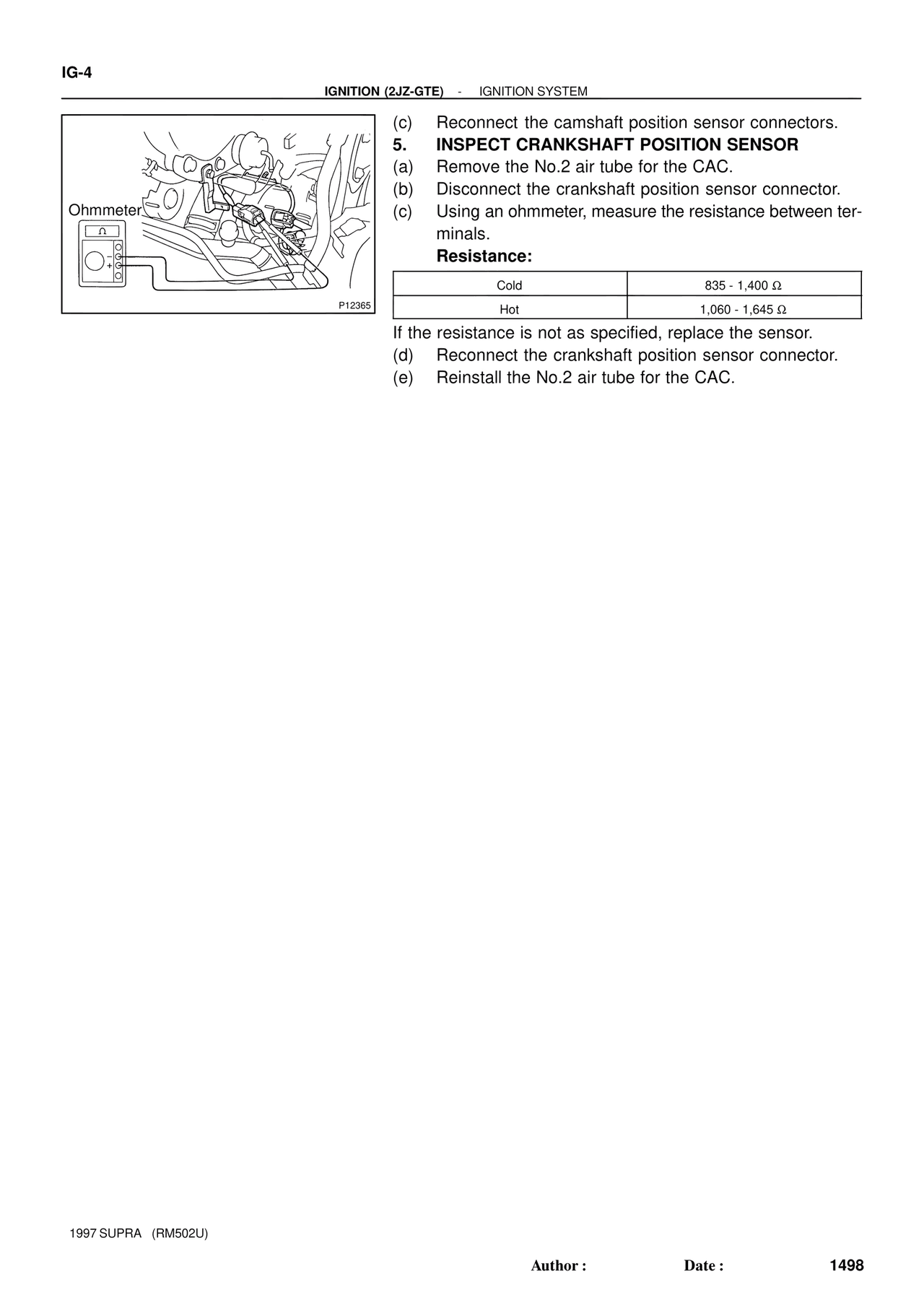

IGS/Ignition 1997 Supplement — Inspect Crankshaft Position Sensor, page 4

IG-4
IGNITION (2JZ-GTE)  -  IGNITION SYSTEM

Ohmmeter

P12365

(c)    Reconnect the camshaft position sensor connectors.
5.    INSPECT CRANKSHAFT POSITION SENSOR
(a)    Remove the No.2 air tube for the CAC.
(b)    Disconnect the crankshaft position sensor connector.
(c)    Using an ohmmeter, measure the resistance between ter-
minals.
Resistance:

Cold    835 - 1,400 Ω
Hot    1,060 - 1,645 Ω

If the resistance is not as specified, replace the sensor.
(d)    Reconnect the crankshaft position sensor connector.
(e)    Reinstall the No.2 air tube for the CAC.

1997 SUPRA  (RM502U)

Author :    Date :    1498
