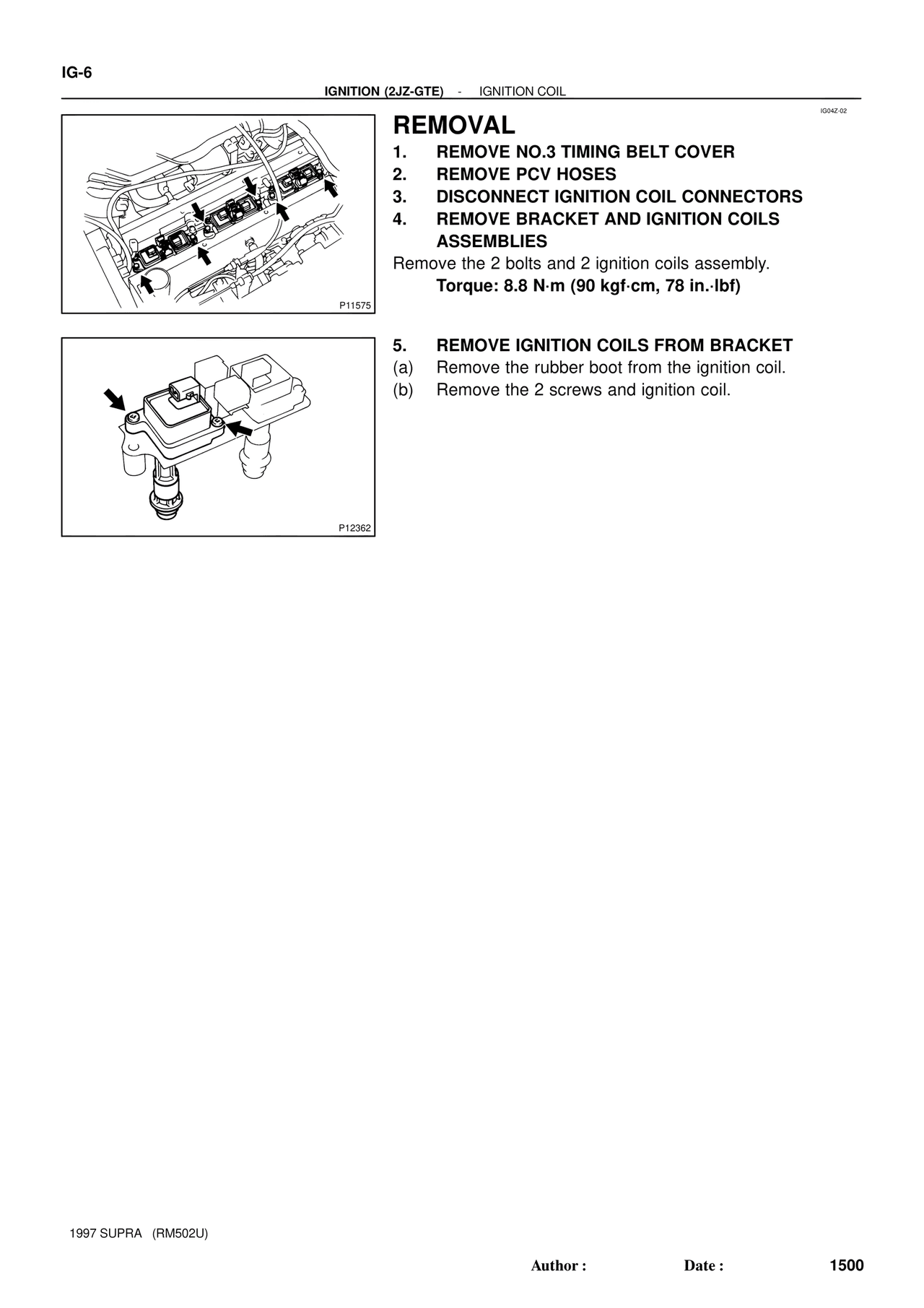

IG-6
IGNITION (2JZ-GTE) - IGNITION COIL
IG04Z-02
REMOVAL
1. REMOVE NO.3 TIMING BELT COVER
2. REMOVE PCV HOSES
3. DISCONNECT IGNITION COIL CONNECTORS
4. REMOVE BRACKET AND IGNITION COILS ASSEMBLIES
Remove the 2 bolts and 2 ignition coils assembly.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
P11575
5. REMOVE IGNITION COILS FROM BRACKET
(a) Remove the rubber boot from the ignition coil.
(b) Remove the 2 screws and ignition coil.
P12362
1997 SUPRA (RM502U)
Author : Date : 1500
