IG-9

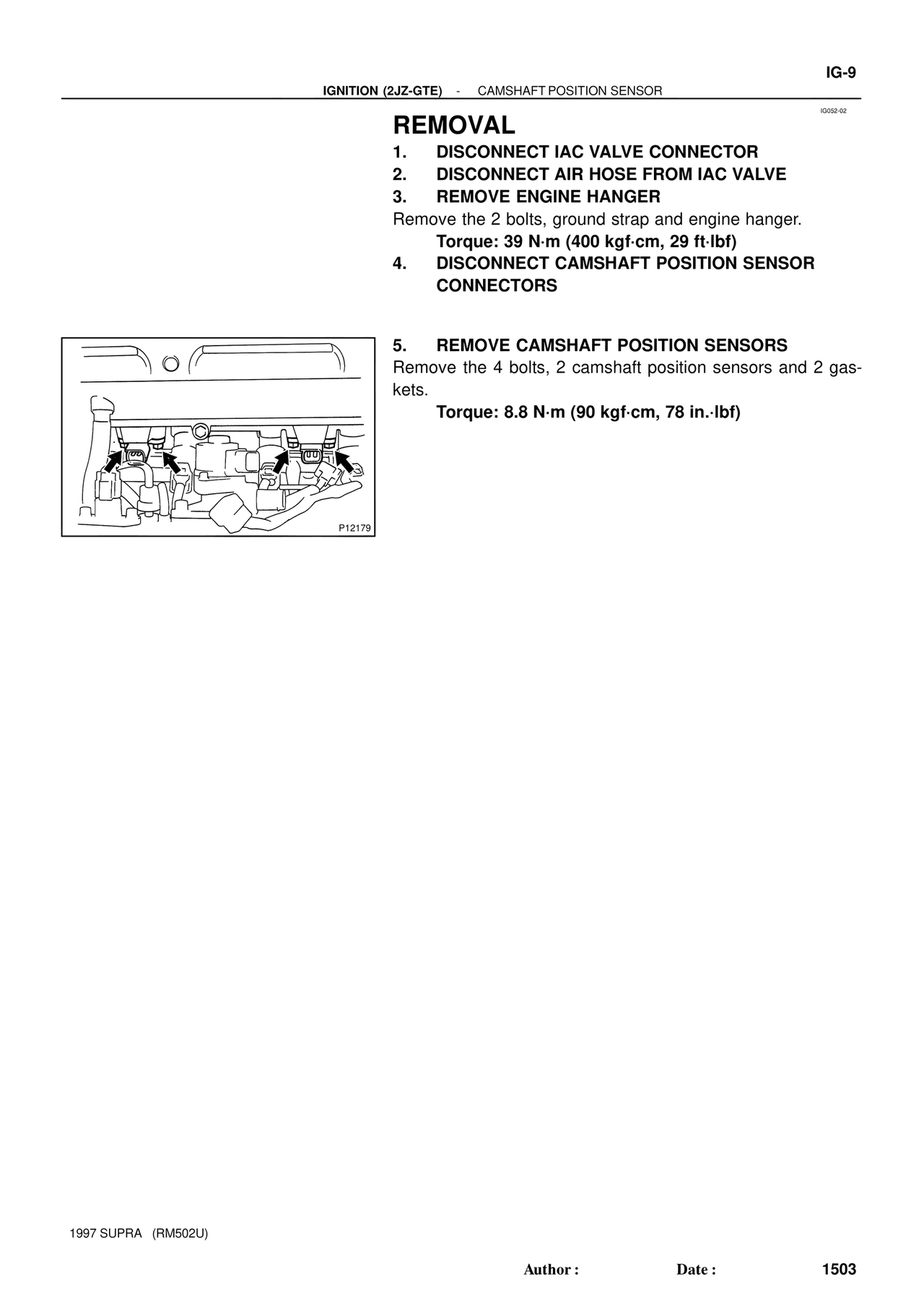

IGNITION (2JZ-GTE) - CAMSHAFT POSITION SENSOR
IG052-02
REMOVAL
1. DISCONNECT IAC VALVE CONNECTOR
2. DISCONNECT AIR HOSE FROM IAC VALVE
3. REMOVE ENGINE HANGER
Remove the 2 bolts, ground strap and engine hanger.
Torque: 39 N·m (400 kgf·cm, 29 ft·lbf)
4. DISCONNECT CAMSHAFT POSITION SENSOR
CONNECTORS
5. REMOVE CAMSHAFT POSITION SENSORS
Remove the 4 bolts, 2 camshaft position sensors and 2 gaskets.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
P12179
1997 SUPRA (RM502U)
Author : Date : 1503
