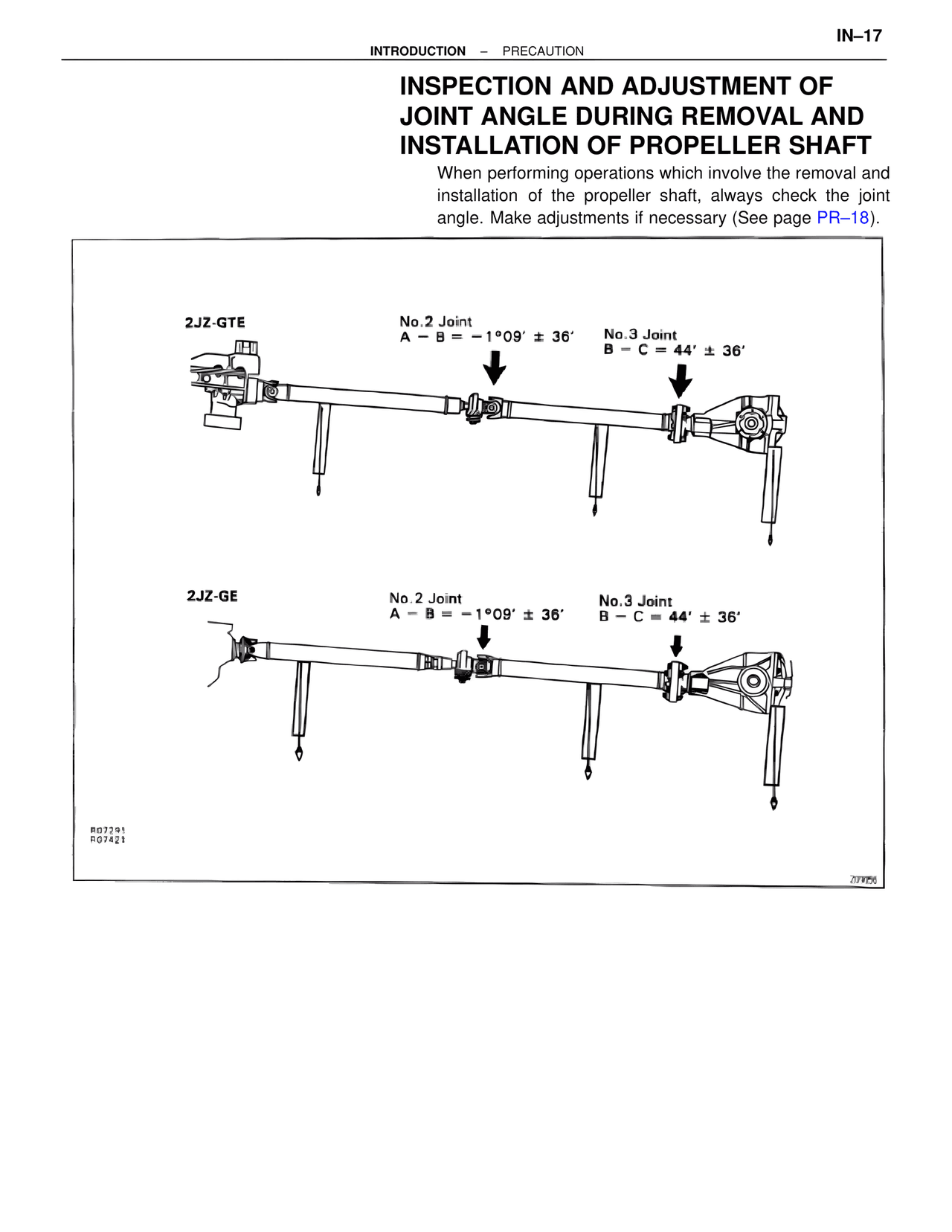

INSPECTION AND ADJUSTMENT OF
JOINT ANGLE DURING REMOVAL AND
INSTALLATION OF PROPELLER SHAFT
When performing operations which involve the removal and
installation of the propeller shaft, always check the joint
angle. Make adjustments if necessary (See page PR–18).
2JZ-GTE
No.2 Joint
A – B = –1°09' ± 36'
No.3 Joint
B – C = 44' ± 36'
2JZ-GE
No.2 Joint
A – B = –1°09' ± 36'
No.3 Joint
B – C = 44' ± 36'
