IN–36

INTRODUCTION – VEHICLE LIFT AND SUPPORT LOCATIONS

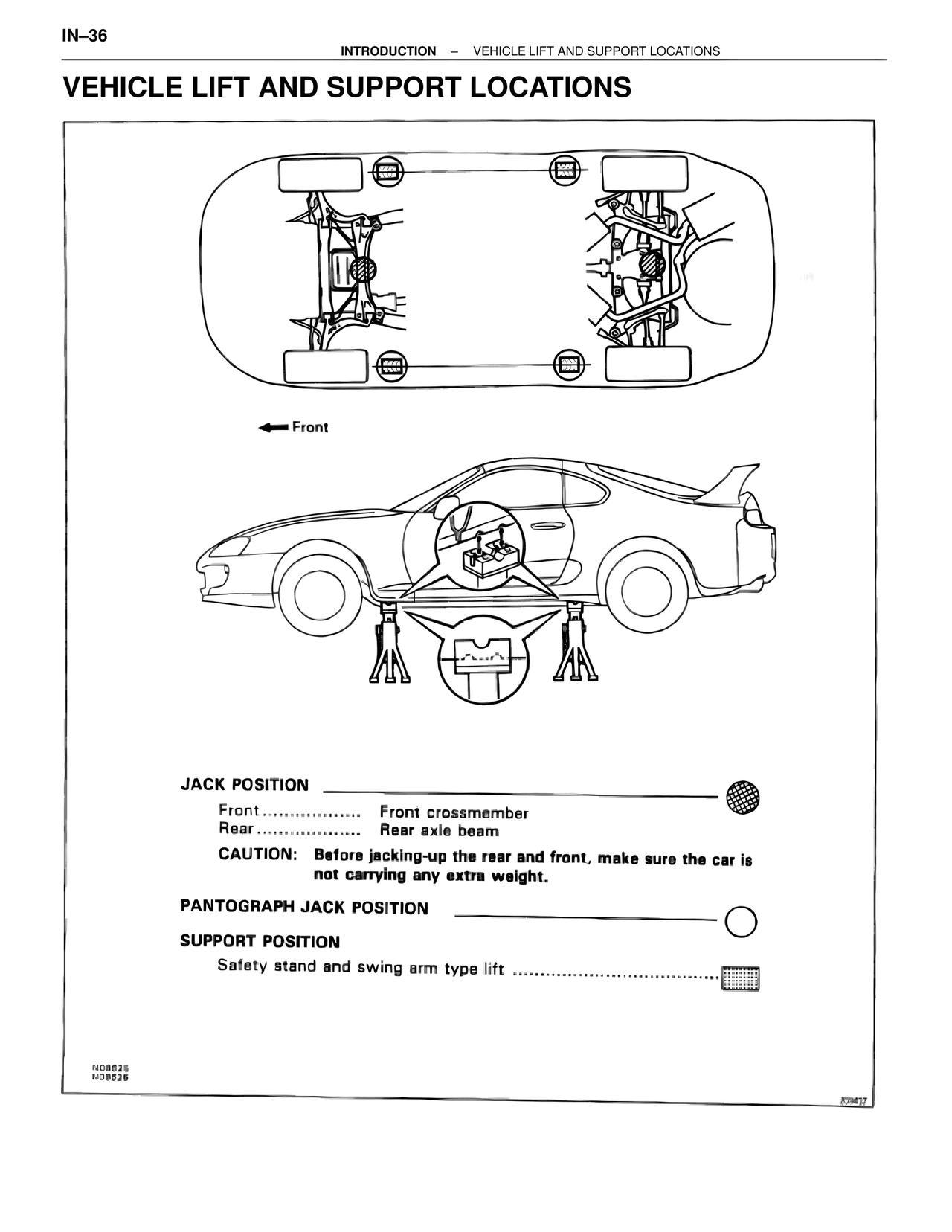

VEHICLE LIFT AND SUPPORT LOCATIONS

Front

JACK POSITION
    Front.................. Front crossmember
    Rear................... Rear axle beam
    CAUTION: Before jacking-up the rear and front, make sure the car is
             not carrying any extra weight.

PANTOGRAPH JACK POSITION

SUPPORT POSITION
    Safety stand and swing arm type lift ......................................

N08625
N08626

209432
