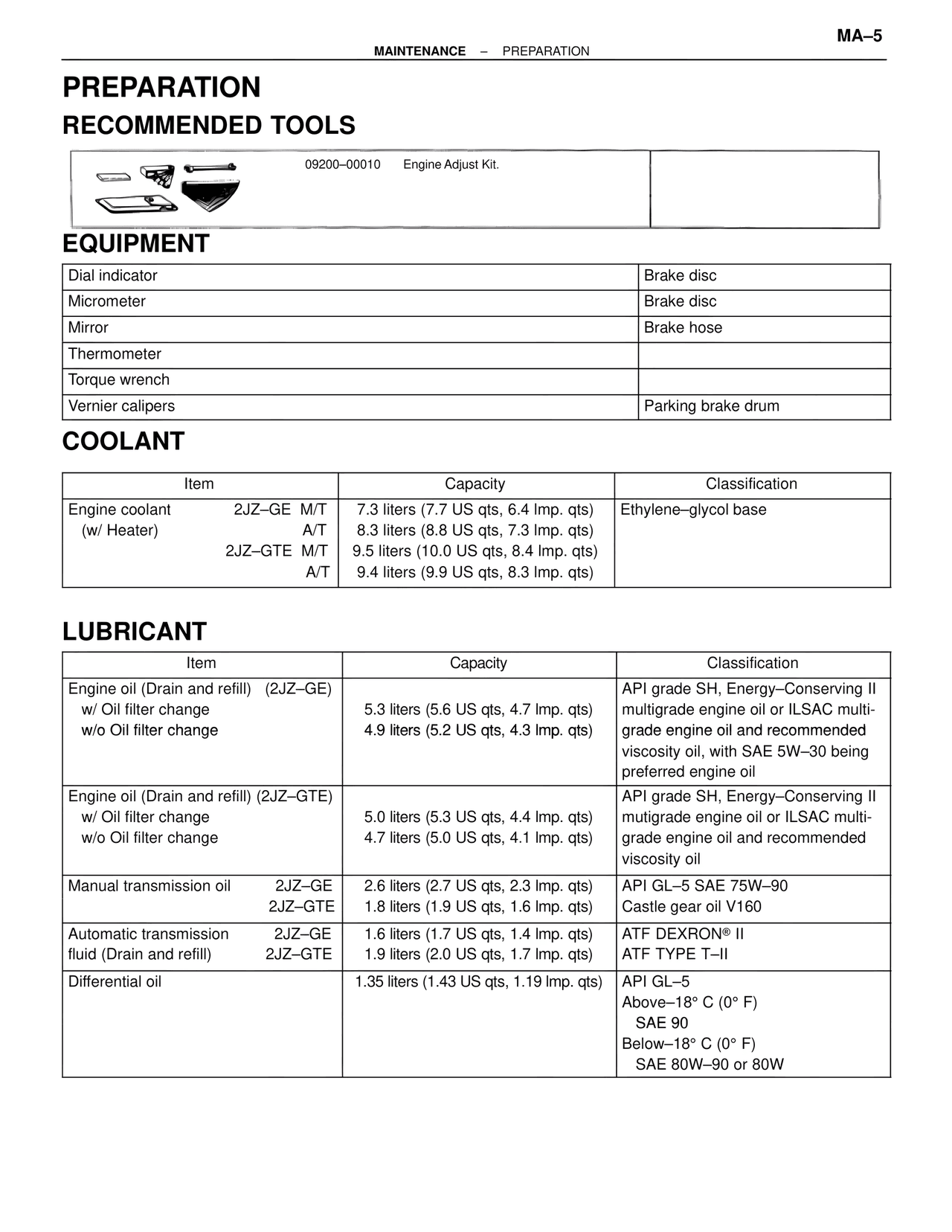

MAINTENANCE – PREPARATION
MA–5
PREPARATION
RECOMMENDED TOOLS
09200–00010 Engine Adjust Kit.
EQUIPMENT
Dial indicator Brake disc
Micrometer Brake disc
Mirror Brake hose
Thermometer
Torque wrench
Vernier calipers Parking brake drum
COOLANT
Item Capacity Classification
Engine coolant 2JZ–GE M/T 7.3 liters (7.7 US qts, 6.4 Imp. qts) Ethylene–glycol base
(w/ Heater) A/T 8.3 liters (8.8 US qts, 7.3 Imp. qts)
2JZ–GTE M/T 9.5 liters (10.0 US qts, 8.4 Imp. qts)
A/T 9.4 liters (9.9 US qts, 8.3 Imp. qts)
LUBRICANT
Item Capacity Classification
Engine oil (Drain and refill) (2JZ–GE) API grade SH, Energy–Conserving II
w/ Oil filter change 5.3 liters (5.6 US qts, 4.7 Imp. qts) multigrade engine oil or ILSAC multi-
w/o Oil filter change 4.9 liters (5.2 US qts, 4.3 Imp. qts) grade engine oil and recommended
viscosity oil, with SAE 5W–30 being
preferred engine oil
Engine oil (Drain and refill) (2JZ–GTE) API grade SH, Energy–Conserving II
w/ Oil filter change 5.0 liters (5.3 US qts, 4.4 Imp. qts) multigrade engine oil or ILSAC multi-
w/o Oil filter change 4.7 liters (5.0 US qts, 4.1 Imp. qts) grade engine oil and recommended
viscosity oil
Manual transmission oil 2JZ–GE 2.6 liters (2.7 US qts, 2.3 Imp. qts) API GL–5 SAE 75W–90
2JZ–GTE 1.8 liters (1.9 US qts, 1.6 Imp. qts) Castle gear oil V160
Automatic transmission 2JZ–GE 1.6 liters (1.7 US qts, 1.4 Imp. qts) ATF DEXRON® II
fluid (Drain and refill) 2JZ–GTE 1.9 liters (2.0 US qts, 1.7 Imp. qts) ATF TYPE T–II
Differential oil 1.35 liters (1.43 US qts, 1.19 Imp. qts) API GL–5
Above–18° C (0° F)
SAE 90
Below–18° C (0° F)
SAE 80W–90 or 80W
