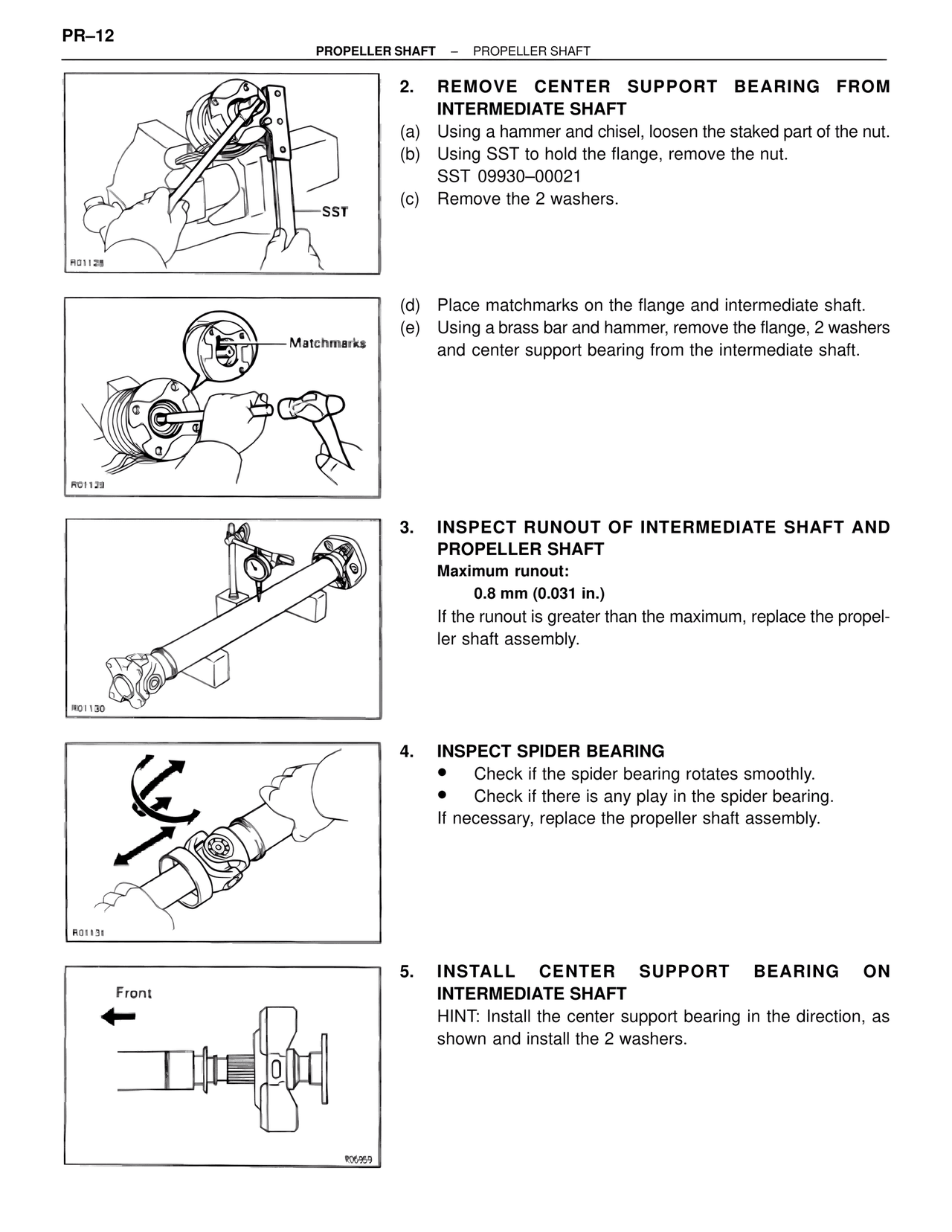

PR–12
PROPELLER SHAFT – PROPELLER SHAFT
2. REMOVE CENTER SUPPORT BEARING FROM INTERMEDIATE SHAFT
(a) Using a hammer and chisel, loosen the staked part of the nut.
(b) Using SST to hold the flange, remove the nut.
SST 09930–00021
(c) Remove the 2 washers.
SST
R01128
Matchmarks
R01129
(d) Place matchmarks on the flange and intermediate shaft.
(e) Using a brass bar and hammer, remove the flange, 2 washers and center support bearing from the intermediate shaft.
R01130
3. INSPECT RUNOUT OF INTERMEDIATE SHAFT AND PROPELLER SHAFT
Maximum runout:
0.8 mm (0.031 in.)
If the runout is greater than the maximum, replace the propeller shaft assembly.
R01131
4. INSPECT SPIDER BEARING
• Check if the spider bearing rotates smoothly.
• Check if there is any play in the spider bearing.
If necessary, replace the propeller shaft assembly.
Front
B06959
5. INSTALL CENTER SUPPORT BEARING ON INTERMEDIATE SHAFT
HINT: Install the center support bearing in the direction, as shown and install the 2 washers.
