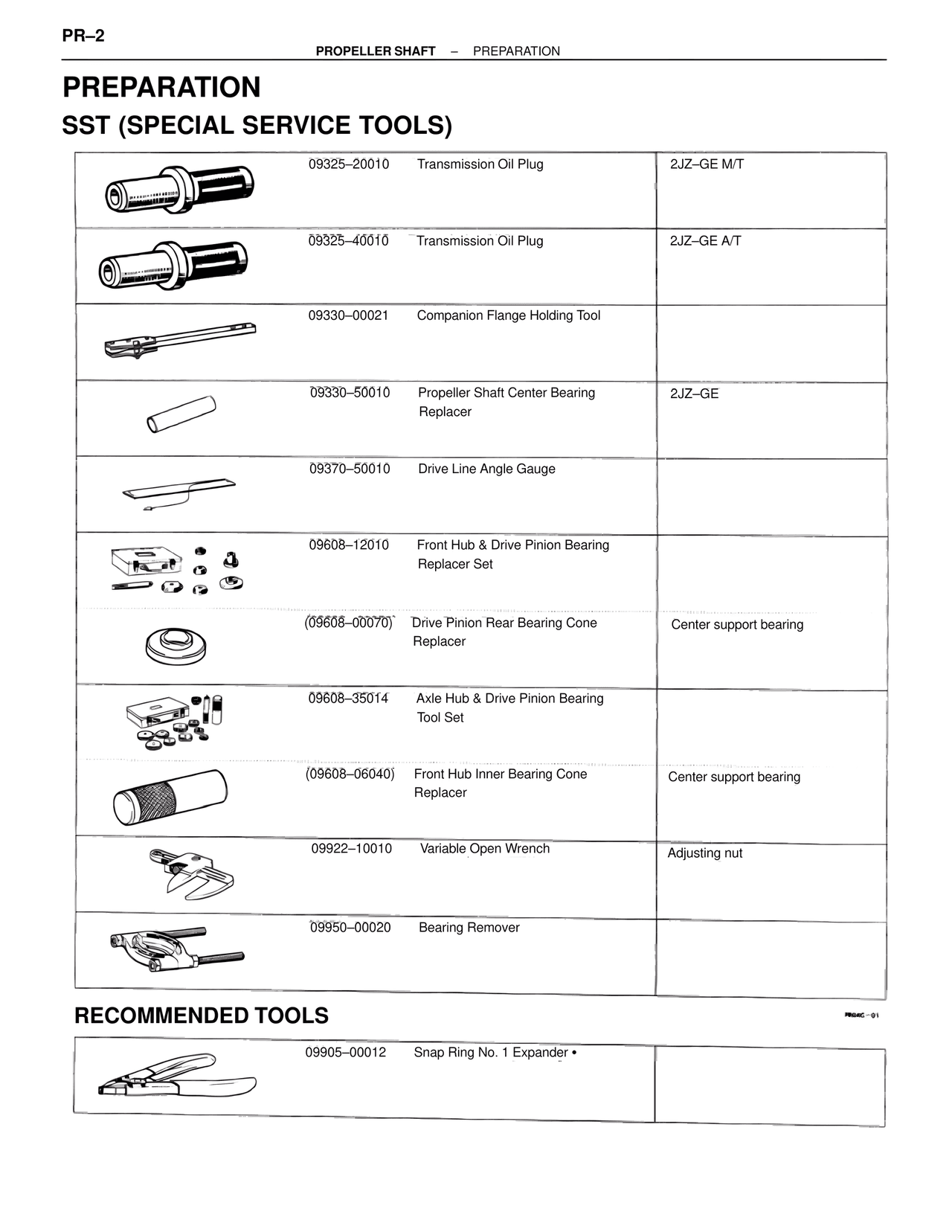

PR–2
PROPELLER SHAFT – PREPARATION
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09325–20010 Transmission Oil Plug 2JZ–GE M/T
09325–40010 Transmission Oil Plug 2JZ–GE A/T
09330–00021 Companion Flange Holding Tool
09330–50010 Propeller Shaft Center Bearing
Replacer 2JZ–GE
09370–50010 Drive Line Angle Gauge
09608–12010 Front Hub & Drive Pinion Bearing
Replacer Set
(09608–00070) Drive Pinion Rear Bearing Cone
Replacer Center support bearing
09608–35014 Axle Hub & Drive Pinion Bearing
Tool Set
(09608–06040) Front Hub Inner Bearing Cone
Replacer Center support bearing
09922–10010 Variable Open Wrench Adjusting nut
09950–00020 Bearing Remover
RECOMMENDED TOOLS FRG4C–01
09905–00012 Snap Ring No. 1 Expander •
