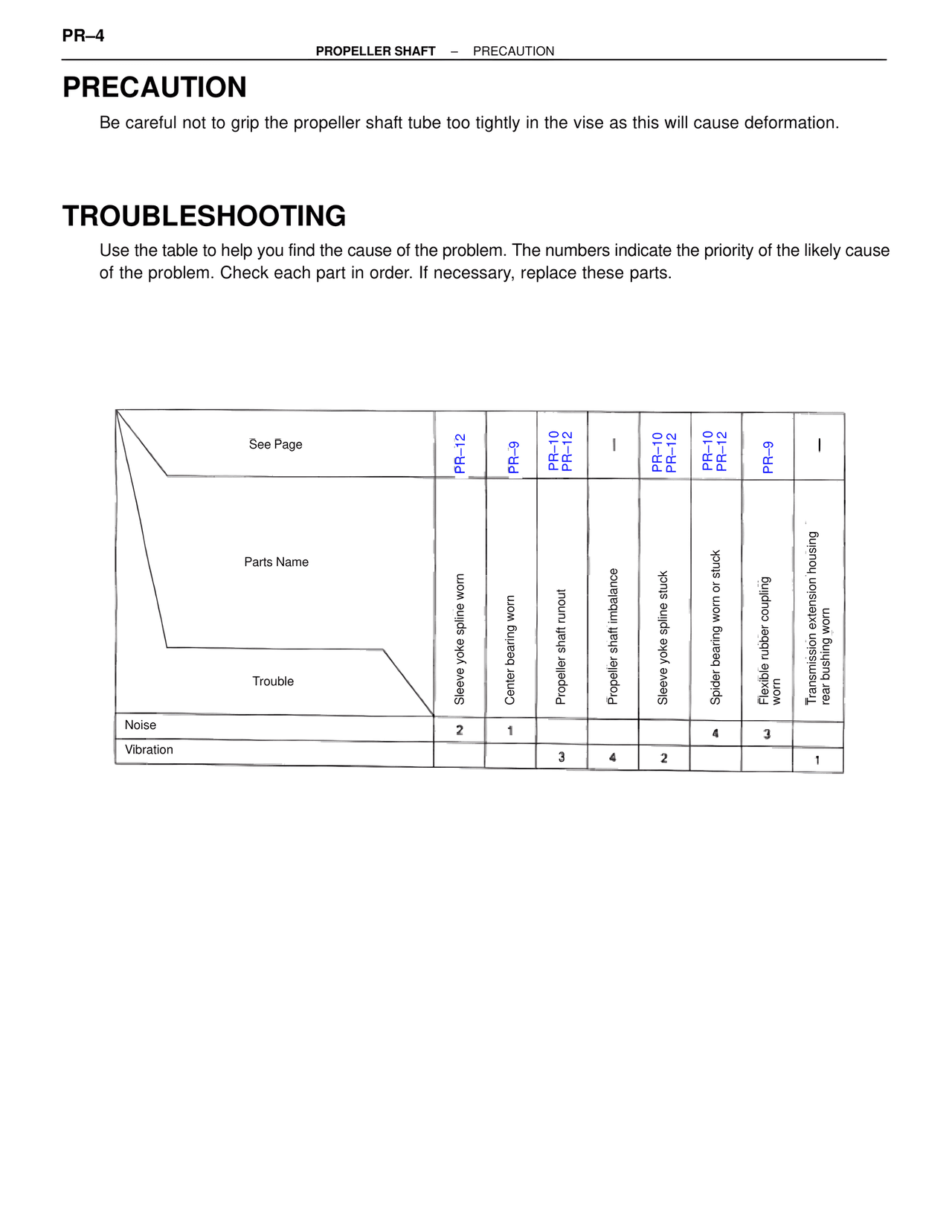

PR–4
PROPELLER SHAFT – PRECAUTION
PRECAUTION
Be careful not to grip the propeller shaft tube too tightly in the vise as this will cause deformation.
TROUBLESHOOTING
Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
See Page
PR–12
PR–9
PR–10
PR–12
|
PR–10
PR–12
PR–10
PR–12
PR–9
|
Parts Name
Sleeve yoke spline worn
Center bearing worn
Propeller shaft runout
Propeller shaft imbalance
Sleeve yoke spline stuck
Spider bearing worn or stuck
Flexible rubber coupling worn
Transmission extension housing rear bushing worn
Trouble
Noise
2 1 4 3
Vibration 3 4 2 1
