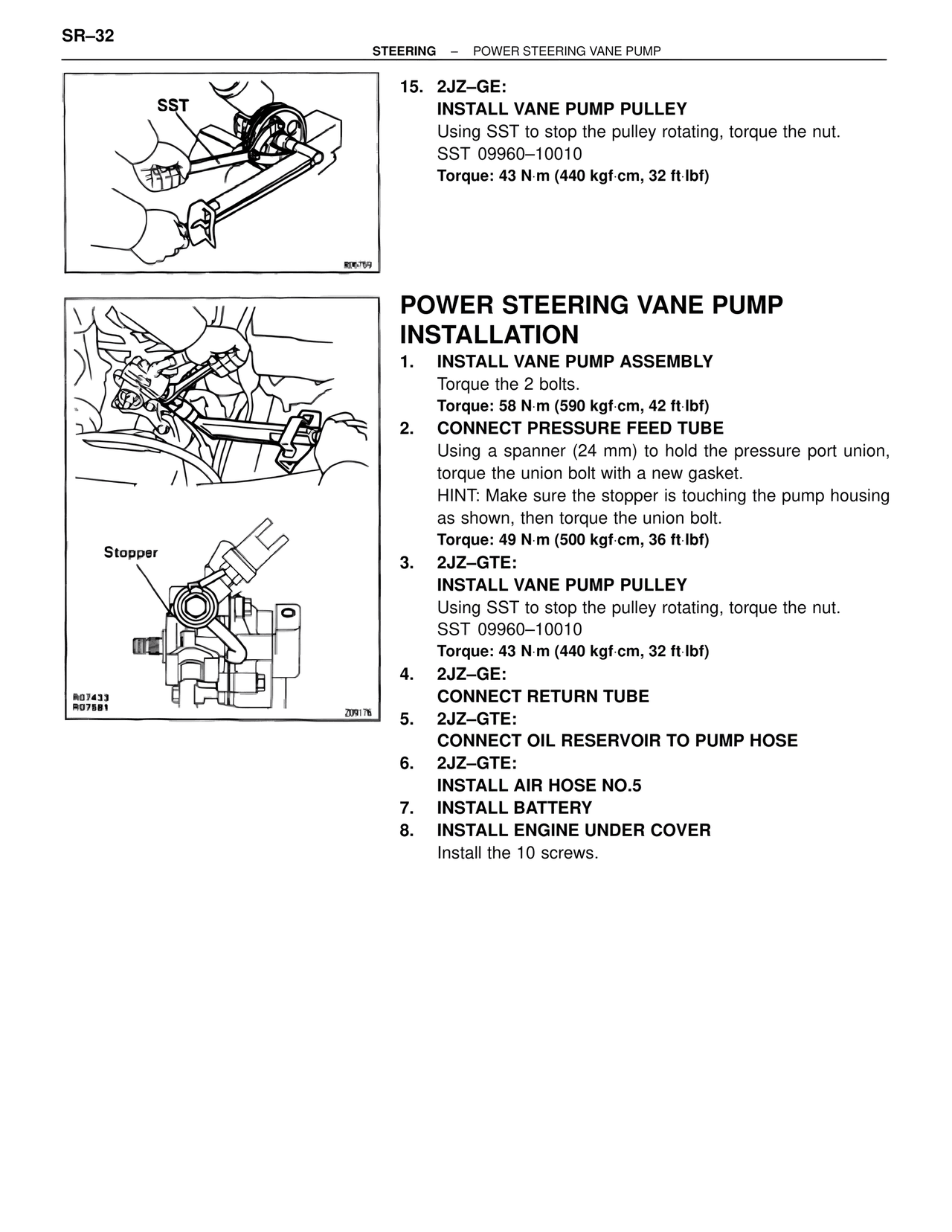

SR–32
STEERING – POWER STEERING VANE PUMP
SST
R06759
15. 2JZ–GE:
INSTALL VANE PUMP PULLEY
Using SST to stop the pulley rotating, torque the nut.
SST 09960–10010
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
POWER STEERING VANE PUMP
INSTALLATION
1. INSTALL VANE PUMP ASSEMBLY
Torque the 2 bolts.
Torque: 58 N·m (590 kgf·cm, 42 ft·lbf)
2. CONNECT PRESSURE FEED TUBE
Using a spanner (24 mm) to hold the pressure port union,
torque the union bolt with a new gasket.
HINT: Make sure the stopper is touching the pump housing
as shown, then torque the union bolt.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
3. 2JZ–GTE:
INSTALL VANE PUMP PULLEY
Using SST to stop the pulley rotating, torque the nut.
SST 09960–10010
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
4. 2JZ–GE:
CONNECT RETURN TUBE
5. 2JZ–GTE:
CONNECT OIL RESERVOIR TO PUMP HOSE
6. 2JZ–GTE:
INSTALL AIR HOSE NO.5
7. INSTALL BATTERY
8. INSTALL ENGINE UNDER COVER
Install the 10 screws.
Stopper
R07433
R07581
209176
