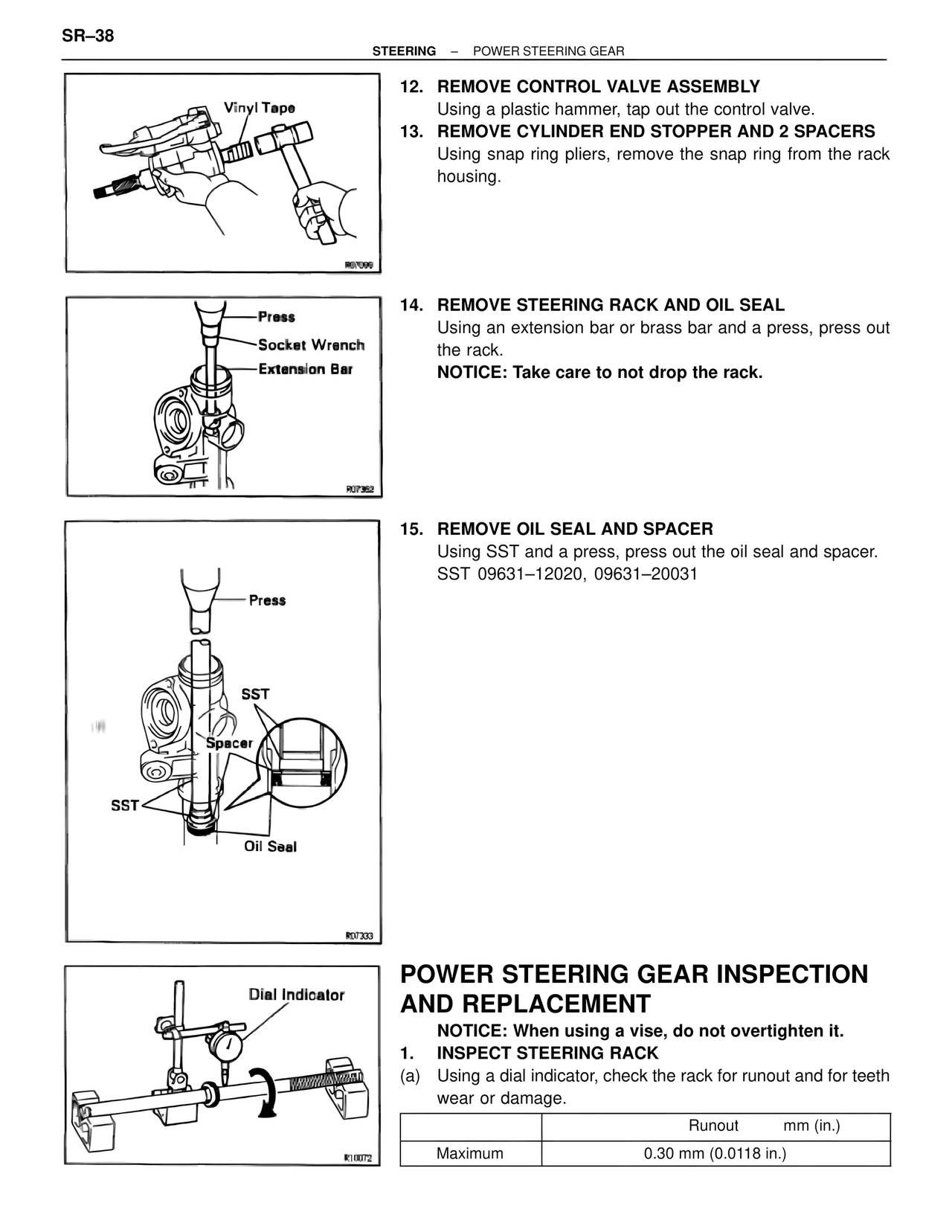

SR–38
STEERING – POWER STEERING GEAR
Vinyl Tape
R07099
12. REMOVE CONTROL VALVE ASSEMBLY
Using a plastic hammer, tap out the control valve.
13. REMOVE CYLINDER END STOPPER AND 2 SPACERS
Using snap ring pliers, remove the snap ring from the rack
housing.
Press
Socket Wrench
Extension Bar
R07352
14. REMOVE STEERING RACK AND OIL SEAL
Using an extension bar or brass bar and a press, press out
the rack.
NOTICE: Take care to not drop the rack.
Press
SST
Spacer
SST
Oil Seal
R07333
15. REMOVE OIL SEAL AND SPACER
Using SST and a press, press out the oil seal and spacer.
SST 09631–12020, 09631–20031
Dial Indicator
R10072
POWER STEERING GEAR INSPECTION
AND REPLACEMENT
NOTICE: When using a vise, do not overtighten it.
1. INSPECT STEERING RACK
(a) Using a dial indicator, check the rack for runout and for teeth
wear or damage.
Runout mm (in.)
Maximum 0.30 mm (0.0118 in.)
