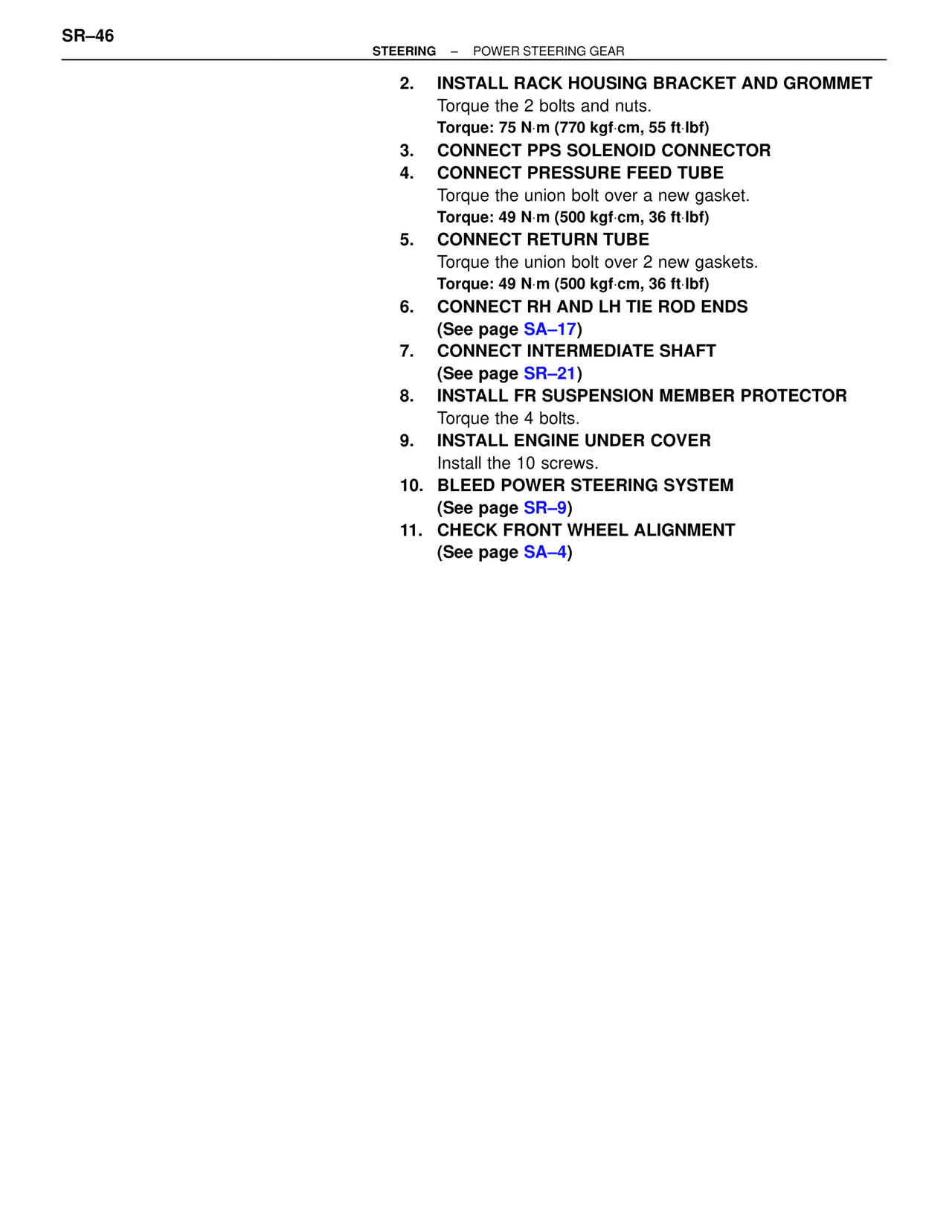

SR–46
STEERING – POWER STEERING GEAR
2. INSTALL RACK HOUSING BRACKET AND GROMMET
Torque the 2 bolts and nuts.
Torque: 75 N·m (770 kgf·cm, 55 ft·lbf)
3. CONNECT PPS SOLENOID CONNECTOR
4. CONNECT PRESSURE FEED TUBE
Torque the union bolt over a new gasket.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
5. CONNECT RETURN TUBE
Torque the union bolt over 2 new gaskets.
Torque: 49 N·m (500 kgf·cm, 36 ft·lbf)
6. CONNECT RH AND LH TIE ROD ENDS
(See page SA–17)
7. CONNECT INTERMEDIATE SHAFT
(See page SR–21)
8. INSTALL FR SUSPENSION MEMBER PROTECTOR
Torque the 4 bolts.
9. INSTALL ENGINE UNDER COVER
Install the 10 screws.
10. BLEED POWER STEERING SYSTEM
(See page SR–9)
11. CHECK FRONT WHEEL ALIGNMENT
(See page SA–4)
