SR–50
STEERING – ELECTRONIC CONTROL SYSTEM

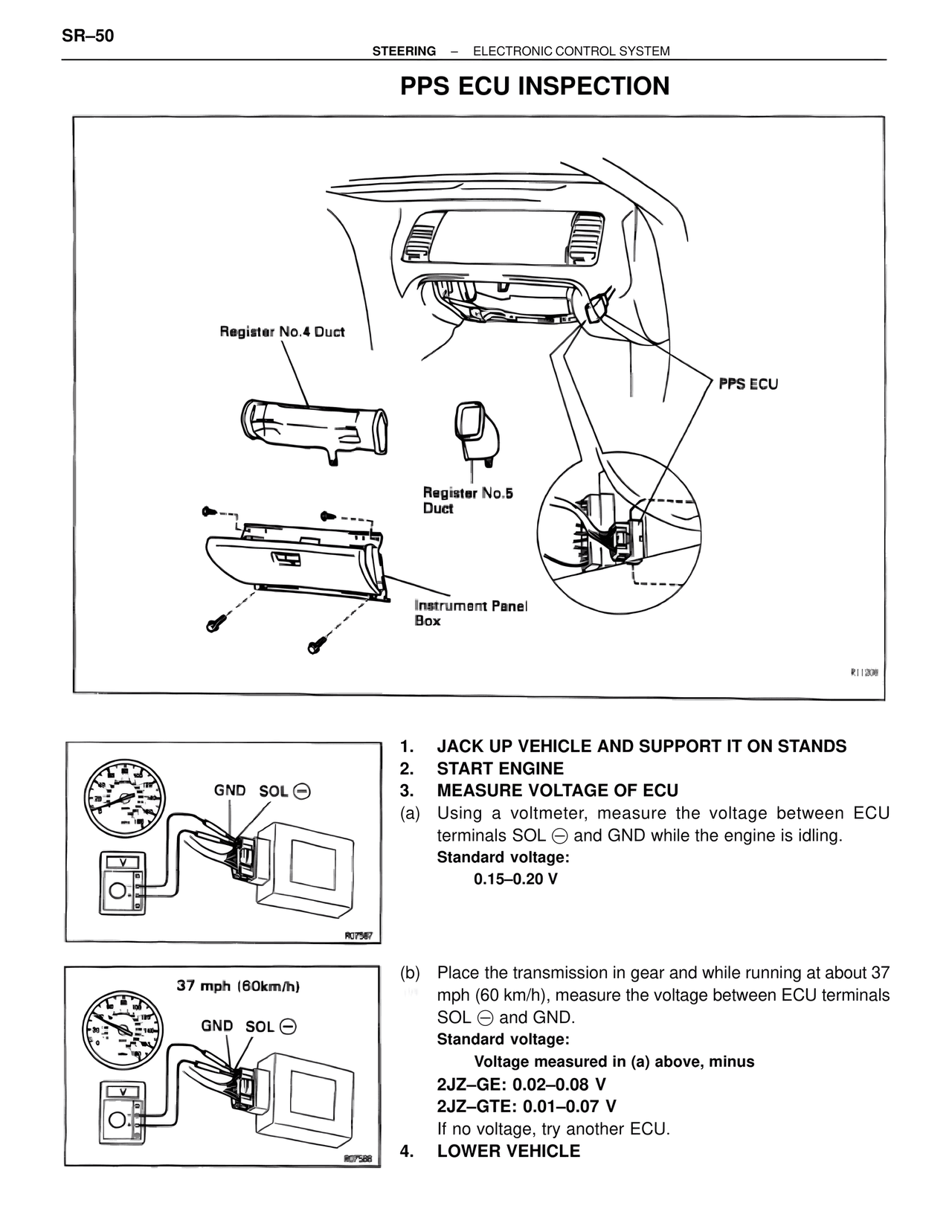

PPS ECU INSPECTION
Register No.4 Duct
Register No.5 Duct
PPS ECU
Instrument Panel Box
R11308
GND SOL ⊖
R07587
1. JACK UP VEHICLE AND SUPPORT IT ON STANDS
2. START ENGINE
3. MEASURE VOLTAGE OF ECU
(a) Using a voltmeter, measure the voltage between ECU terminals SOL ⊖ and GND while the engine is idling.
Standard voltage:
0.15–0.20 V
37 mph (60km/h)
GND SOL ⊖
R07588
(b) Place the transmission in gear and while running at about 37 mph (60 km/h), measure the voltage between ECU terminals SOL ⊖ and GND.
Standard voltage:
Voltage measured in (a) above, minus
2JZ–GE: 0.02–0.08 V
2JZ–GTE: 0.01–0.07 V
If no voltage, try another ECU.
4. LOWER VEHICLE
