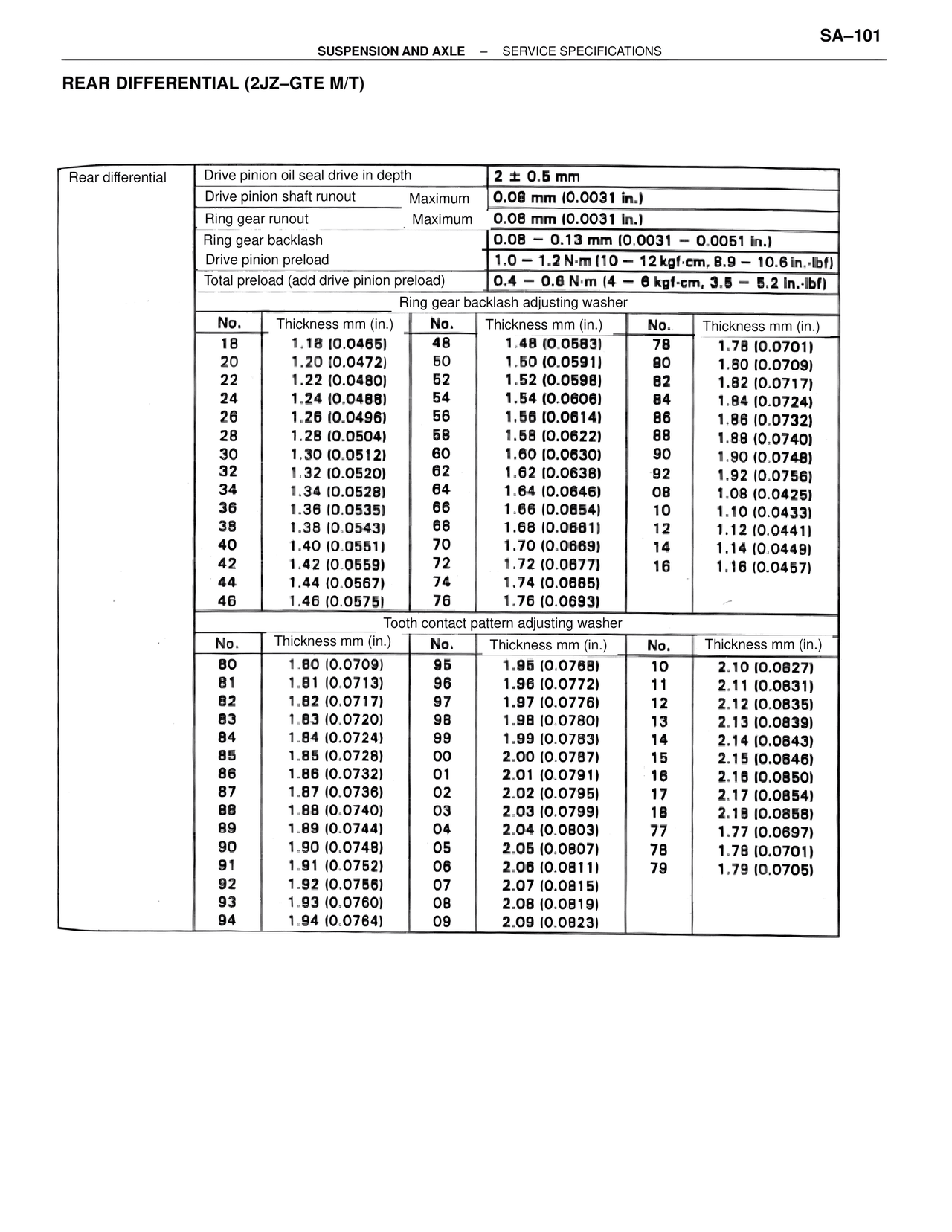

SA–101
SUSPENSION AND AXLE – SERVICE SPECIFICATIONS
REAR DIFFERENTIAL (2JZ–GTE M/T)
Rear differential | Drive pinion oil seal drive in depth | 2 ± 0.5 mm
Drive pinion shaft runout | Maximum | 0.08 mm (0.0031 in.)
Ring gear runout | Maximum | 0.08 mm (0.0031 in.)
Ring gear backlash | 0.08 – 0.13 mm (0.0031 – 0.0051 in.)
Drive pinion preload | 1.0 – 1.2 N·m (10 – 12 kgf·cm, 8.9 – 10.6 in.·lbf)
Total preload (add drive pinion preload) | 0.4 – 0.6 N·m (4 – 6 kgf·cm, 3.5 – 5.2 in.·lbf)
Ring gear backlash adjusting washer
No. | Thickness mm (in.) | No. | Thickness mm (in.) | No. | Thickness mm (in.)
18 | 1.18 (0.0465) | 48 | 1.48 (0.0583) | 78 | 1.78 (0.0701)
20 | 1.20 (0.0472) | 50 | 1.50 (0.0591) | 80 | 1.80 (0.0709)
22 | 1.22 (0.0480) | 52 | 1.52 (0.0598) | 82 | 1.82 (0.0717)
24 | 1.24 (0.0488) | 54 | 1.54 (0.0606) | 84 | 1.84 (0.0724)
26 | 1.26 (0.0496) | 56 | 1.56 (0.0614) | 86 | 1.86 (0.0732)
28 | 1.28 (0.0504) | 58 | 1.58 (0.0622) | 88 | 1.88 (0.0740)
30 | 1.30 (0.0512) | 60 | 1.60 (0.0630) | 90 | 1.90 (0.0748)
32 | 1.32 (0.0520) | 62 | 1.62 (0.0638) | 92 | 1.92 (0.0756)
34 | 1.34 (0.0528) | 64 | 1.64 (0.0646) | 08 | 1.08 (0.0425)
36 | 1.36 (0.0535) | 66 | 1.66 (0.0654) | 10 | 1.10 (0.0433)
38 | 1.38 (0.0543) | 68 | 1.68 (0.0661) | 12 | 1.12 (0.0441)
40 | 1.40 (0.0551) | 70 | 1.70 (0.0669) | 14 | 1.14 (0.0449)
42 | 1.42 (0.0559) | 72 | 1.72 (0.0677) | 16 | 1.16 (0.0457)
44 | 1.44 (0.0567) | 74 | 1.74 (0.0685)
46 | 1.46 (0.0575) | 76 | 1.76 (0.0693)
Tooth contact pattern adjusting washer
No. | Thickness mm (in.) | No. | Thickness mm (in.) | No. | Thickness mm (in.)
80 | 1.80 (0.0709) | 95 | 1.95 (0.0768) | 10 | 2.10 (0.0827)
81 | 1.81 (0.0713) | 96 | 1.96 (0.0772) | 11 | 2.11 (0.0831)
82 | 1.82 (0.0717) | 97 | 1.97 (0.0776) | 12 | 2.12 (0.0835)
83 | 1.83 (0.0720) | 98 | 1.98 (0.0780) | 13 | 2.13 (0.0839)
84 | 1.84 (0.0724) | 99 | 1.99 (0.0783) | 14 | 2.14 (0.0843)
85 | 1.85 (0.0728) | 00 | 2.00 (0.0787) | 15 | 2.15 (0.0846)
86 | 1.86 (0.0732) | 01 | 2.01 (0.0791) | 16 | 2.16 (0.0850)
87 | 1.87 (0.0736) | 02 | 2.02 (0.0795) | 17 | 2.17 (0.0854)
88 | 1.88 (0.0740) | 03 | 2.03 (0.0799) | 18 | 2.18 (0.0858)
89 | 1.89 (0.0744) | 04 | 2.04 (0.0803) | 77 | 1.77 (0.0697)
90 | 1.90 (0.0748) | 05 | 2.05 (0.0807) | 78 | 1.78 (0.0701)
91 | 1.91 (0.0752) | 06 | 2.06 (0.0811) | 79 | 1.79 (0.0705)
92 | 1.92 (0.0756) | 07 | 2.07 (0.0815)
93 | 1.93 (0.0760) | 08 | 2.08 (0.0819)
94 | 1.94 (0.0764) | 09 | 2.09 (0.0823)
