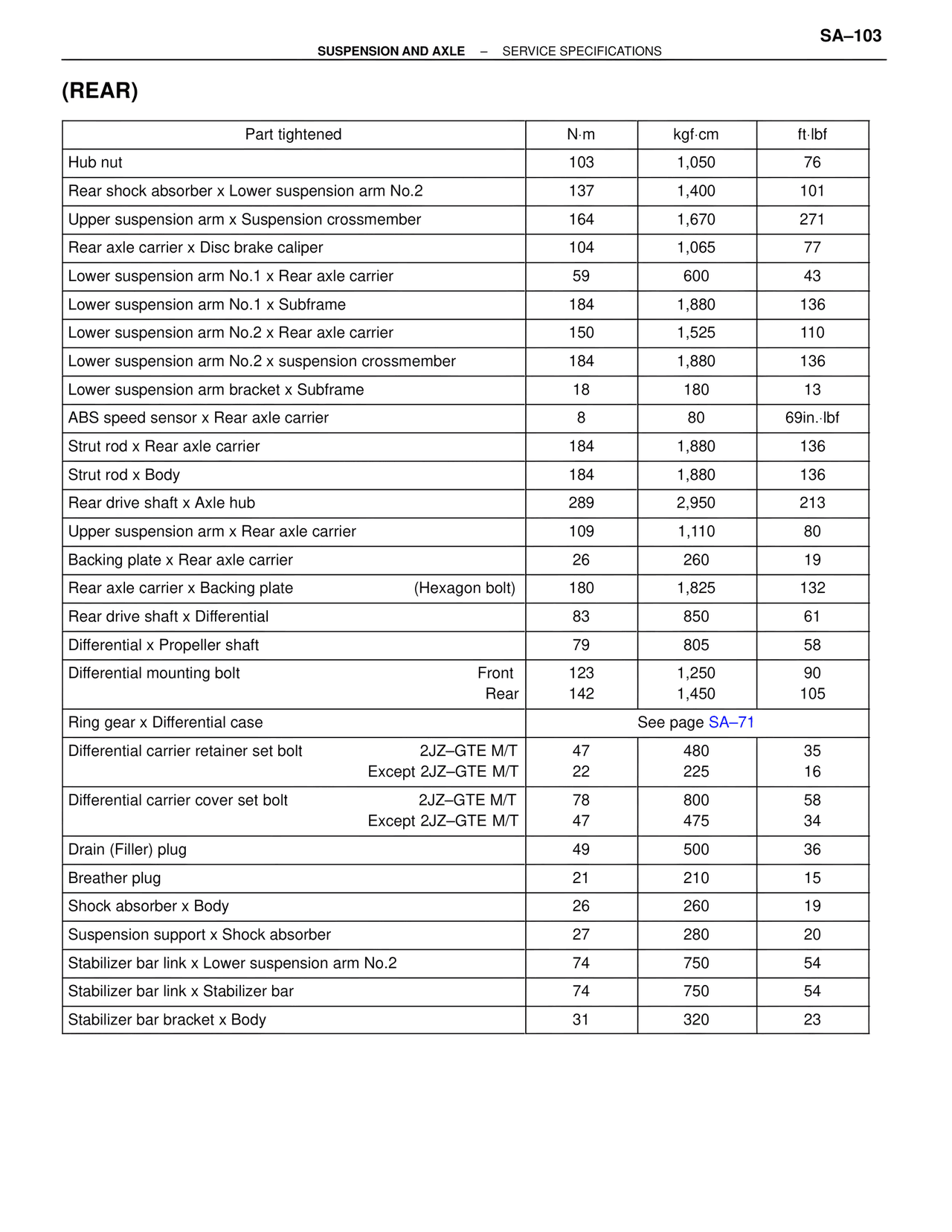

(REAR)
Part tightened N·m kgf·cm ft·lbf
Hub nut 103 1,050 76
Rear shock absorber x Lower suspension arm No.2 137 1,400 101
Upper suspension arm x Suspension crossmember 164 1,670 271
Rear axle carrier x Disc brake caliper 104 1,065 77
Lower suspension arm No.1 x Rear axle carrier 59 600 43
Lower suspension arm No.1 x Subframe 184 1,880 136
Lower suspension arm No.2 x Rear axle carrier 150 1,525 110
Lower suspension arm No.2 x suspension crossmember 184 1,880 136
Lower suspension arm bracket x Subframe 18 180 13
ABS speed sensor x Rear axle carrier 8 80 69in.·lbf
Strut rod x Rear axle carrier 184 1,880 136
Strut rod x Body 184 1,880 136
Rear drive shaft x Axle hub 289 2,950 213
Upper suspension arm x Rear axle carrier 109 1,110 80
Backing plate x Rear axle carrier 26 260 19
Rear axle carrier x Backing plate (Hexagon bolt) 180 1,825 132
Rear drive shaft x Differential 83 850 61
Differential x Propeller shaft 79 805 58
Differential mounting bolt Front 123 1,250 90
Rear 142 1,450 105
Ring gear x Differential case See page SA–71
Differential carrier retainer set bolt 2JZ–GTE M/T 47 480 35
Except 2JZ–GTE M/T 22 225 16
Differential carrier cover set bolt 2JZ–GTE M/T 78 800 58
Except 2JZ–GTE M/T 47 475 34
Drain (Filler) plug 49 500 36
Breather plug 21 210 15
Shock absorber x Body 26 260 19
Suspension support x Shock absorber 27 280 20
Stabilizer bar link x Lower suspension arm No.2 74 750 54
Stabilizer bar link x Stabilizer bar 74 750 54
Stabilizer bar bracket x Body 31 320 23
