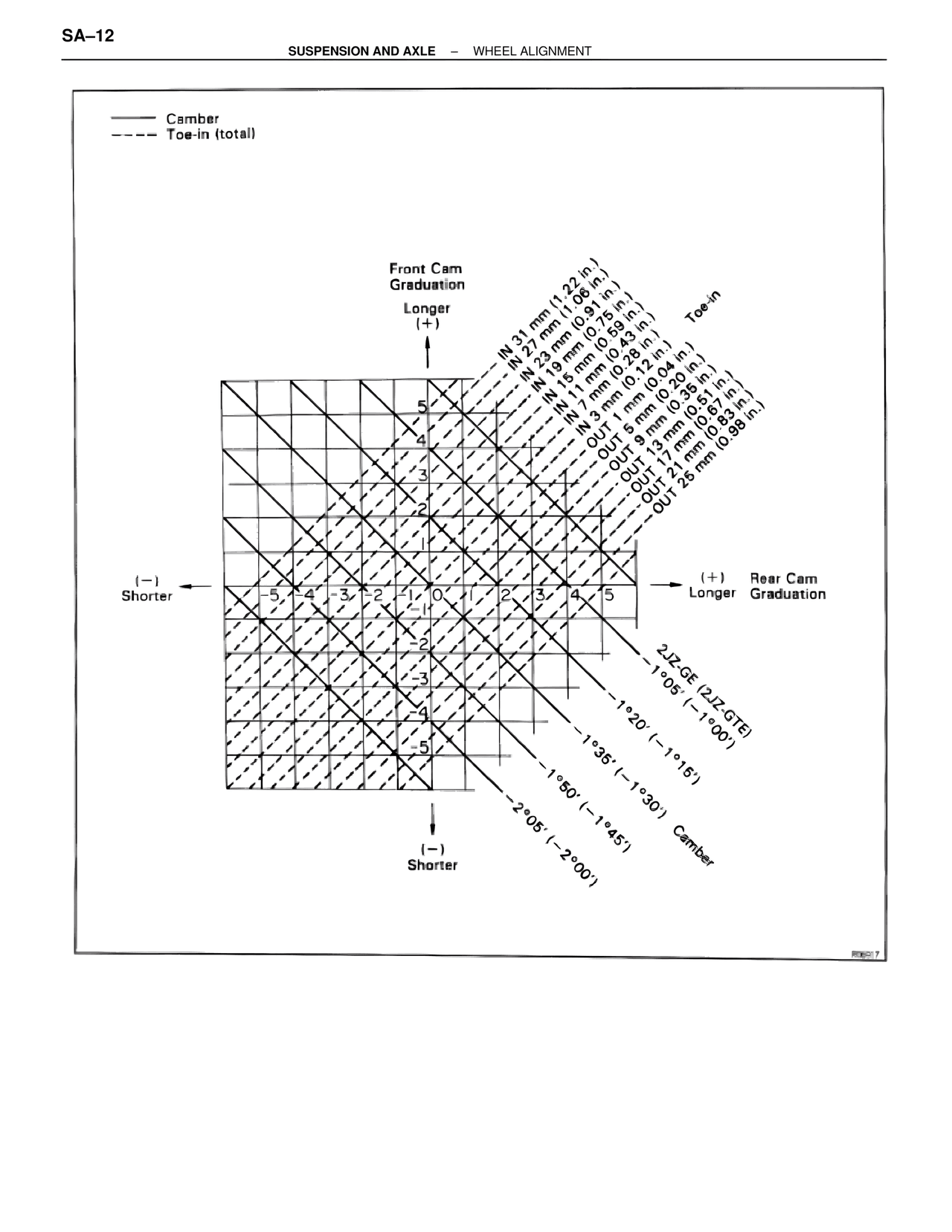

SA–12
SUSPENSION AND AXLE – WHEEL ALIGNMENT
—— Camber
---- Toe-in (total)
Front Cam
Graduation
Longer
(+)
IN 31 mm (1.22 in.)
IN 27 mm (1.06 in.)
IN 23 mm (0.91 in.)
IN 19 mm (0.75 in.)
IN 15 mm (0.59 in.)
IN 11 mm (0.43 in.)
IN 7 mm (0.28 in.)
IN 3 mm (0.12 in.)
OUT 1 mm (0.04 in.)
OUT 5 mm (0.20 in.)
OUT 9 mm (0.35 in.)
OUT 13 mm (0.51 in.)
OUT 17 mm (0.67 in.)
OUT 21 mm (0.83 in.)
OUT 25 mm (0.98 in.)
Toe-in
5
4
3
2
1
0
-1
-2
-3
-4
-5
(–)
Shorter
-5 -4 -3 -2 -1 0 1 2 3 4 5
(+) Longer Rear Cam
Graduation
2JZ-GE (2JZ-GTE)
-1°05' (-1°00')
-1°20' (-1°15')
-1°35' (-1°30')
-1°50' (-1°45')
-2°05' (-2°00')
Camber
(–)
Shorter
R06S17
