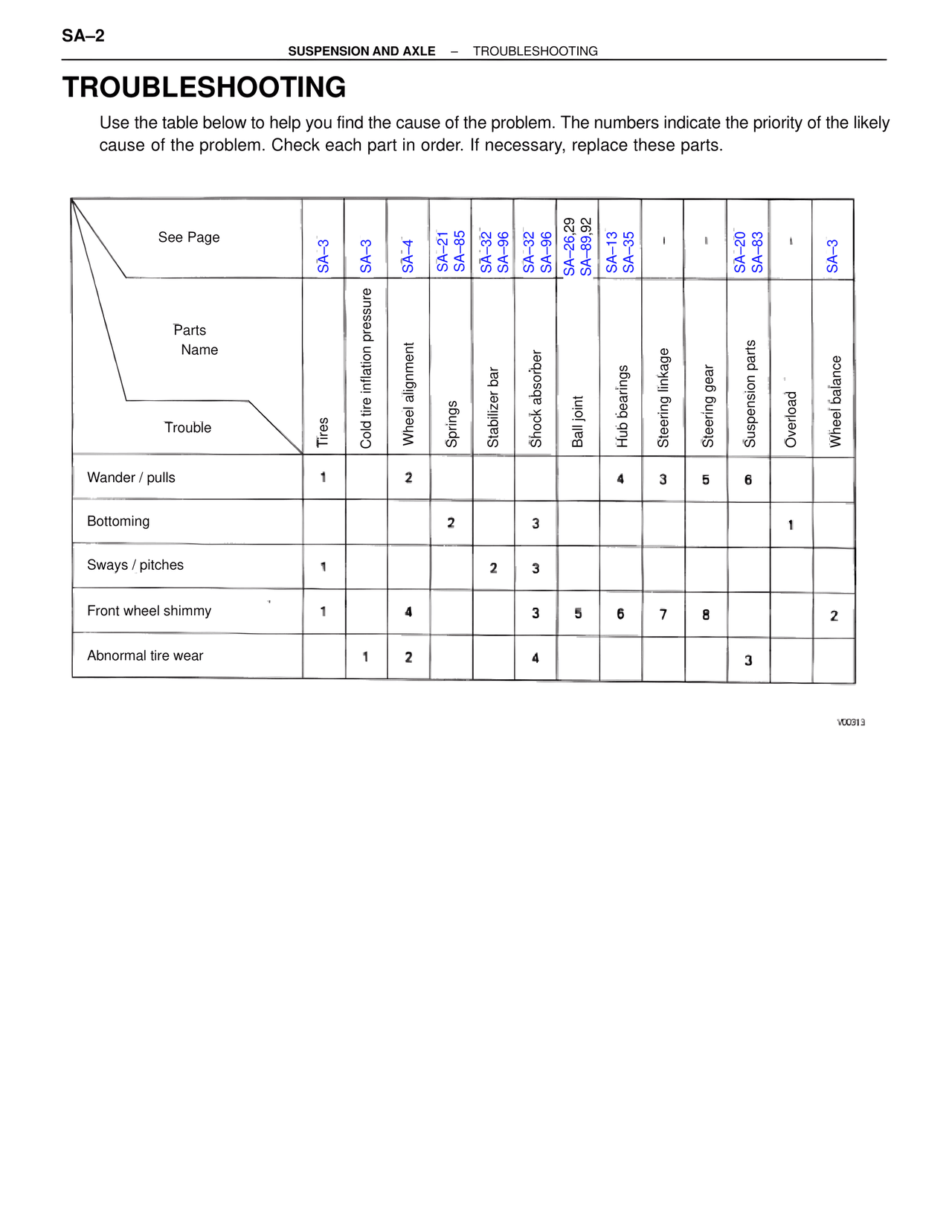

SA–2
SUSPENSION AND AXLE – TROUBLESHOOTING
TROUBLESHOOTING
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
See Page
SA-3
SA-3
SA-4
SA-21
SA-85
SA-32
SA-96
SA-32
SA-96
SA-26,29
SA-89,92
SA-13
SA-35
I
I
SA-20
SA-83
I
SA-3
Parts
Name
Tires
Cold tire inflation pressure
Wheel alignment
Springs
Stabilizer bar
Shock absorber
Ball joint
Hub bearings
Steering linkage
Steering gear
Suspension parts
Overload
Wheel balance
Trouble
Wander / pulls
1
2
4
3
5
6
Bottoming
2
3
1
Sways / pitches
1
2
3
Front wheel shimmy
1
4
3
5
6
7
8
2
Abnormal tire wear
1
2
4
3
V00913
