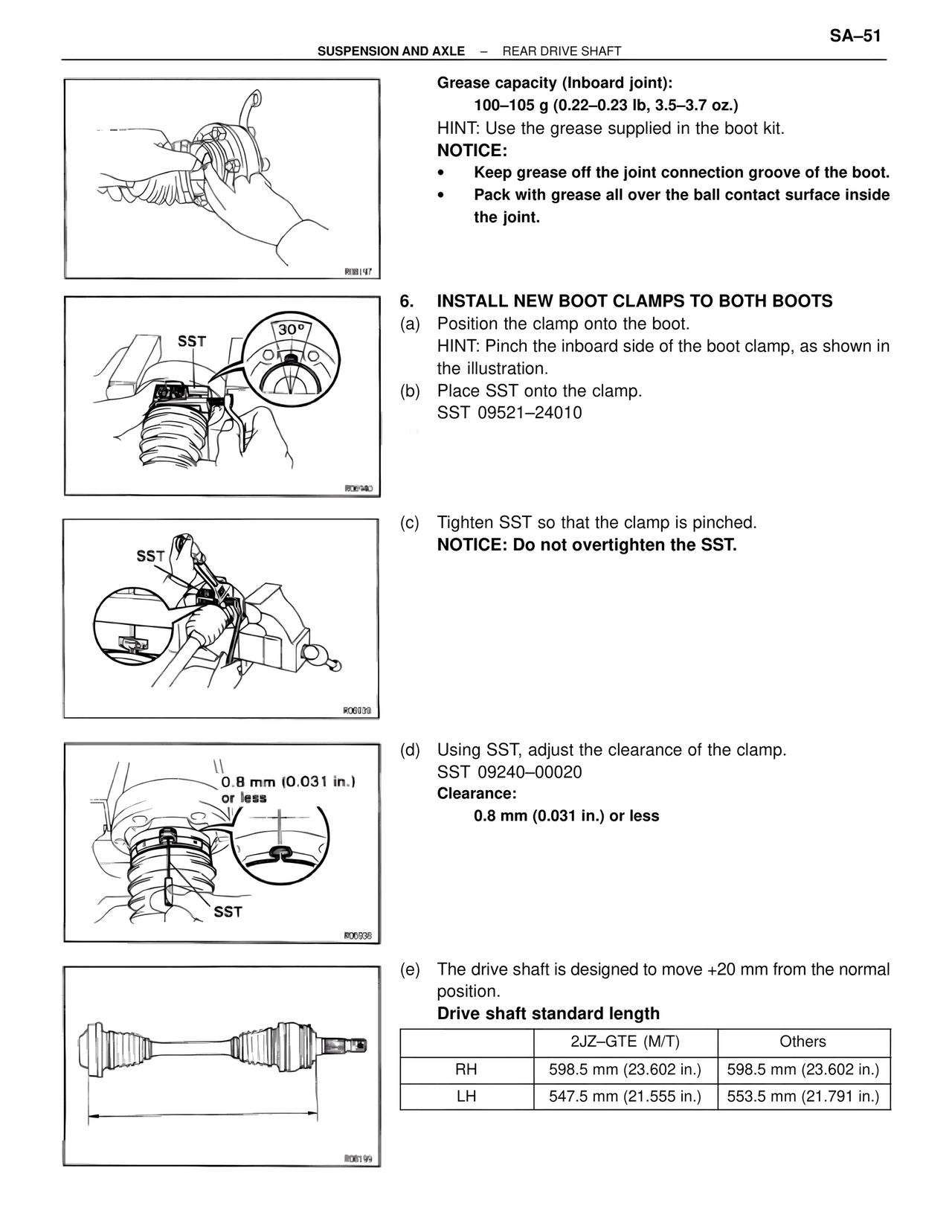

SA–51
SUSPENSION AND AXLE – REAR DRIVE SHAFT
Grease capacity (Inboard joint):
100–105 g (0.22–0.23 lb, 3.5–3.7 oz.)
HINT: Use the grease supplied in the boot kit.
NOTICE:
• Keep grease off the joint connection groove of the boot.
• Pack with grease all over the ball contact surface inside the joint.
6. INSTALL NEW BOOT CLAMPS TO BOTH BOOTS
(a) Position the clamp onto the boot.
HINT: Pinch the inboard side of the boot clamp, as shown in the illustration.
(b) Place SST onto the clamp.
SST 09521–24010
30°
SST
(c) Tighten SST so that the clamp is pinched.
NOTICE: Do not overtighten the SST.
SST
(d) Using SST, adjust the clearance of the clamp.
SST 09240–00020
Clearance:
0.8 mm (0.031 in.) or less
0.8 mm (0.031 in.)
or less
SST
(e) The drive shaft is designed to move +20 mm from the normal position.
Drive shaft standard length
| | 2JZ–GTE (M/T) | Others |
| RH | 598.5 mm (23.602 in.) | 598.5 mm (23.602 in.) |
| LH | 547.5 mm (21.555 in.) | 553.5 mm (21.791 in.) |
