SA–62
SUSPENSION AND AXLE – REAR DIFFERENTIAL

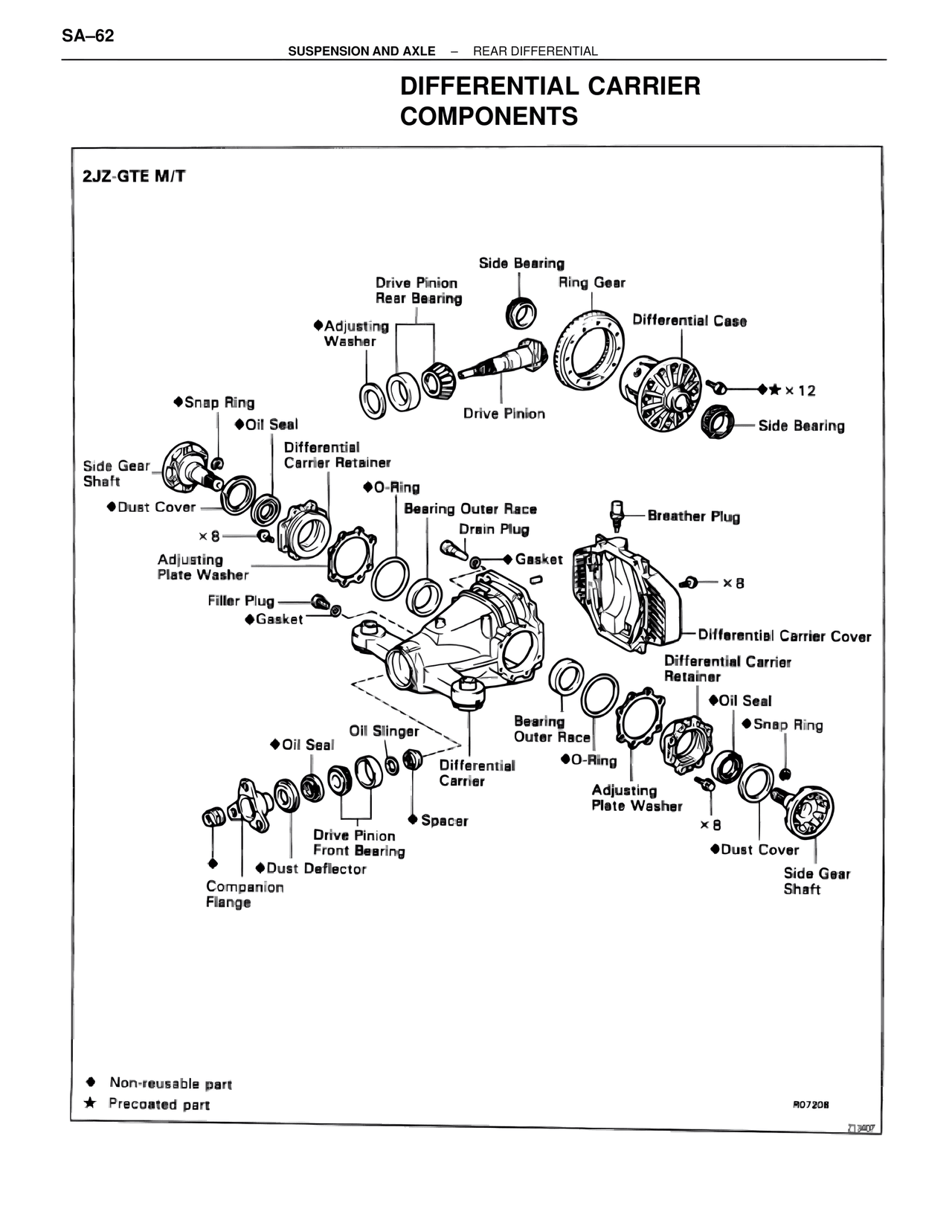

DIFFERENTIAL CARRIER COMPONENTS
2JZ-GTE M/T
Side Bearing
Drive Pinion
Rear Bearing
Ring Gear
♦Adjusting
Washer
Differential Case
Drive Pinion
♦Snap Ring
♦ × 12
♦Oil Seal
Side Bearing
Differential
Carrier Retainer
Side Gear
Shaft
♦O-Ring
Bearing Outer Race
♦Dust Cover
Drain Plug
Breather Plug
× 8
♦Gasket
Adjusting
Plate Washer
Filler Plug
× 8
♦Gasket
Differential Carrier Cover
Differential Carrier
Retainer
♦Oil Seal
♦Oil Seal
Oil Slinger
Bearing
Outer Race
♦Snap Ring
Differential
Carrier
♦O-Ring
♦Spacer
Adjusting
Plate Washer
Drive Pinion
Front Bearing
× 8
♦Dust Deflector
♦Dust Cover
Companion
Flange
Side Gear
Shaft
♦ Non-reusable part
★ Precoated part
R07208
Z13407
