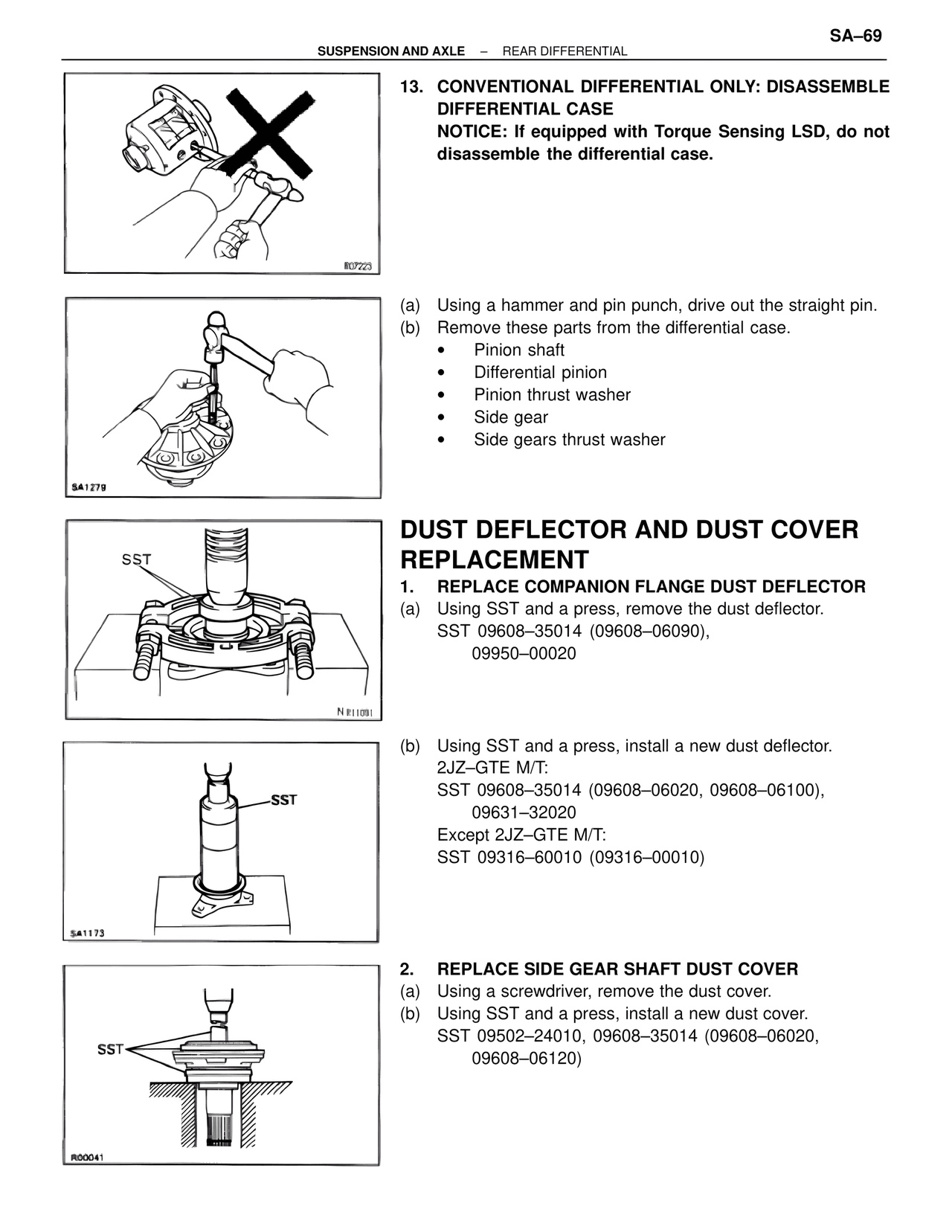

SA–69
SUSPENSION AND AXLE – REAR DIFFERENTIAL
13. CONVENTIONAL DIFFERENTIAL ONLY: DISASSEMBLE DIFFERENTIAL CASE
NOTICE: If equipped with Torque Sensing LSD, do not disassemble the differential case.
(a) Using a hammer and pin punch, drive out the straight pin.
(b) Remove these parts from the differential case.
• Pinion shaft
• Differential pinion
• Pinion thrust washer
• Side gear
• Side gears thrust washer
DUST DEFLECTOR AND DUST COVER REPLACEMENT
1. REPLACE COMPANION FLANGE DUST DEFLECTOR
(a) Using SST and a press, remove the dust deflector.
SST 09608–35014 (09608–06090),
09950–00020
(b) Using SST and a press, install a new dust deflector.
2JZ–GTE M/T:
SST 09608–35014 (09608–06020, 09608–06100),
09631–32020
Except 2JZ–GTE M/T:
SST 09316–60010 (09316–00010)
2. REPLACE SIDE GEAR SHAFT DUST COVER
(a) Using a screwdriver, remove the dust cover.
(b) Using SST and a press, install a new dust cover.
SST 09502–24010, 09608–35014 (09608–06020,
09608–06120)
