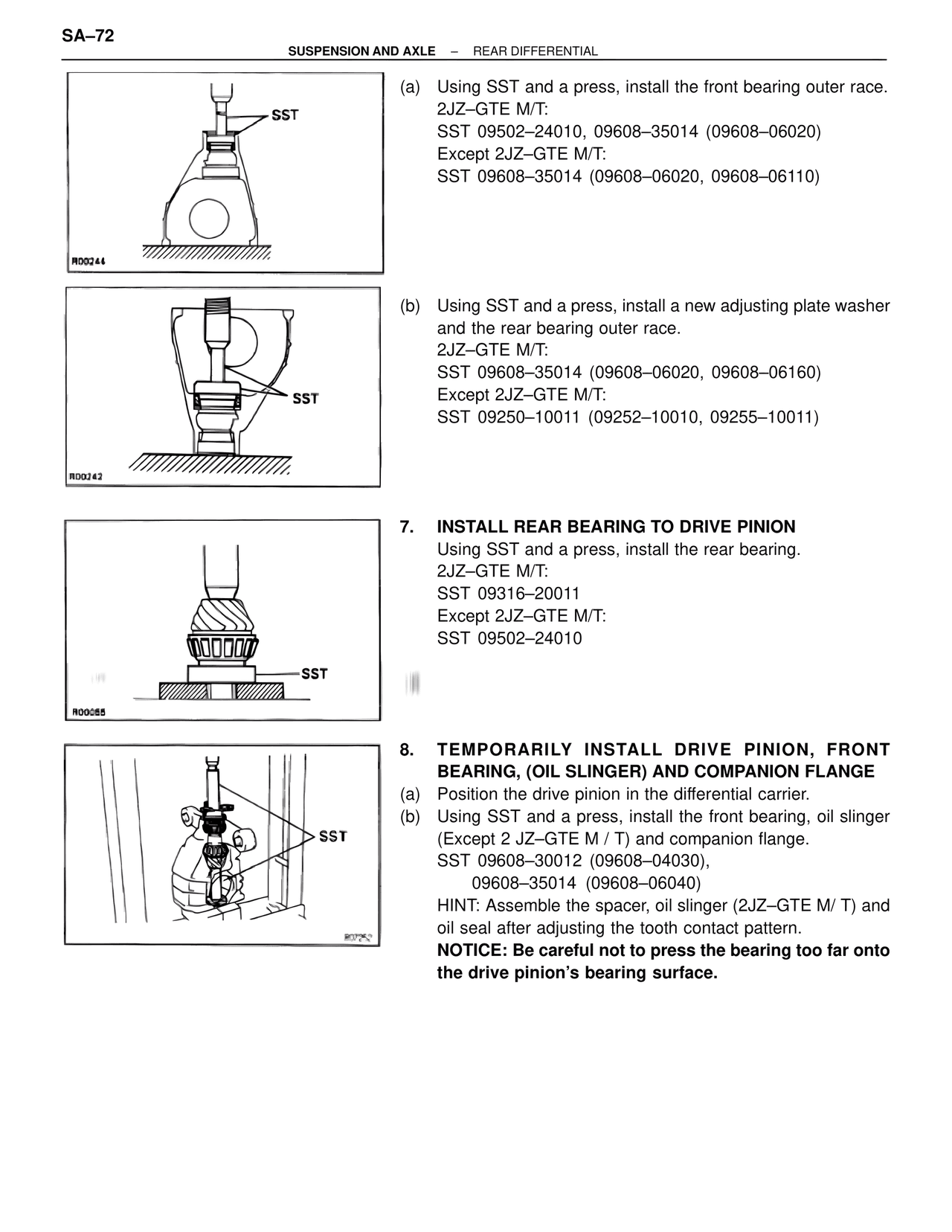

SA–72
SUSPENSION AND AXLE – REAR DIFFERENTIAL
(a) Using SST and a press, install the front bearing outer race.
2JZ–GTE M/T:
SST 09502–24010, 09608–35014 (09608–06020)
Except 2JZ–GTE M/T:
SST 09608–35014 (09608–06020, 09608–06110)
(b) Using SST and a press, install a new adjusting plate washer
and the rear bearing outer race.
2JZ–GTE M/T:
SST 09608–35014 (09608–06020, 09608–06160)
Except 2JZ–GTE M/T:
SST 09250–10011 (09252–10010, 09255–10011)
7. INSTALL REAR BEARING TO DRIVE PINION
Using SST and a press, install the rear bearing.
2JZ–GTE M/T:
SST 09316–20011
Except 2JZ–GTE M/T:
SST 09502–24010
8. TEMPORARILY INSTALL DRIVE PINION, FRONT
BEARING, (OIL SLINGER) AND COMPANION FLANGE
(a) Position the drive pinion in the differential carrier.
(b) Using SST and a press, install the front bearing, oil slinger
(Except 2 JZ–GTE M / T) and companion flange.
SST 09608–30012 (09608–04030),
09608–35014 (09608–06040)
HINT: Assemble the spacer, oil slinger (2JZ–GTE M/ T) and
oil seal after adjusting the tooth contact pattern.
NOTICE: Be careful not to press the bearing too far onto
the drive pinion's bearing surface.
