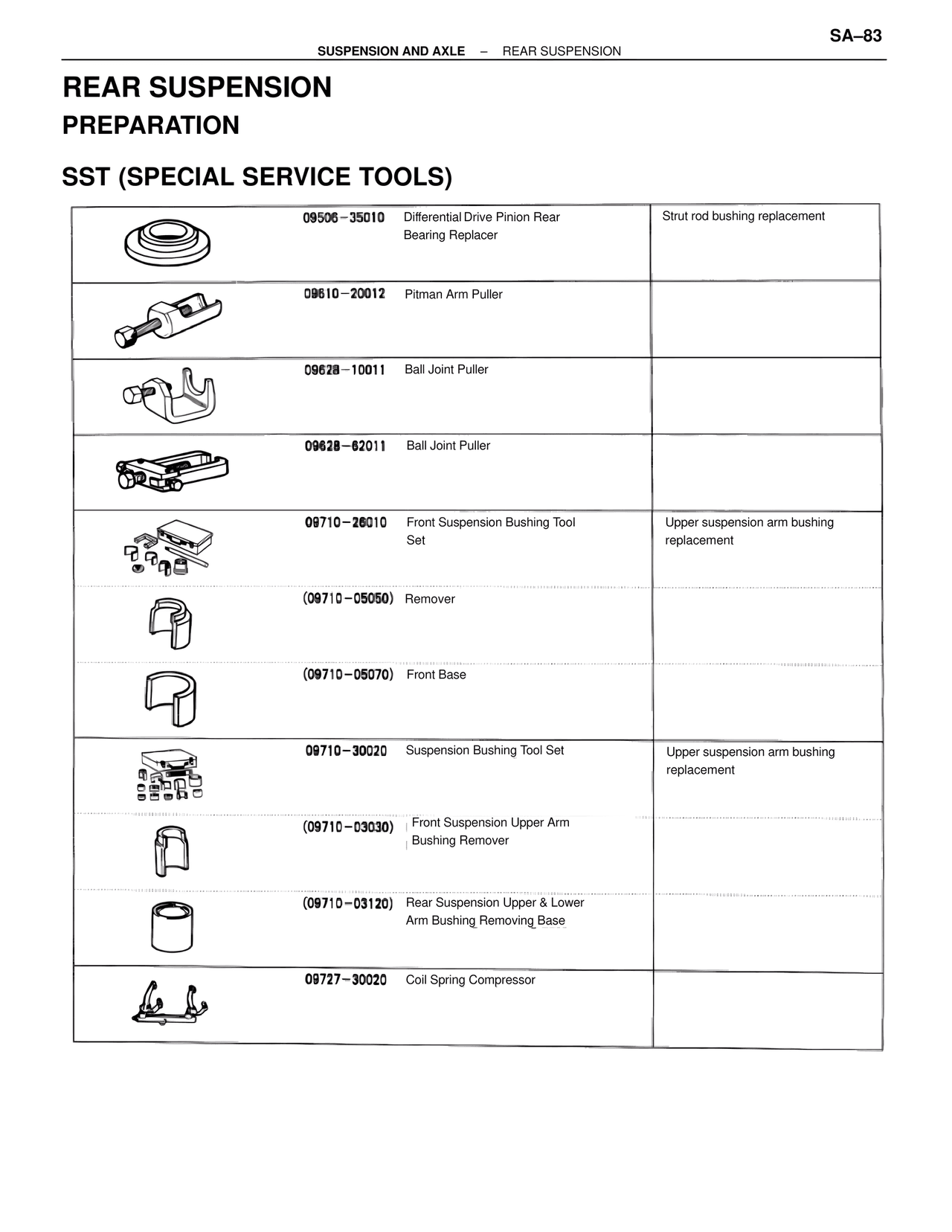

REAR SUSPENSION
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09506–35010 Differential Drive Pinion Rear Bearing Replacer Strut rod bushing replacement
09610–20012 Pitman Arm Puller
09628–10011 Ball Joint Puller
09628–62011 Ball Joint Puller
09710–26010 Front Suspension Bushing Tool Set Upper suspension arm bushing replacement
(09710–05050) Remover
(09710–05070) Front Base
09710–30020 Suspension Bushing Tool Set Upper suspension arm bushing replacement
(09710–03030) Front Suspension Upper Arm Bushing Remover
(09710–03120) Rear Suspension Upper & Lower Arm Bushing Removing Base
09727–30020 Coil Spring Compressor
