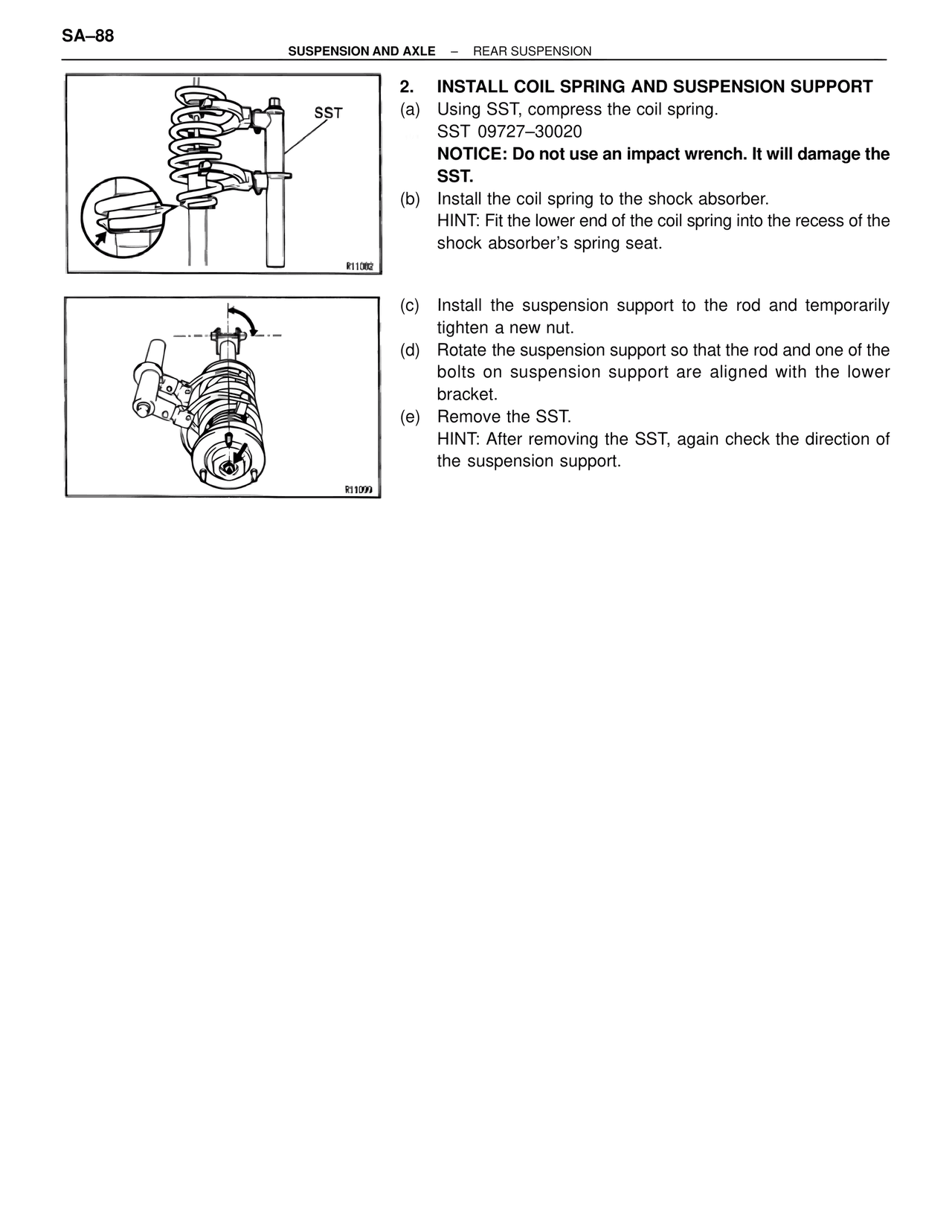

SA–88 SUSPENSION AND AXLE – REAR SUSPENSION SST R11002 R11099 2. INSTALL COIL SPRING AND SUSPENSION SUPPORT (a) Using SST, compress the coil spring. SST 09727–30020 NOTICE: Do not use an impact wrench. It will damage the SST. (b) Install the coil spring to the shock absorber. HINT: Fit the lower end of the coil spring into the recess of the shock absorber's spring seat. (c) Install the suspension support to the rod and temporarily tighten a new nut. (d) Rotate the suspension support so that the rod and one of the bolts on suspension support are aligned with the lower bracket. (e) Remove the SST. HINT: After removing the SST, again check the direction of the suspension support.
