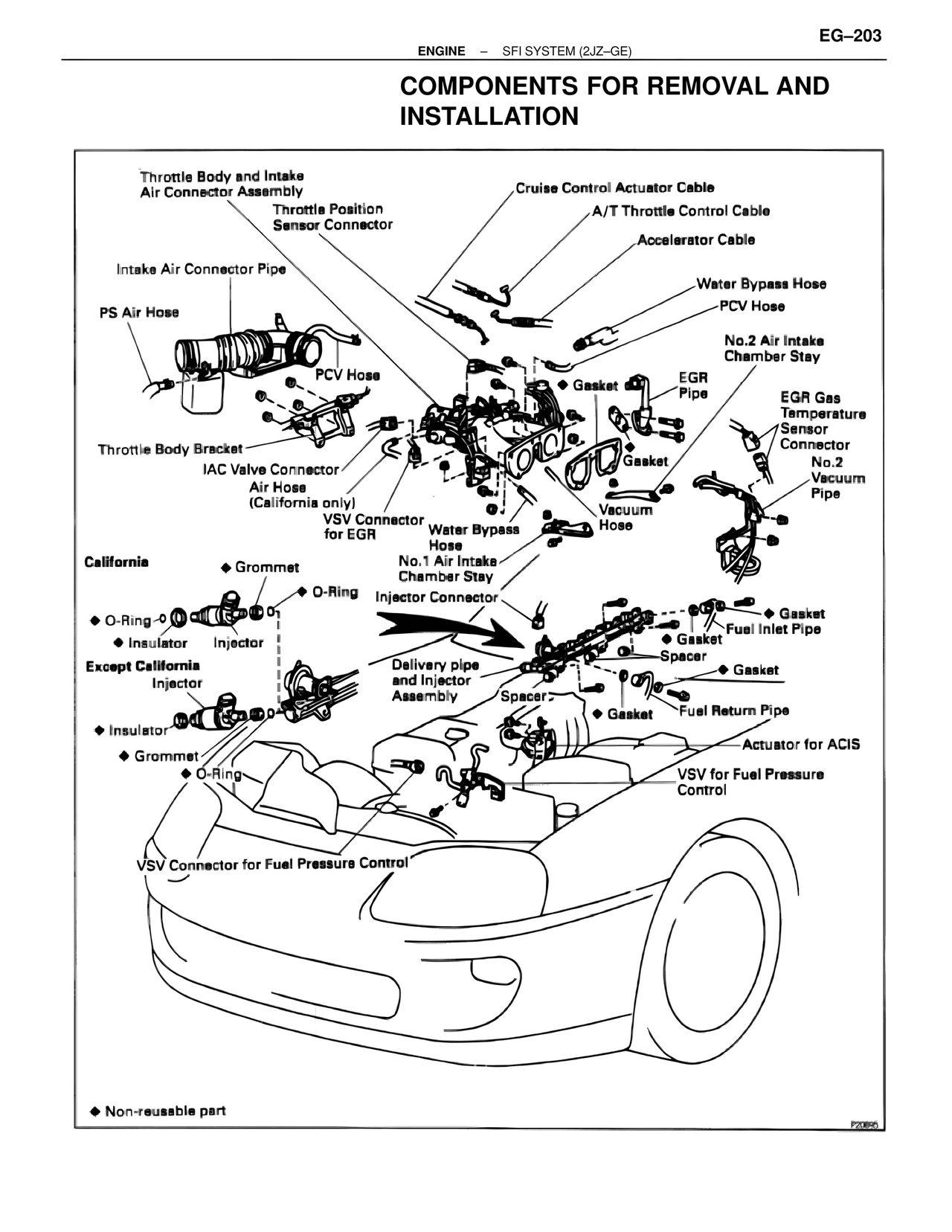

EG–203 ENGINE – SFI SYSTEM (2JZ–GE) COMPONENTS FOR REMOVAL AND INSTALLATION Throttle Body and Intake Air Connector Assembly Throttle Position Sensor Connector Cruise Control Actuator Cable A/T Throttle Control Cable Accelerator Cable Intake Air Connector Pipe PS Air Hose Water Bypass Hose PCV Hose No.2 Air Intake Chamber Stay PCV Hose EGR Pipe ♦ Gasket EGR Gas Temperature Sensor Connector No.2 Vacuum Pipe Throttle Body Bracket IAC Valve Connector Air Hose (California only) VSV Connector for EGR ♦ Gasket Vacuum Hose Water Bypass Hose No.1 Air Intake Chamber Stay Injector Connector California ♦ Grommet ♦ O-Ring ♦ Gasket ♦ Fuel Inlet Pipe ♦ O-Ring ♦ Insulator Injector Spacer ♦ Gasket Delivery pipe and Injector Assembly ♦ Gasket Except California Injector Spacer ♦ Gasket ♦ Insulator ♦ Fuel Return Pipe Actuator for ACIS ♦ Grommet ♦ O-Ring VSV for Fuel Pressure Control VSV Connector for Fuel Pressure Control ♦ Non-reusable part F20855
