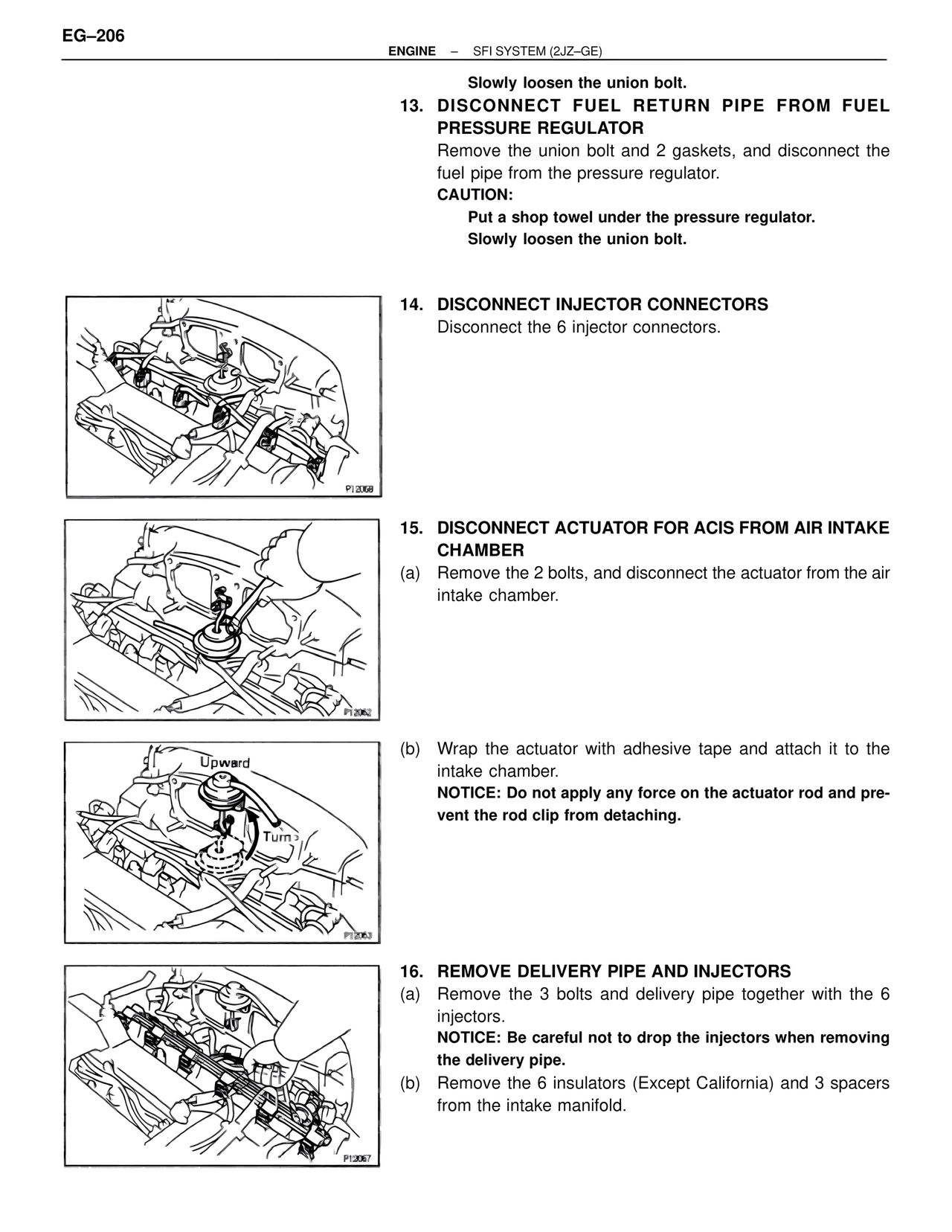

EG–206
ENGINE – SFI SYSTEM (2JZ–GE)
Slowly loosen the union bolt.
13. DISCONNECT FUEL RETURN PIPE FROM FUEL
PRESSURE REGULATOR
Remove the union bolt and 2 gaskets, and disconnect the
fuel pipe from the pressure regulator.
CAUTION:
Put a shop towel under the pressure regulator.
Slowly loosen the union bolt.
14. DISCONNECT INJECTOR CONNECTORS
Disconnect the 6 injector connectors.
P12068
15. DISCONNECT ACTUATOR FOR ACIS FROM AIR INTAKE
CHAMBER
(a) Remove the 2 bolts, and disconnect the actuator from the air
intake chamber.
P12062
Upward
Turn
(b) Wrap the actuator with adhesive tape and attach it to the
intake chamber.
NOTICE: Do not apply any force on the actuator rod and pre-
vent the rod clip from detaching.
P12063
16. REMOVE DELIVERY PIPE AND INJECTORS
(a) Remove the 3 bolts and delivery pipe together with the 6
injectors.
NOTICE: Be careful not to drop the injectors when removing
the delivery pipe.
(b) Remove the 6 insulators (Except California) and 3 spacers
from the intake manifold.
P12067
