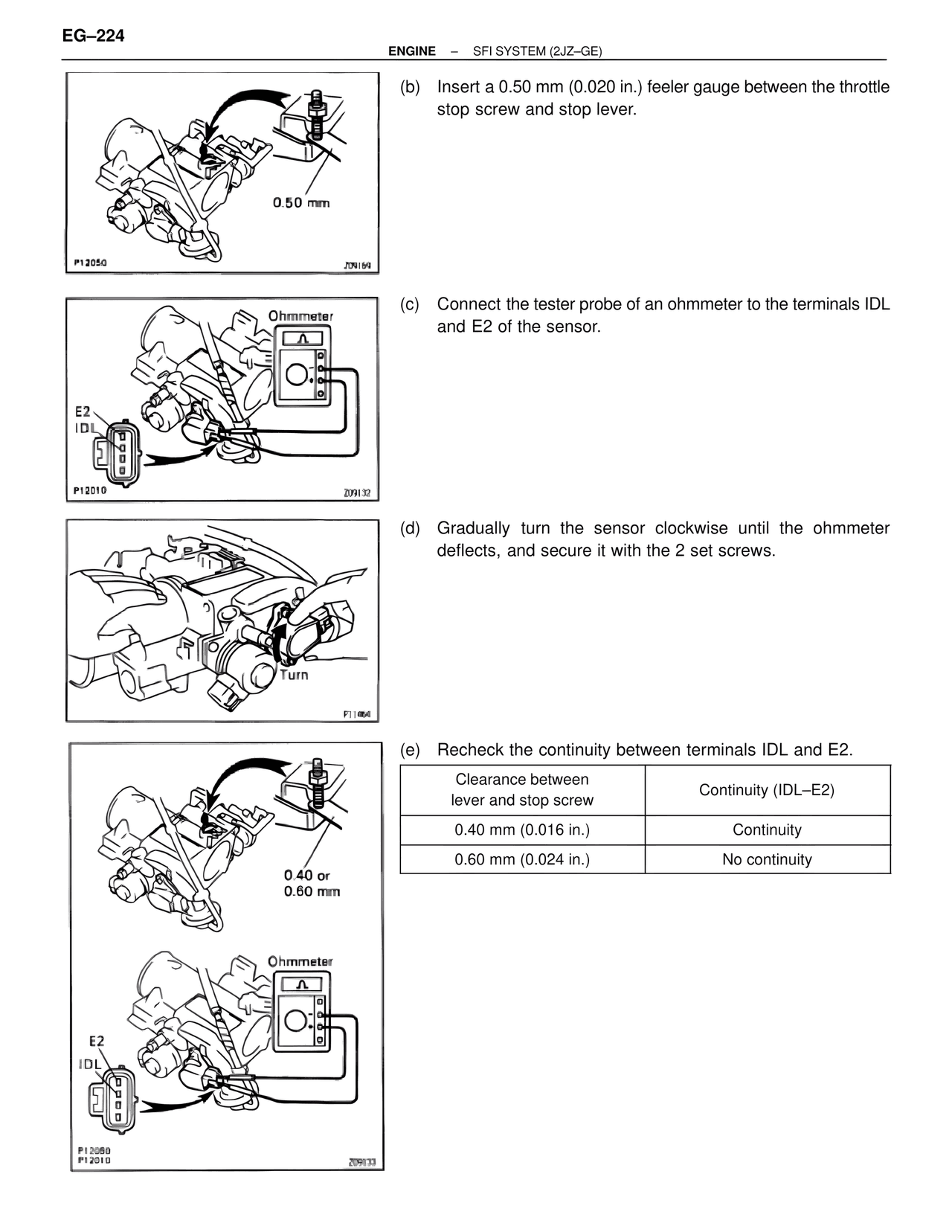

EG–224

ENGINE – SFI SYSTEM (2JZ–GE)

0.50 mm

P12050                                                     Z09169

(b)    Insert a 0.50 mm (0.020 in.) feeler gauge between the throttle
        stop screw and stop lever.

Ohmmeter

E2
IDL

P12010                                                     Z09132

(c)    Connect the tester probe of an ohmmeter to the terminals IDL
        and E2 of the sensor.

Turn

P11464

(d)    Gradually turn the sensor clockwise until the ohmmeter
        deflects, and secure it with the 2 set screws.

0.40 or
0.60 mm

Ohmmeter

E2
IDL

P12050
P12010                                                     Z09133

(e)    Recheck the continuity between terminals IDL and E2.

Clearance between
lever and stop screw          Continuity (IDL–E2)

0.40 mm (0.016 in.)                    Continuity

0.60 mm (0.024 in.)                 No continuity
