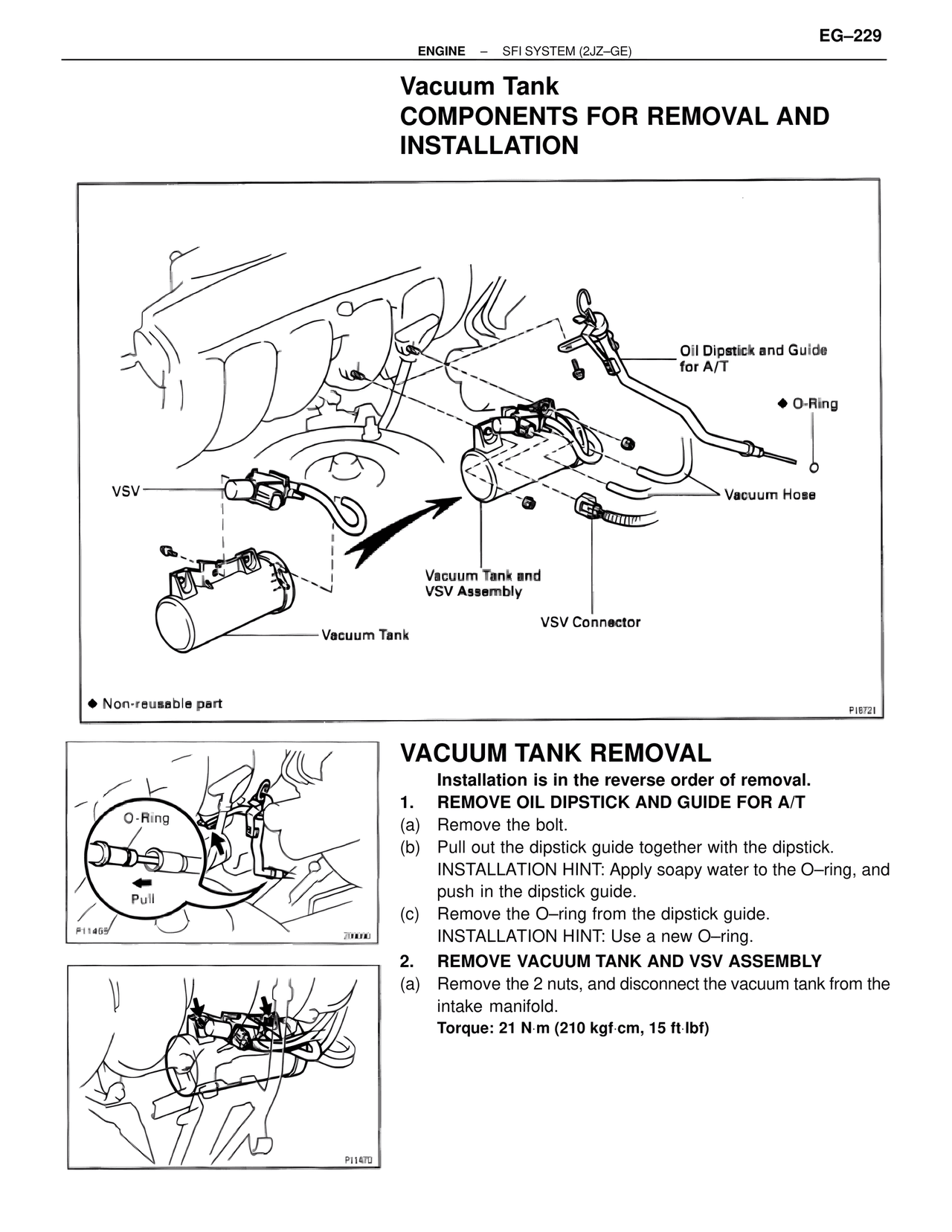

SFGE/SFI System 2JZ-GE — Vacuum Tank Components for Removal and Installation, page 43

EG–229
ENGINE – SFI SYSTEM (2JZ–GE)

Vacuum Tank
COMPONENTS FOR REMOVAL AND INSTALLATION

Oil Dipstick and Guide
for A/T
♦ O-Ring
VSV
Vacuum Hose
Vacuum Tank and
VSV Assembly
VSV Connector
Vacuum Tank
♦ Non-reusable part
P18721

O-Ring
Pull
P11469
200090

P11470

VACUUM TANK REMOVAL
Installation is in the reverse order of removal.
1. REMOVE OIL DIPSTICK AND GUIDE FOR A/T
(a) Remove the bolt.
(b) Pull out the dipstick guide together with the dipstick.
INSTALLATION HINT: Apply soapy water to the O–ring, and
push in the dipstick guide.
(c) Remove the O–ring from the dipstick guide.
INSTALLATION HINT: Use a new O–ring.
2. REMOVE VACUUM TANK AND VSV ASSEMBLY
(a) Remove the 2 nuts, and disconnect the vacuum tank from the
intake manifold.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
