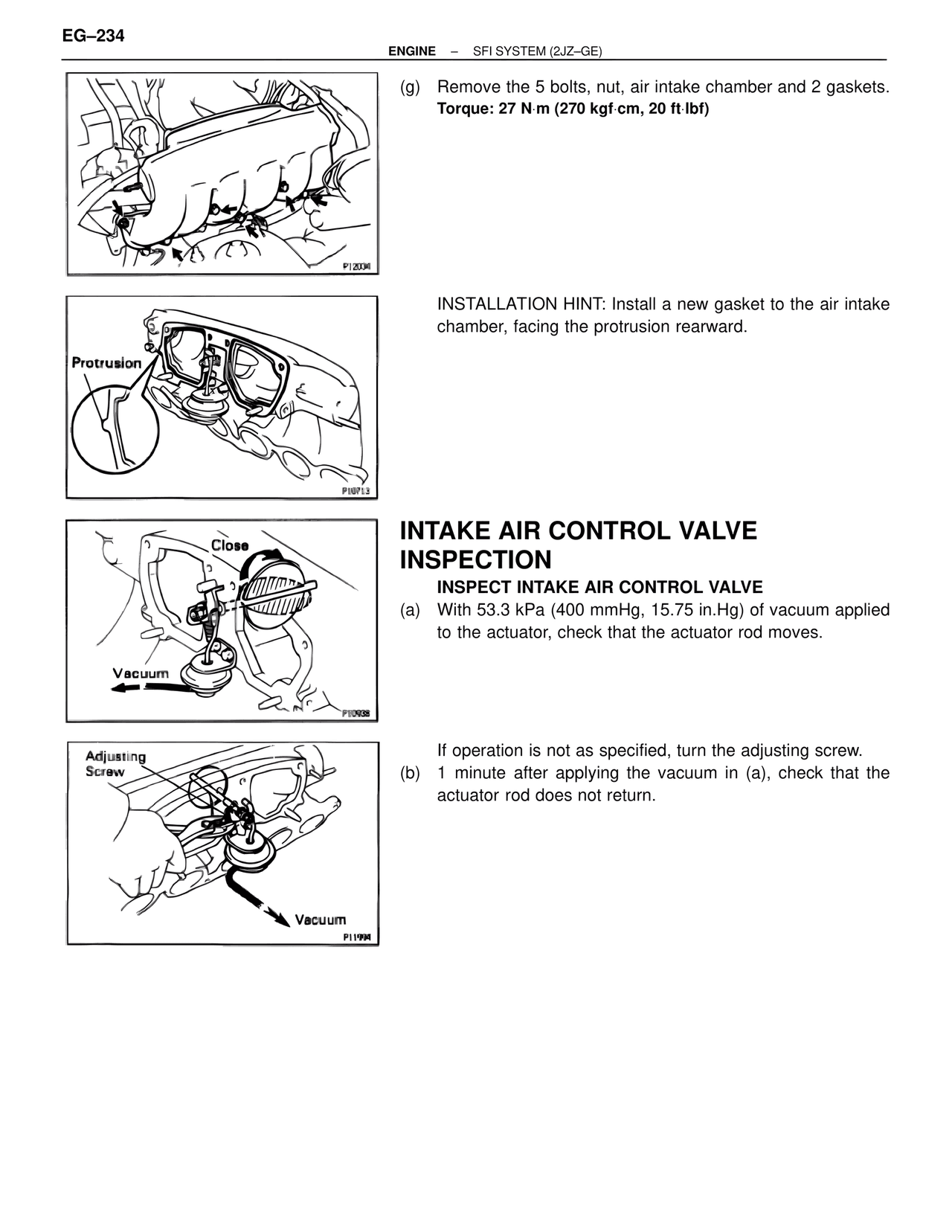

EG–234
ENGINE – SFI SYSTEM (2JZ–GE)
(g) Remove the 5 bolts, nut, air intake chamber and 2 gaskets.
Torque: 27 N·m (270 kgf·cm, 20 ft·lbf)
P12036
INSTALLATION HINT: Install a new gasket to the air intake
chamber, facing the protrusion rearward.
Protrusion
P10713
Close
Vacuum
P10938
INTAKE AIR CONTROL VALVE
INSPECTION
INSPECT INTAKE AIR CONTROL VALVE
(a) With 53.3 kPa (400 mmHg, 15.75 in.Hg) of vacuum applied
to the actuator, check that the actuator rod moves.
Adjusting
Screw
If operation is not as specified, turn the adjusting screw.
(b) 1 minute after applying the vacuum in (a), check that the
actuator rod does not return.
Vacuum
P11994
