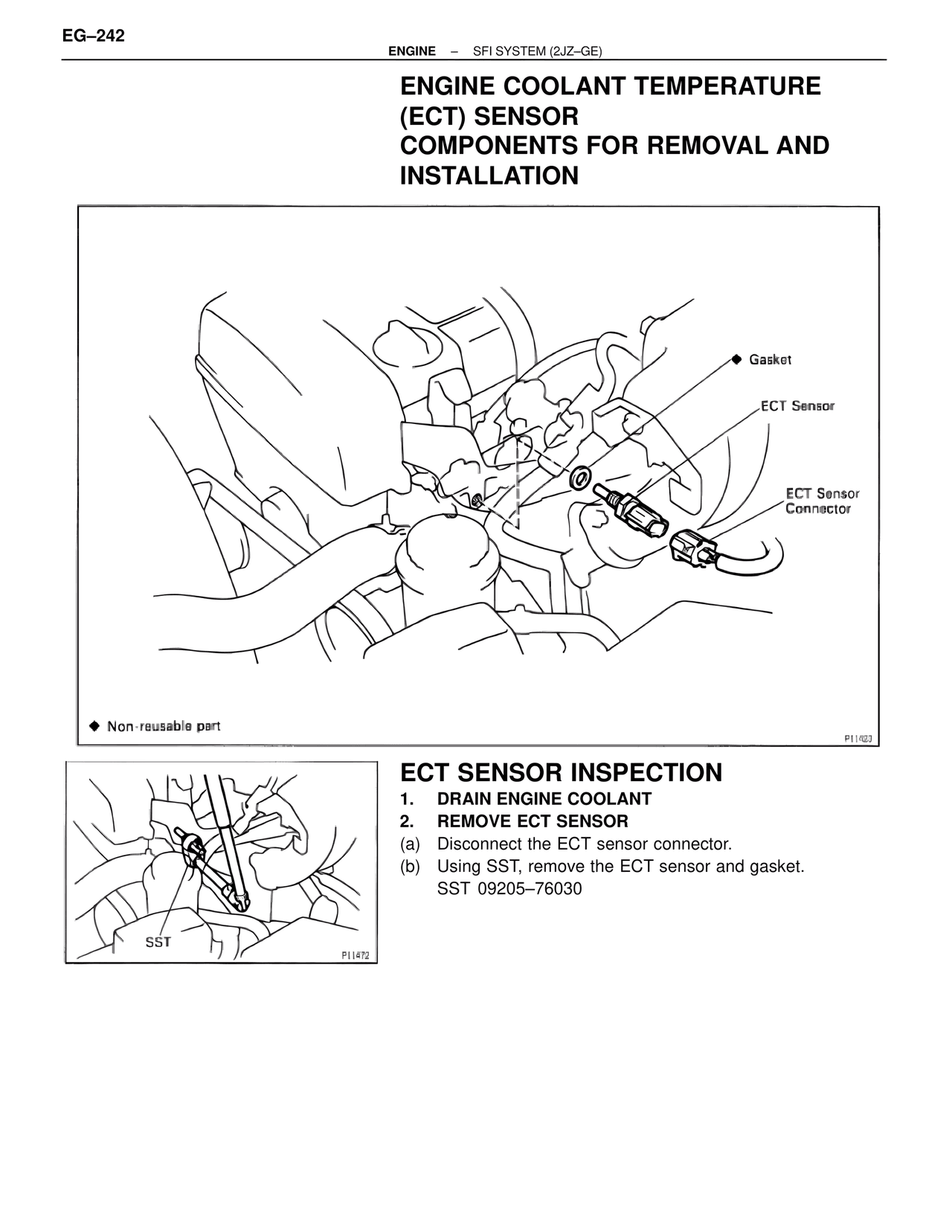

EG-242
ENGINE  –  SFI SYSTEM (2JZ–GE)

ENGINE COOLANT TEMPERATURE
(ECT) SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

♦ Gasket
ECT Sensor
ECT Sensor
Connector

♦ Non-reusable part
P11423

SST
P11472

ECT SENSOR INSPECTION
1.    DRAIN ENGINE COOLANT
2.    REMOVE ECT SENSOR
(a)  Disconnect the ECT sensor connector.
(b)  Using SST, remove the ECT sensor and gasket.
      SST 09205–76030
