SFGE/SFI System 2JZ-GE — Sub Heated Oxygen Sensor (California only) Components for Removal and Installation, page 64

EG–250
ENGINE – SFI SYSTEM (2JZ–GE)

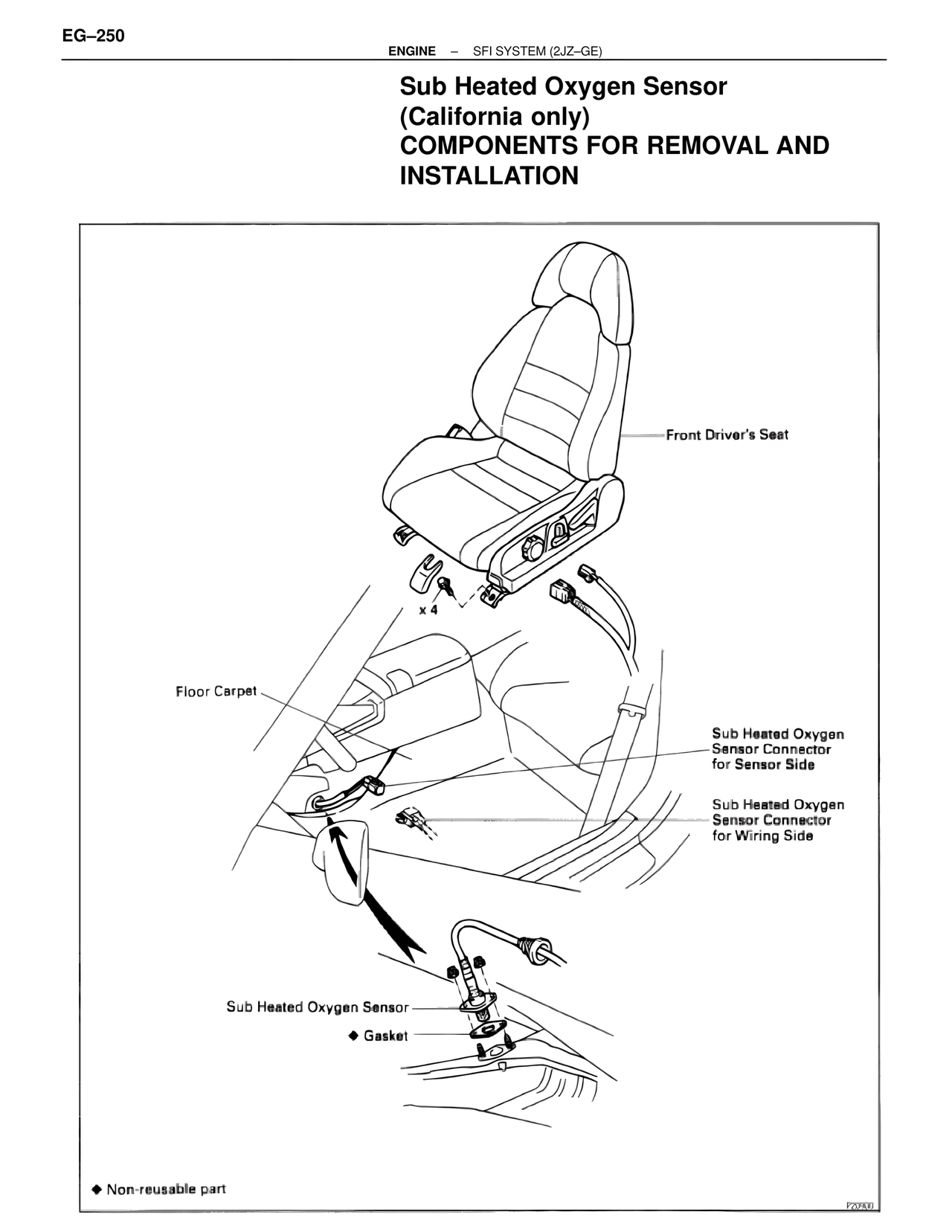

Sub Heated Oxygen Sensor
(California only)
COMPONENTS FOR REMOVAL AND
INSTALLATION

Front Driver's Seat

x 4

Floor Carpet

Sub Heated Oxygen
Sensor Connector
for Sensor Side

Sub Heated Oxygen
Sensor Connector
for Wiring Side

Sub Heated Oxygen Sensor
◆ Gasket

◆ Non-reusable part

F29500
