ENGINE  –  SFI SYSTEM (2JZ-GE)
EG–195

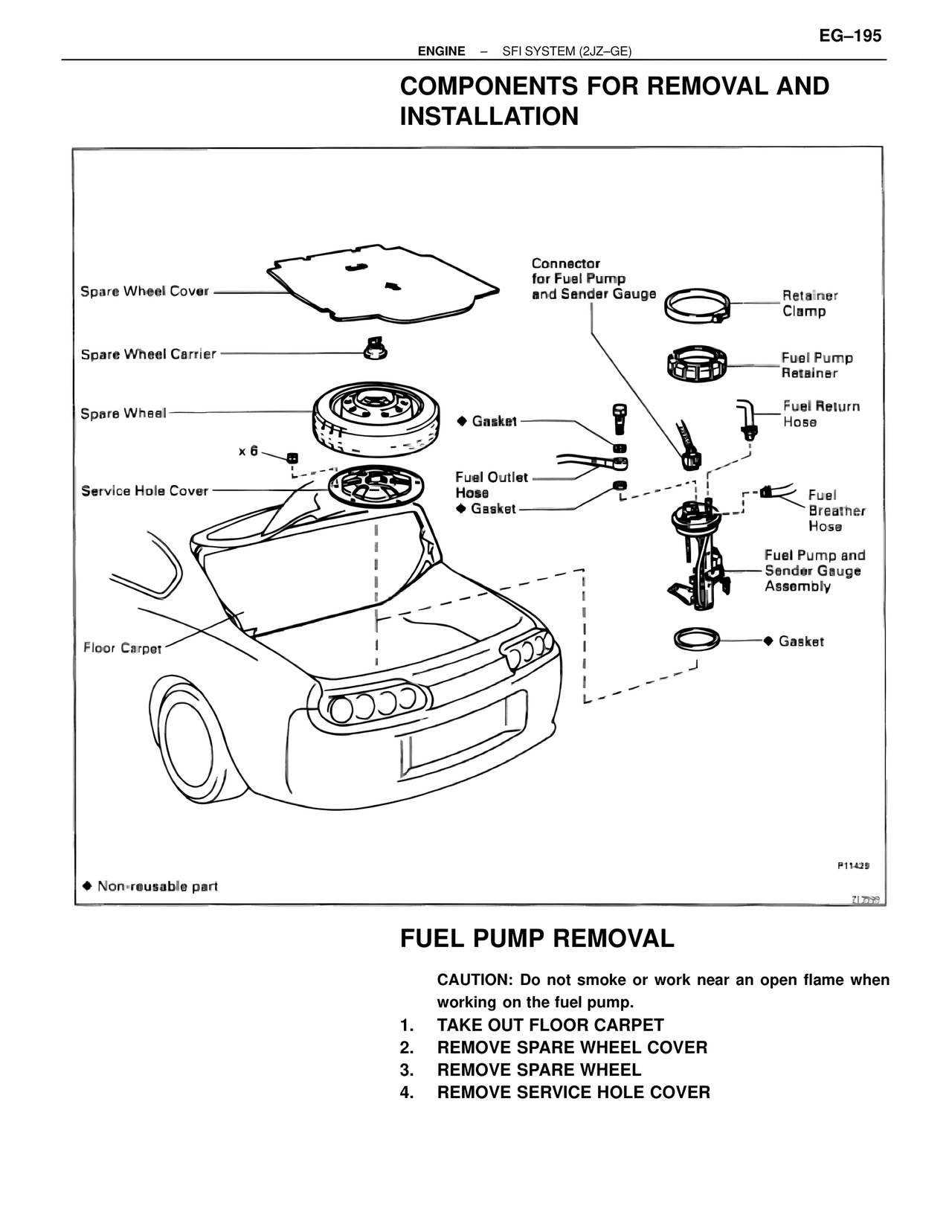

COMPONENTS FOR REMOVAL AND
INSTALLATION

Spare Wheel Cover
Connector
for Fuel Pump
and Sender Gauge
Retainer
Clamp
Spare Wheel Carrier
Fuel Pump
Retainer
Spare Wheel
Fuel Return
Hose
♦ Gasket
x 6
Fuel Outlet
Hose
Service Hole Cover
Fuel
Breather
Hose
♦ Gasket
Fuel Pump and
Sender Gauge
Assembly
Floor Carpet
♦ Gasket

P11429
ZL7599

♦ Non-reusable part

FUEL PUMP REMOVAL

CAUTION: Do not smoke or work near an open flame when
working on the fuel pump.
1.  TAKE OUT FLOOR CARPET
2.  REMOVE SPARE WHEEL COVER
3.  REMOVE SPARE WHEEL
4.  REMOVE SERVICE HOLE COVER
