EG–274
ENGINE – SFI SYSTEM (2JZ–GTE)

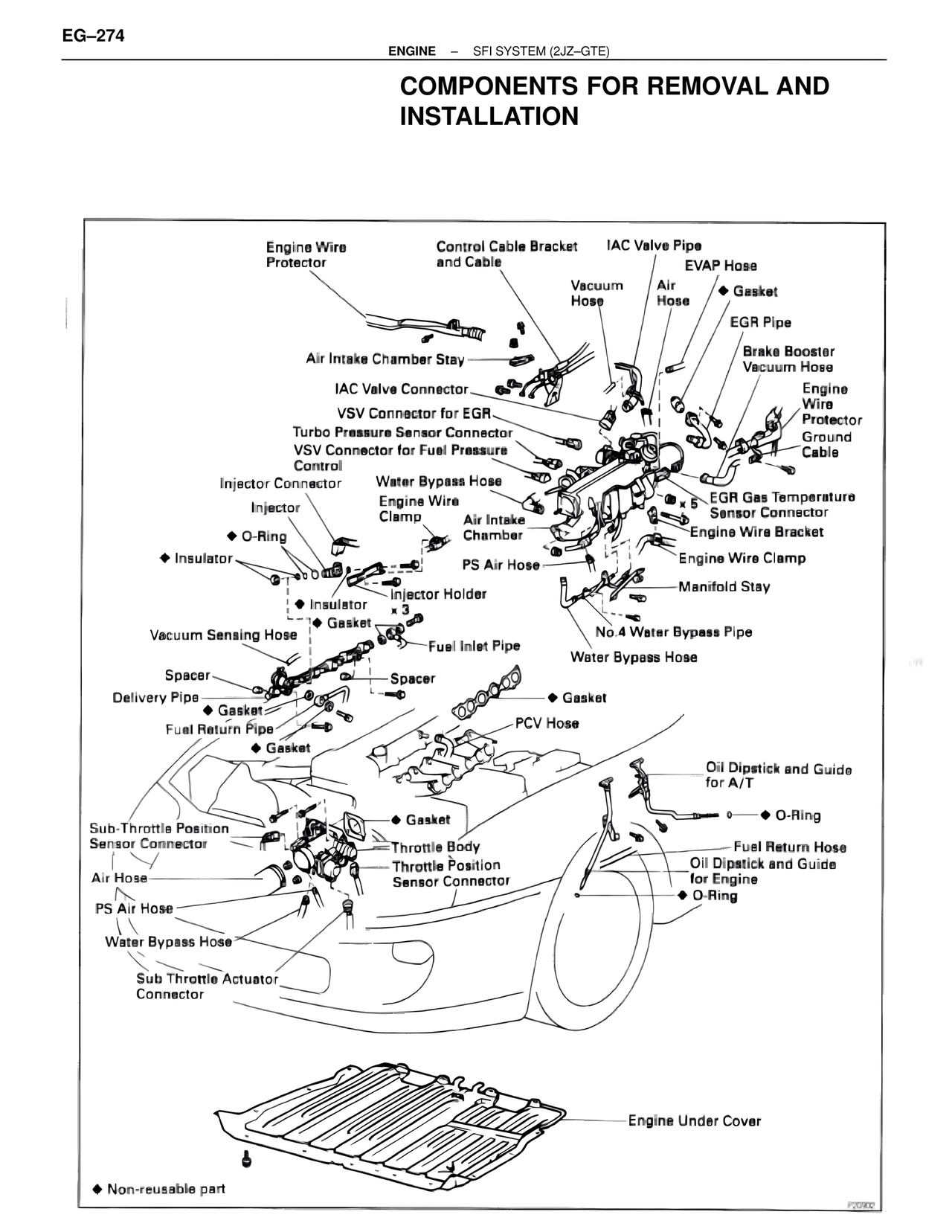

COMPONENTS FOR REMOVAL AND
INSTALLATION
Engine Wire Protector
Control Cable Bracket and Cable
IAC Valve Pipe
EVAP Hose
Vacuum Hose
Air Hose
♦ Gasket
EGR Pipe
Brake Booster Vacuum Hose
Engine Wire Protector
Ground Cable
Air Intake Chamber Stay
IAC Valve Connector
VSV Connector for EGR
Turbo Pressure Sensor Connector
VSV Connector for Fuel Pressure Control
Injector Connector
Water Bypass Hose
Engine Wire Clamp
Air Intake Chamber
EGR Gas Temperature Sensor Connector
Engine Wire Bracket
Engine Wire Clamp
Manifold Stay
Injector
♦ O-Ring
♦ Insulator
♦ Insulator
♦ Gasket
PS Air Hose
Injector Holder x 3
No.4 Water Bypass Pipe
Water Bypass Hose
Vacuum Sensing Hose
Fuel Inlet Pipe
Spacer
Spacer
Delivery Pipe
♦ Gasket
Fuel Return Pipe
♦ Gasket
♦ Gasket
PCV Hose
Oil Dipstick and Guide for A/T
♦ O-Ring
Fuel Return Hose
Oil Dipstick and Guide for Engine
♦ O-Ring
Sub-Throttle Position Sensor Connector
♦ Gasket
Throttle Body
Throttle Position Sensor Connector
Air Hose
PS Air Hose
Water Bypass Hose
Sub Throttle Actuator Connector
Engine Under Cover
♦ Non-reusable part
V20K02
